ASMB-813I User Manual 22

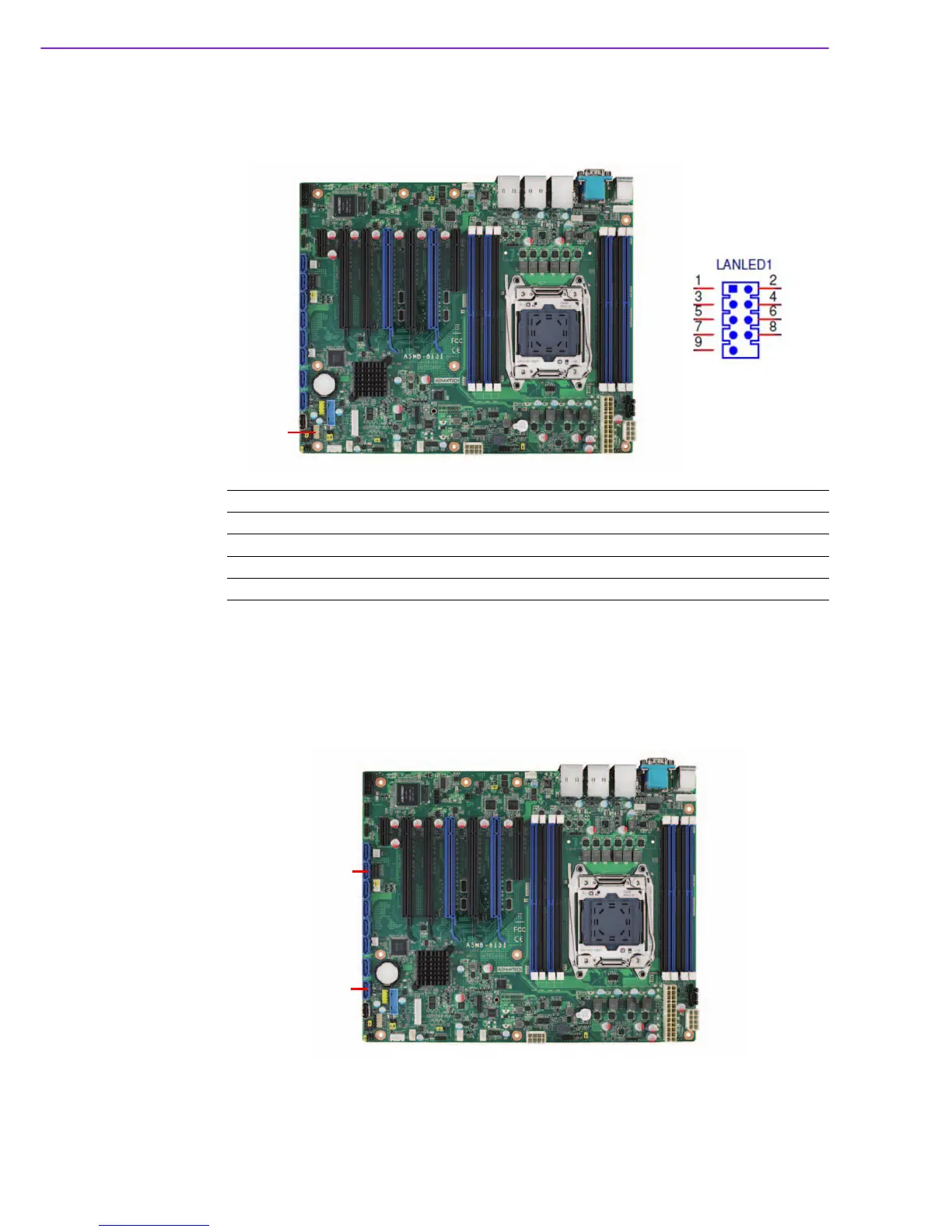

2.10 Front Panel LAN Indicator Connector
(LANLED1)
2.11 Serial ATA Interface (SATA0-SATA3, sSATA0-
sSATA3)
ASMB-813I features eight serial ATA III interfaces (up to 600 MB/s) which eases
cabling to hard drives with thin and long cables.
1 LAN1_LED0_ACT 2 LAN2_LED1_ACT
3 VCC3_LAN1LED 4 VCC3_LAN2LED
5 LAN1_LED1_1000M 6 LAN2_LED2_1000
7 LAN1_LED2_100M 8 LAN2_LED0_100
9VCC3 10NC
LANLED1
SATA0~3
sSATA0~3
