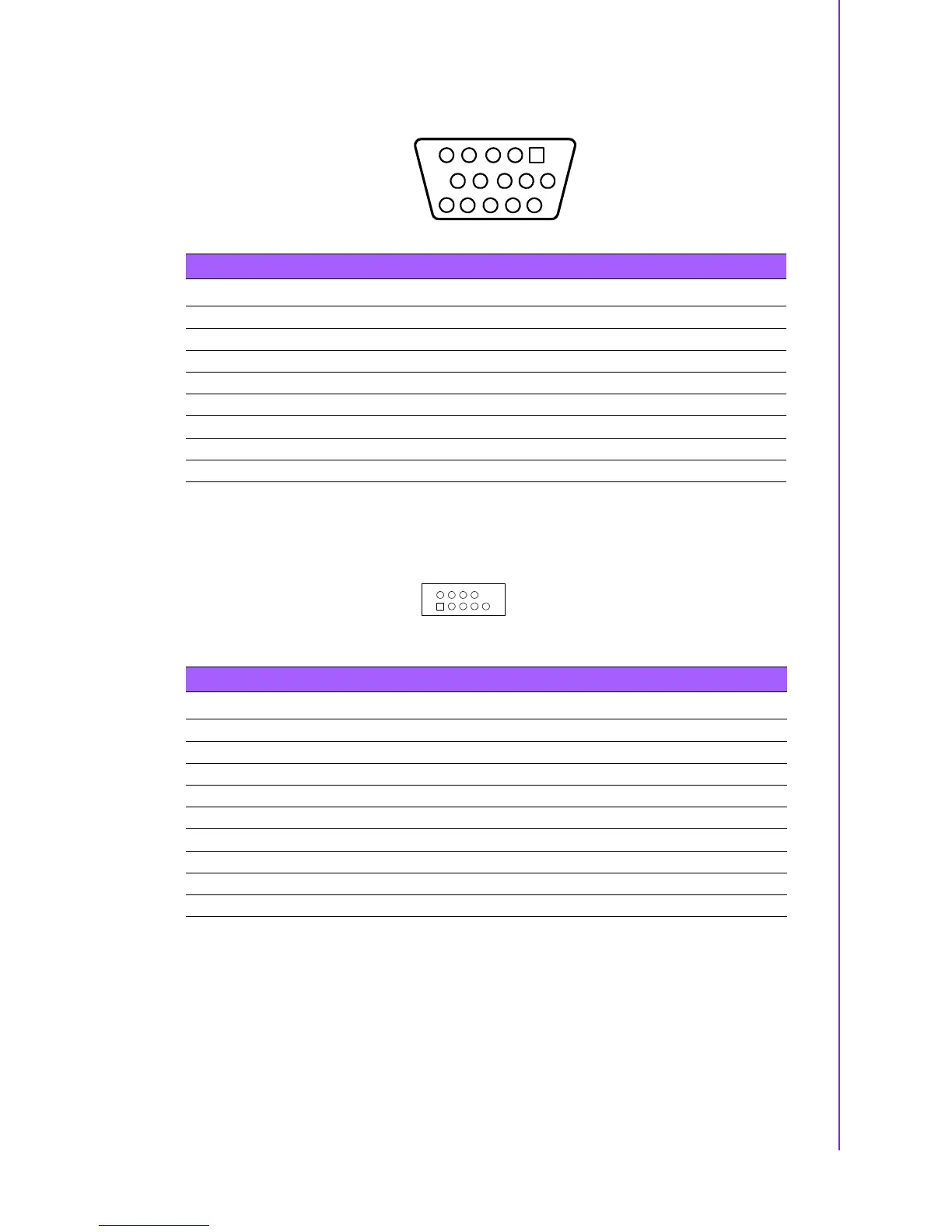

Appendix B I/O Pin Assignments

B.3 VGA Connector (VGA1)

B.4 RS-232 Interface (COM2)

Table B.3: VGA Connector (VGA1)

Pin Signal Pin Signal

1RED 9VCC

2 GREEN 10 GND

3BLUE 11N/C

4N/C 12SDT

5 GND 13 H-SYNC

6 GND 14 V-SYNC

7GND 15SCK

8GND

10 6

Table B.4: RS-232 Interface (COM2)

Pin Signal

1 DCD

2RXD

3TXD

4DTR

5GND

6DSR

7RTS

8CTS

9RI

1 2

6 9
