23 ASMB-813I User Manual
Chapter 2 Connections

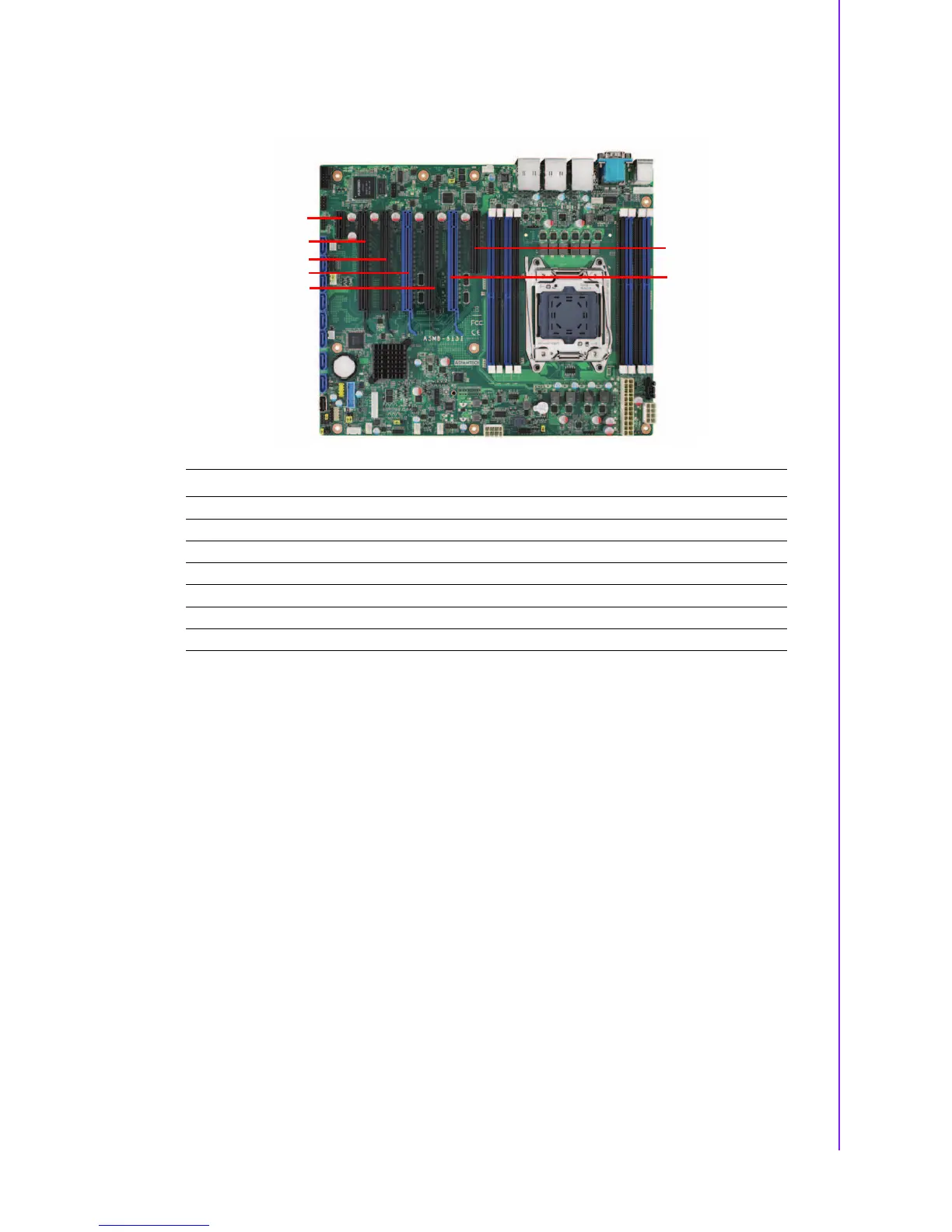

2.12 PCIe & PCI Expansion Slots
The ASMB-813I provides several expansion slots.
Slot Length Link PCI-E Generation PCIe link provide from
SLOT1 PCI-E x1 PCI-E x1 2 PCH
SLOT2 PCI-E x16 PCI-E x8 3 CPU
SLOT3 PCI-E x16 PCI-E x8 3 CPU
SLOT4 PCI-E x16 PCI-E x16 3 CPU
SLOT5 PCI-E x16 PCI-E x8 3 CPU
SLOT6 PCI-E x16 PCI-E x16 3 CPU
SLOT7 PCI-E x8 PCI-E x4 2 PCH
PCIEx1_SLOT1
PCIEx8_SLOT2
PCIEx8_SLOT3
PCIEx16_SLOT4
PCIEx8_SLOT5
PCIEx16_SLOT6
PCIEx4_SLOT7
