ASMB-813I User Manual 88

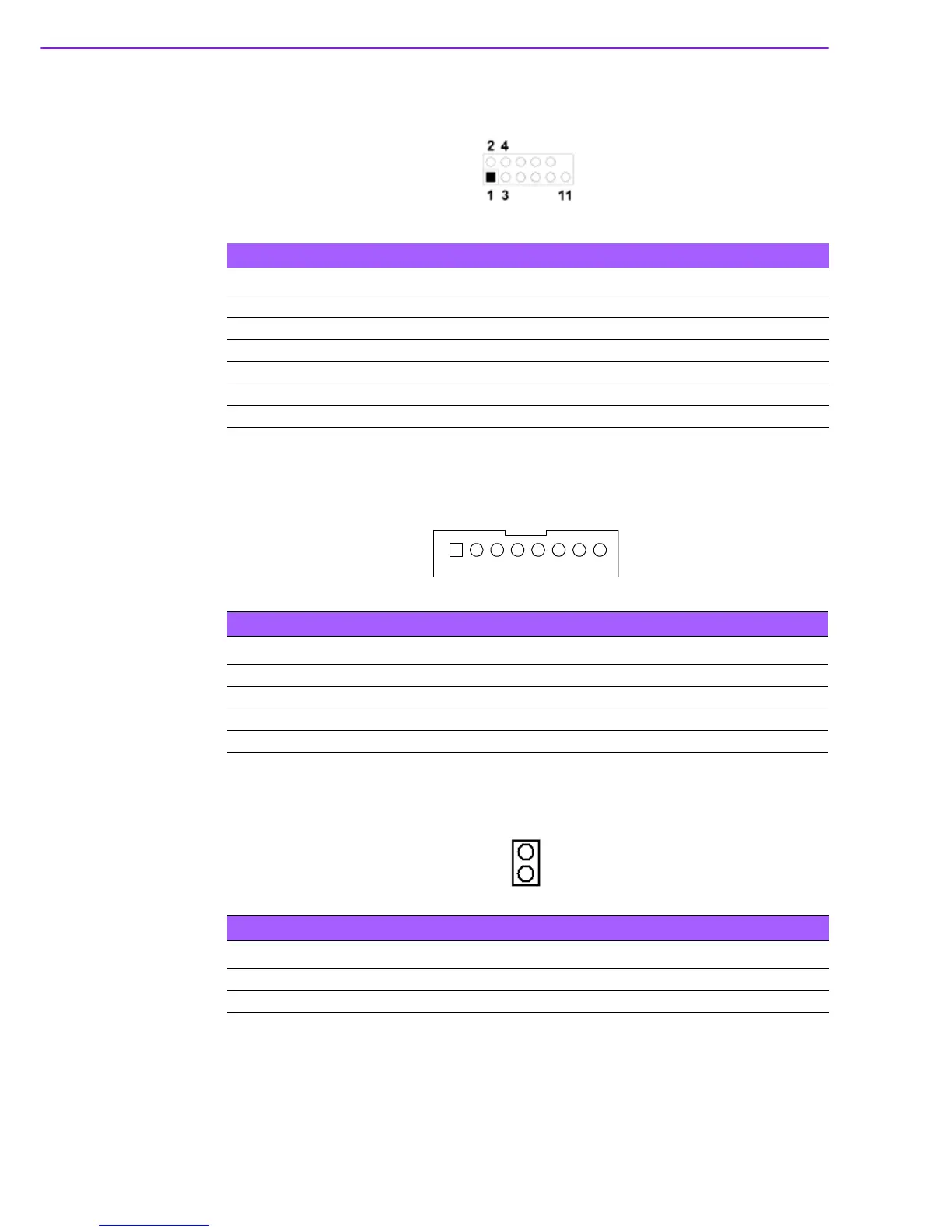

B.14 Audio Connector (HDAUD1)

B.15 8-pin Alarm Board Connector (VOLT1)

B.16 Case Open Connector (JFP1)

Table B.14: Front Panel Audio Connector (FPAUD1)

Pin Signal Pin Signal

1 ACZ_VCC 2 GND

3 ACZ_SYNC 4 ACZ_BITCLK

5 ACZ_SDOUT 6 ACZ_SDIN0

7 ACZ_SDIN1 8 ACZ_RST

9 ACZ_12V 10 GND

11 GND 12 N/C

Table B.15: 8-pin Alarm Board Connector (VOLT1)

Pin Signal Pin Signal

15VSB 5+5V

2 GND 6 +3.3V

3GND 7-12V

4 -5V 8 +12V

1 8

Table B.16: Case Open Connector (JFP1)

Pin Signal

1 CASEOP

2GND
