ASMB-813I User Manual 16
2.1 Introduction
You can access most of the connectors from the top of the board as it is being
installed in the chassis. If you have a number of cards installed, you may need to par-
tially remove a card to make all the connections.
2.2 USB Ports and LAN Ports (USB0~USB11/LAN1/
LAN2/IPMI_LAN1)
The USB ports comply with USB 2.0 & 3.0. Transmission rates could be up to 480
Mbps (USB 2.0) / 5Gbps (USB 3.0) and fuse protection are supported. The USB
interface can be disabled in the system BIOS setup.
The ASMB-813I is equipped with two high-performance 1000 Mbps Ethernet LANs.
They are supported by all major network operating systems. The RJ-45 jacks on the
rear plate provide convenient 1000Base-T operation. One is shared with IPMI for
system management.

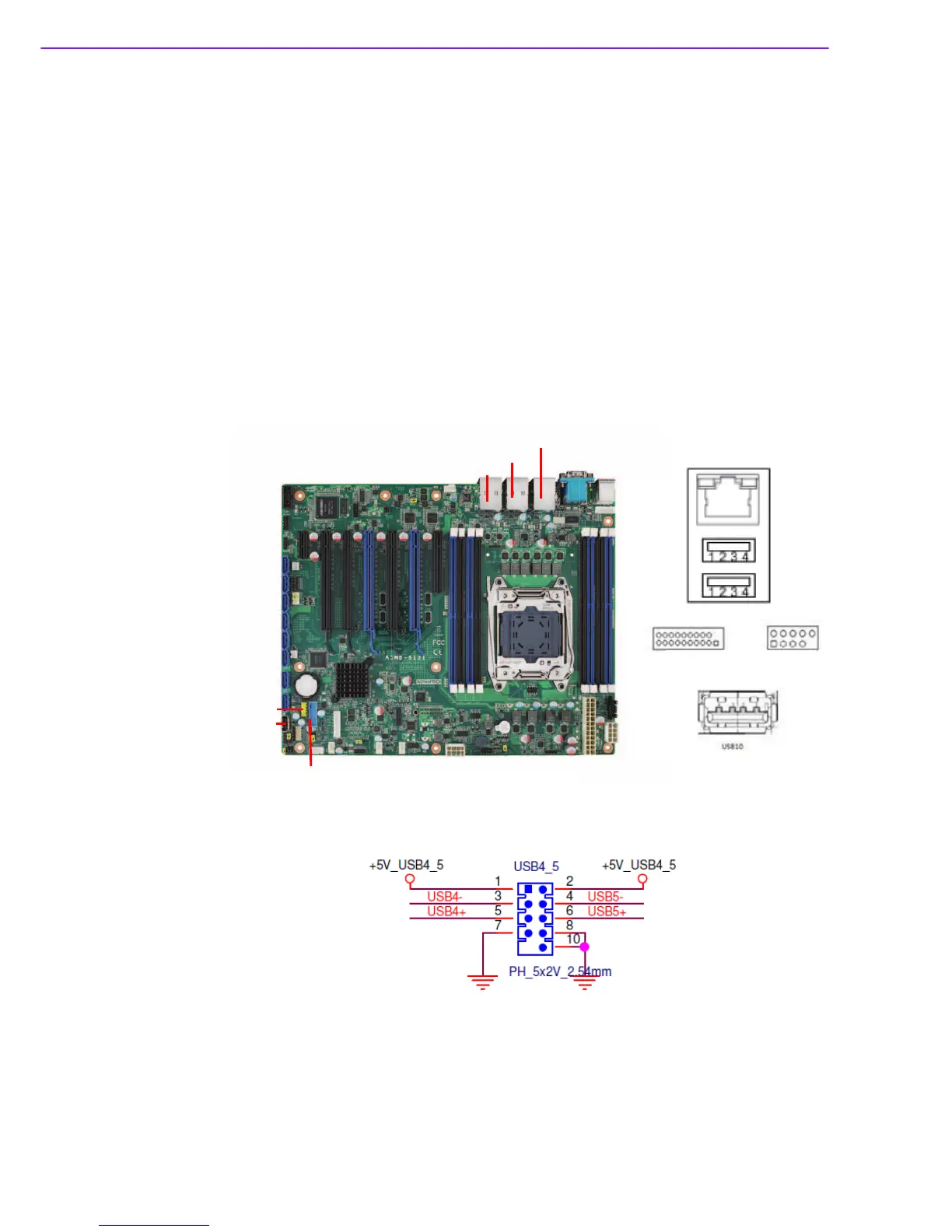

Example: USB8_9
