ASMB-813I User Manual 18

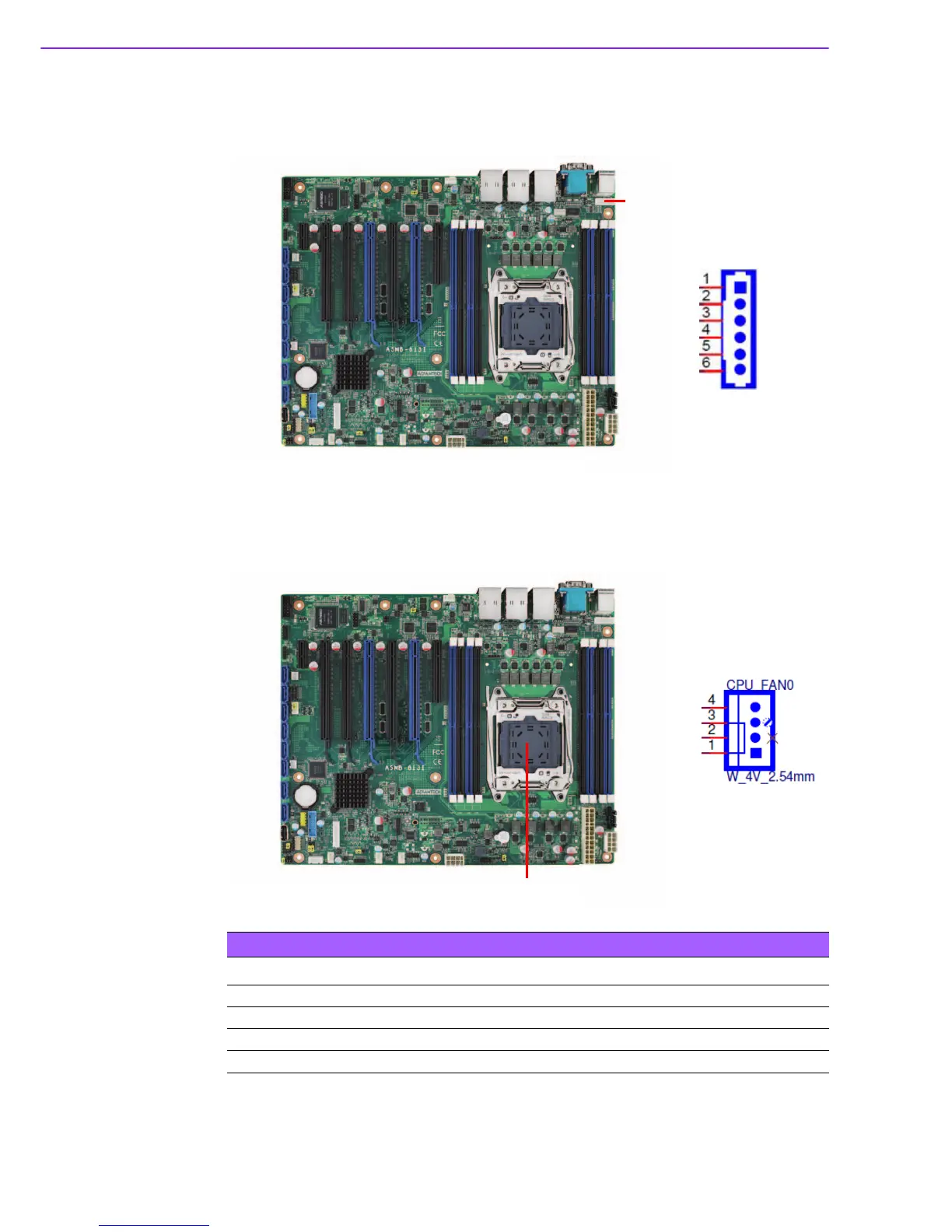

2.5 PS2 Keyboard and Mouse Connectors (KBMS2)
The 6-pin KBMS2 connector is for additional keyboard & mouse device usage.
2.6 CPU Fan Connector (CPU FAN0)
If a fan is used, this connector supports cooling fans that draw up to 1.5A (18W).
KBMS2
Table 2.1: CPU FAN0 Pin Definition
CPU FAN0 CPU FAN1
1 GND GND
2 +12V +12V
3 CPU0_TACH CPU1_TACH
4 CPU0_PWM CPU1_PWM
CPUFAN0
