ASMB-813I User Manual 84

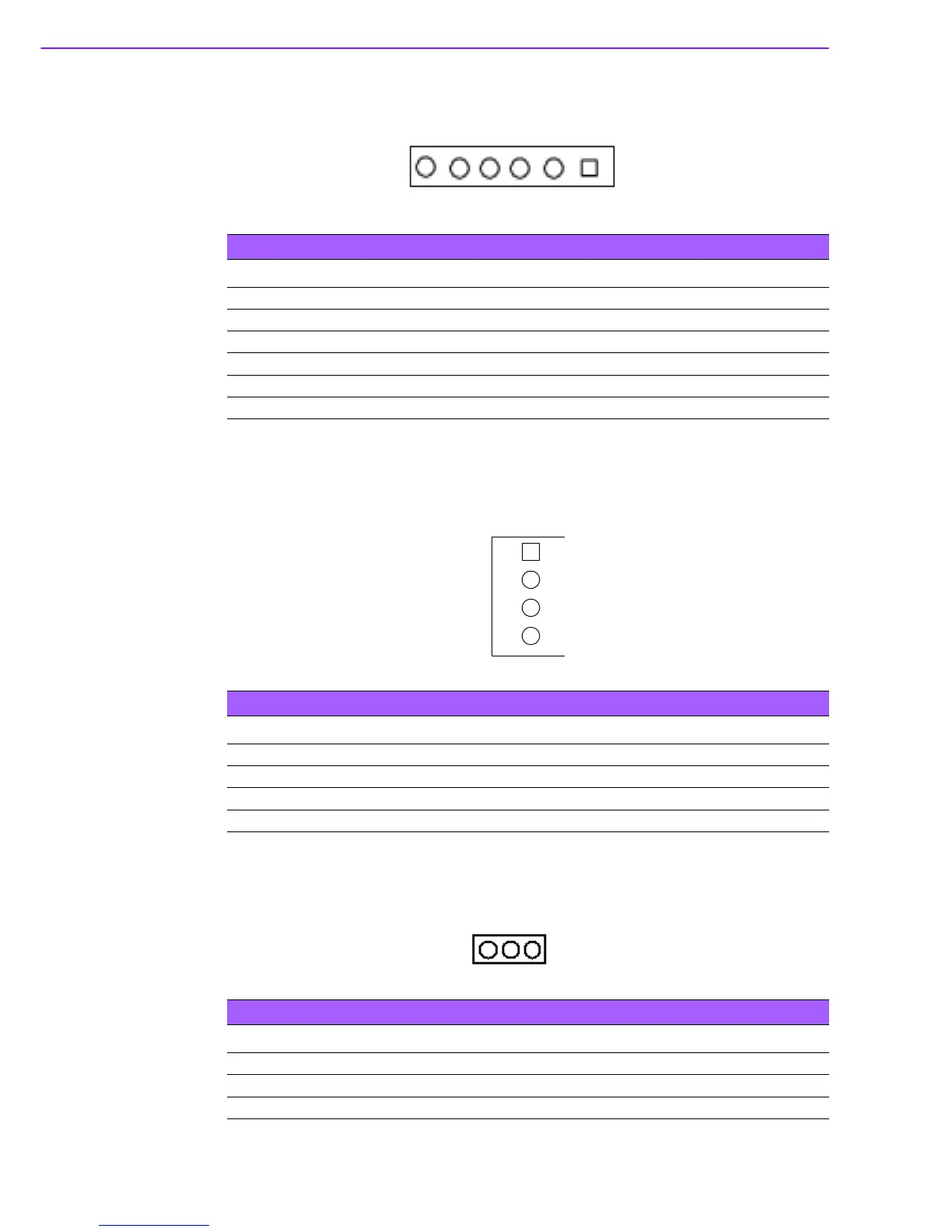

B.5 External Keyboard Connector (KBMS2)

B.6 System & CPU Fan Power Connector

(SYSFAN0~2, CPUFAN0)

B.7 Power LED (JFP3)

Table B.5: External Keyboard Connector (KBMS2)

Pin Signal

1 KB CLK

2 KB DATA

3MS DATA

4GND

5VCC

6 MS CLK

Table B.6: Fan Power Connector (SYSFAN0~2, CPUFAN0)

Pin Signal

1GND

2 +12 V

3 DETECT

4PWM

Table B.7: Power LED (JFP3)

Pin Function

1 LED power (3.3 V)

2NC

3Ground

1 2 3
