ASMB-813I User Manual 28

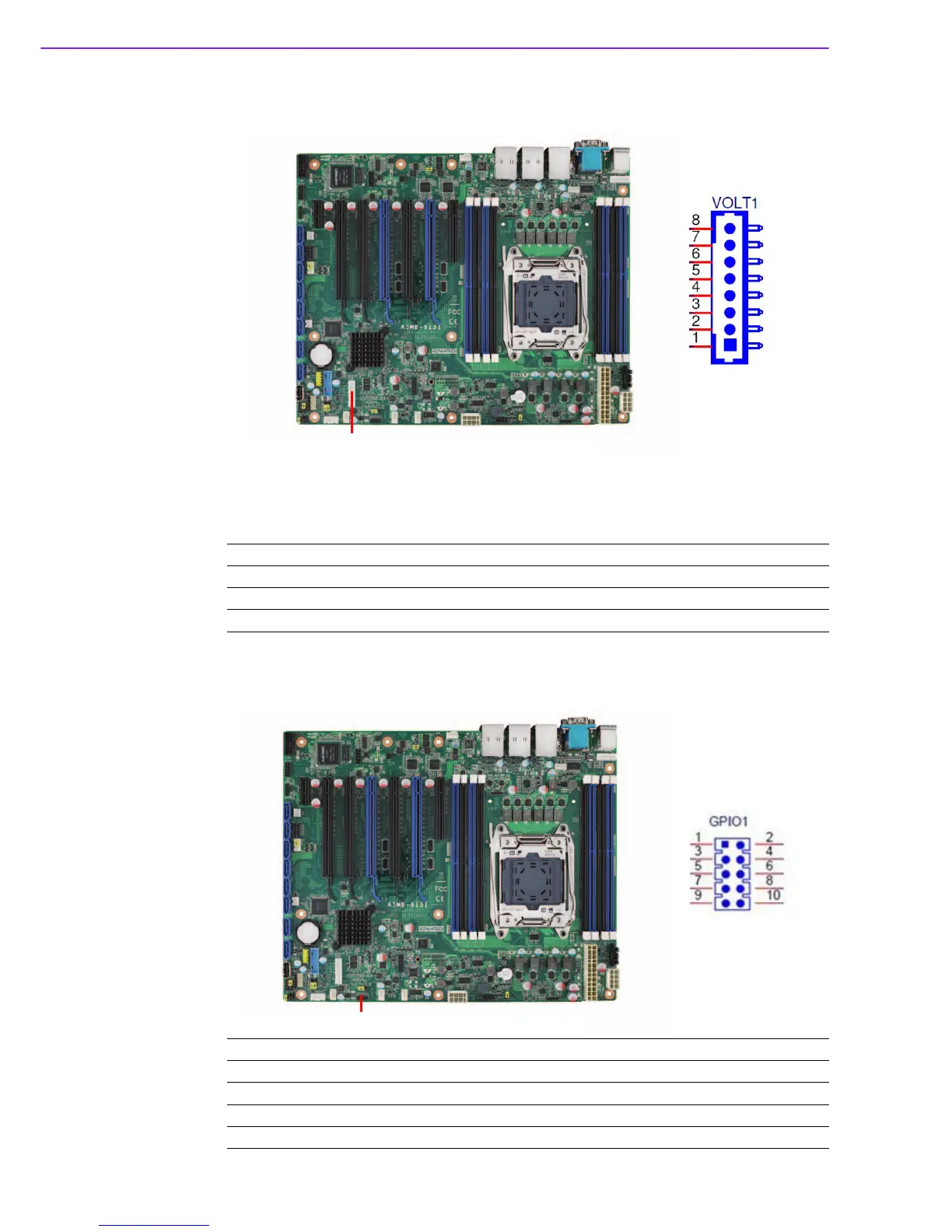

2.20 VOLT1 Connector

VOLT1 connects to the alarm board of Advantech chassis. These alarm boards give

warnings if a power supply or fan fails, if the chassis overheats, or if the backplane

malfunctions.

2.21 GPIO Connector (GPIO1)

15VSB 5+5V

2GND 6+3.3V

3GND 7-12V

4-5V 8+12V

VOLT1

1 SIO_GPIO0 2 SIO_GPIO4

3 SIO_GPIO1 4 SIO_GPIO5

5 SIO_GPIO2 6 SIO_GPIO6

7 SIO_GPIO3 8 SIO_GPIO7

9 VCC_GPIO0 10 GND

GPIO1
