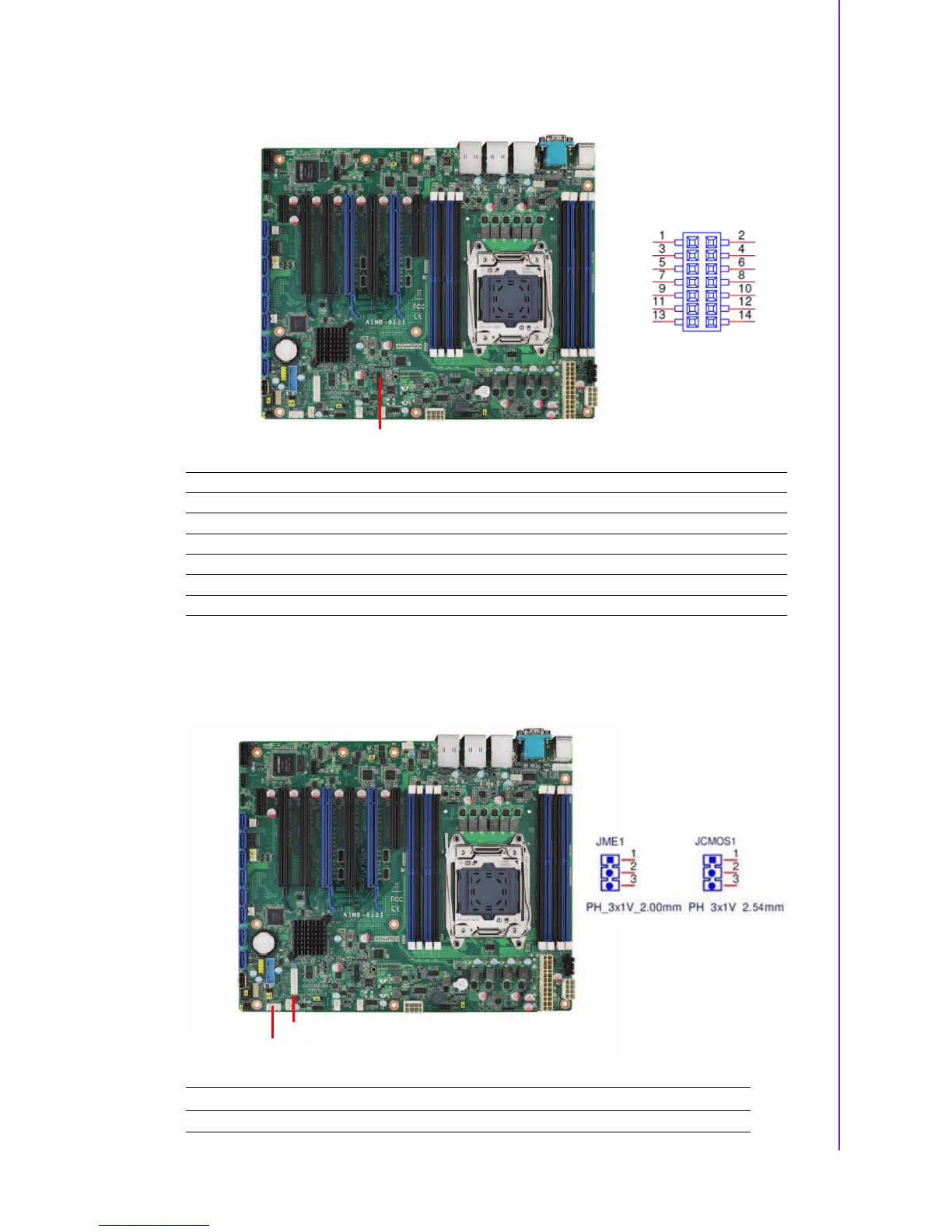

25 ASMB-813I User Manual

Chapter 2 Connections

2.15 LPC Connector (LPC1) for Optional TPM Module

2.16 Clear CMOS Connector (JCMOS1, JME1)

Setting jumper from pin 1_2 to pin 2_3,then back to pin 1_2 to reset CMOS data.

1 CLK_33M_TPM 2 LPC_AD1

3 PLTRST_LPC 4 LPC_AD0

5 LPC_FRAME 6 +3.3 V

7 LPC_AD3 8 GND

9 LPC_AD2 10 SMB_SCL_LPC

11 SERIRQ_PCH 12 SMB_SDA_LPC

13 +5V_AUX 14 +5V

LPC1

JCMOS1 JME1

1 SRTC_RST_PCH NC

JCMOS1

JTHR_WSEL1/JME1
