53 ASMB-813I User Manual
Chapter 3 AMI BIOS
PCI-E ASPM Support
This item is to set the ASPM level. [Auto]: BIOS auto configure; [Force L0s]:
Force all links to L0s state; [Disable]: To disable ASPM. Extended Synch If this
item is set to [Enable], allows generation of extended synchronization patterns.
VGA Priority
Determines priority between onboard and 1st off-board video device found.

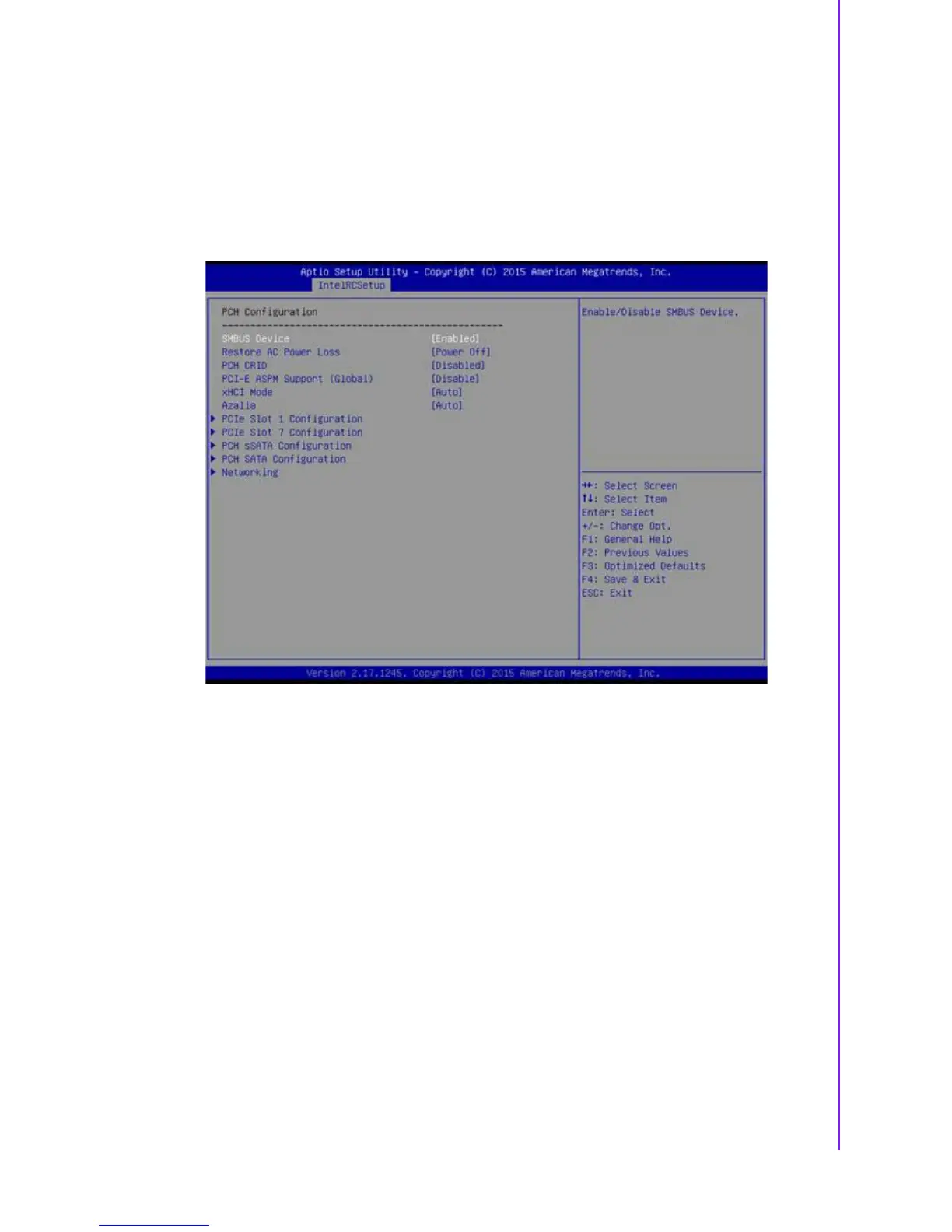

3.2.3.6 PCH Configuration
SMBus Controller
Enable/Disable SMBus controller.
Restore AC Power Loss
Specify what state to go to when power is re-applied after a power failure (G3
state).
PCH Compatibility RID
Enable/Disable PCH Compatibility Revision ID (CRID) Functionality.
PCI-E ASPM Support
To set ASPM level for PCI Express.
XHCI Mode
Mode of operation of XHCI controller.
Azalia HD Audio
Enable/Disable Azalia HD audio function.
PCIe Slot 1/7 Configuration
To enable or disable PCI Express Slot 1/7 and select target link speed as Gen1,
Gen2.
