Advantech EKI-1528-DR - CE Version Specifications

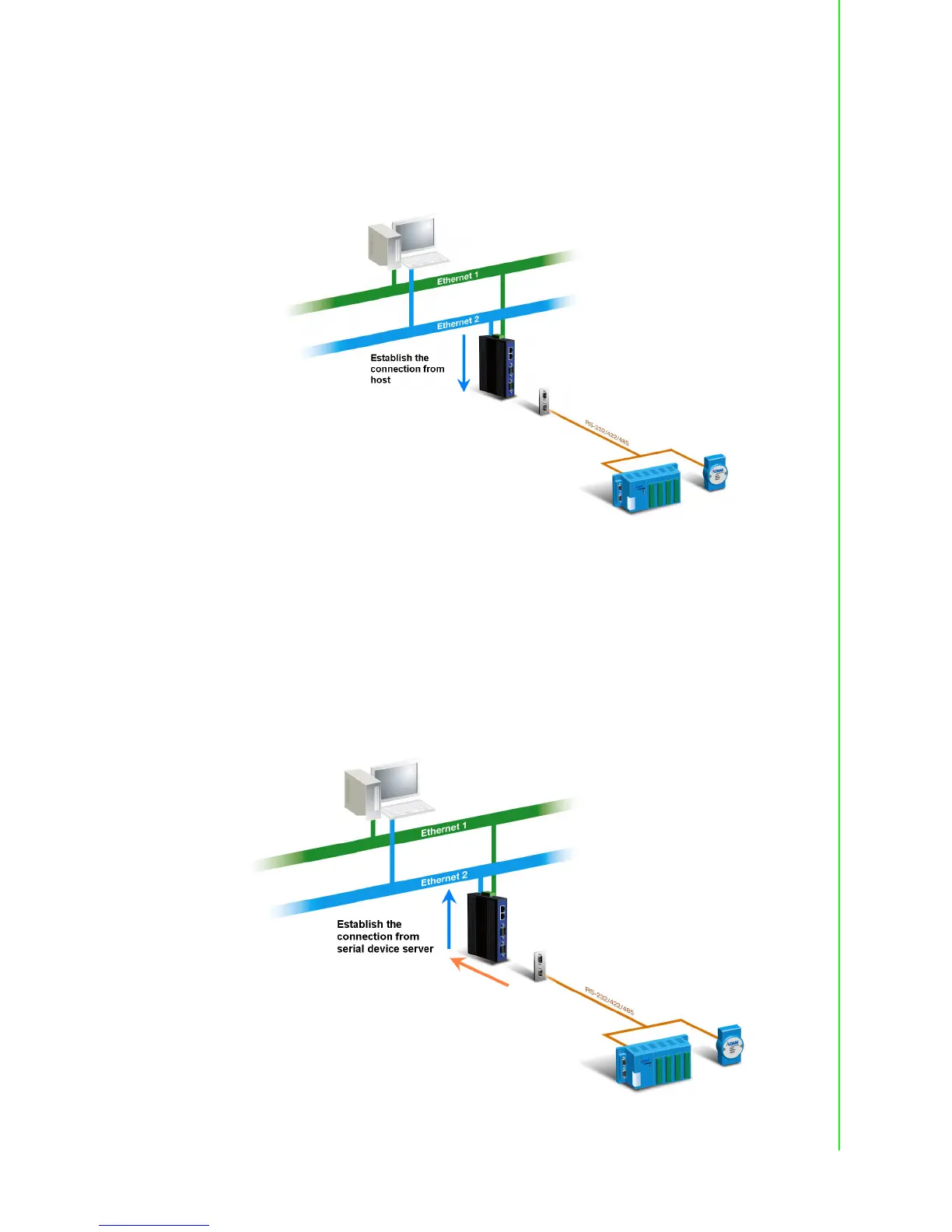

EKI-1500 Series User Manual 4
2.1 CE Version Specifications
Specifications Description
Interface I/O Port
 EKI-1521-CE: 2 x RJ45 + 1 x RS-232/422/485
 EKI-1521I-CE: 2 x RJ45 + 1 x RS-232/422/485
 EKI-1522-CE: 2 x RJ45 + 2 x RS-232/422/485
 EKI-1522I-CE: 2 x RJ45 + 2 x RS-232/422/485
 EKI-1524-CE: 2 x RJ45 + 4 x RS-232/422/485
 EKI-1524I-CE: 2 x RJ45 + 4 x RS-232/422/485
 EKI-1524CI-CE: 2 x RJ45 + 4 x RS-422/485
Power Connector Terminal block
Physical Enclosure Metal with solid mounting hardware
Installation DIN-Rail and Wall mount
Dimensions
(W x H x D)
EKI-1521/EKI-1522:
30 x 140 x 95mm (1.18" x 5.51" x 3.74")
EKI-1524: 42 x 140 x 95mm (1.65" x 5.51" x 3.74")
LED Display System LED Power 1, Power 2, Status
Port LED LAN: Speed, Link/Active
Serial: Tx, Rx
Environment Operating
Temperature
EKI-1521/EKI-1522/EKI-1524:
-10°C ~ 60°C (14°F ~ 140°F)
‘CI & I’ models: -40°C ~ 75°C (-40°F ~ 167°F)
Storage
Temperature
-40°C ~ 85°C (-40°F ~ 185°F)
Ambient Relative
Humidity
10 ~ 95% RH
Ethernet
Communications
Compatibility IEEE 802.3, IEEE 802.3u
Speed 10/100 Mbps
Port Connector 8-pin RJ45
Protection Built-in 1.5 KV magnetic isolation
Serial
Communications
Port Type RS-232/422/485, software selectable
Port Connector DB9 male
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Odd, Even, Space, Mark
Flow Control XON/XOFF, RTS/CTS
Baud Rate 50 bps ~ 921.6 kbps, any baud rate setting
Protection Built-in 15 KV ESD for all signals
'CI' models: 2KV Isolation for RS-422/485 signals
Power Power
Consumption
 EKI-1521: 3.2W
 EKI-1522: 3.2W
 EKI-1524: 4.1W
Power Input 12 ~ 48V
DC
, redundant dual inputs
