75 EKI-1500 Series User Manual
7.2.2 Input the IP address
Confirm that the Telnet console configuration works ok. Be sure that your host PC
Ethernet network IP domain is as same as the EKI-1500 Series device server, and
the Telnet TCP port number is “23”.
Figure 7.2 Creating a Telnet Connection
7.2.3 Connection Success
After connecting to the serial device server in HyperTerminal console, a welcome
greeting displays.

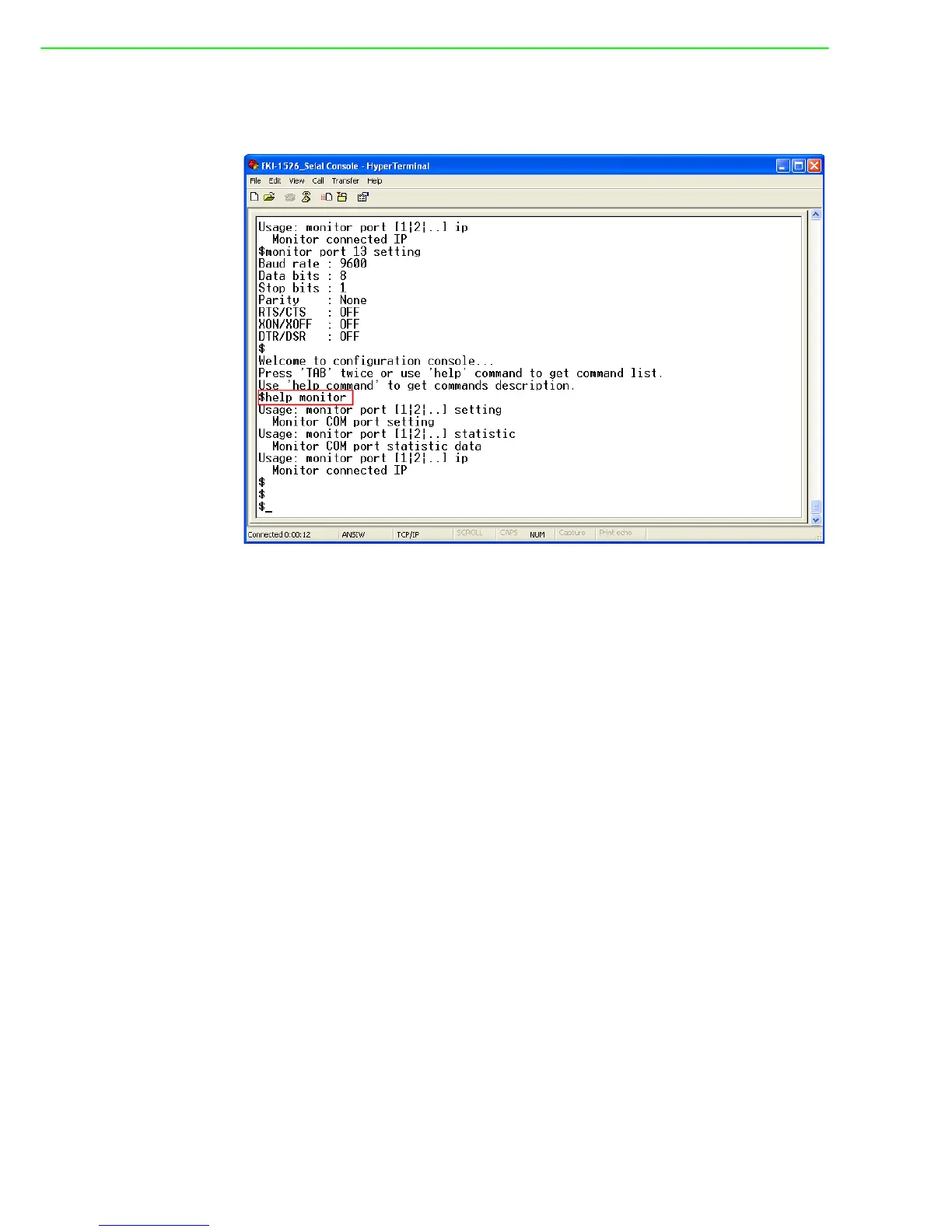

Figure 7.3 Telnet Connection Console
At the command prompt, you can type a “help” followed by the Enter button, or <Tab>
twice, to display the command list.
You can toggle between the different command menu options.
