AED Saver One - Description of device details

AUTOMATIC
13
4 Description of device details

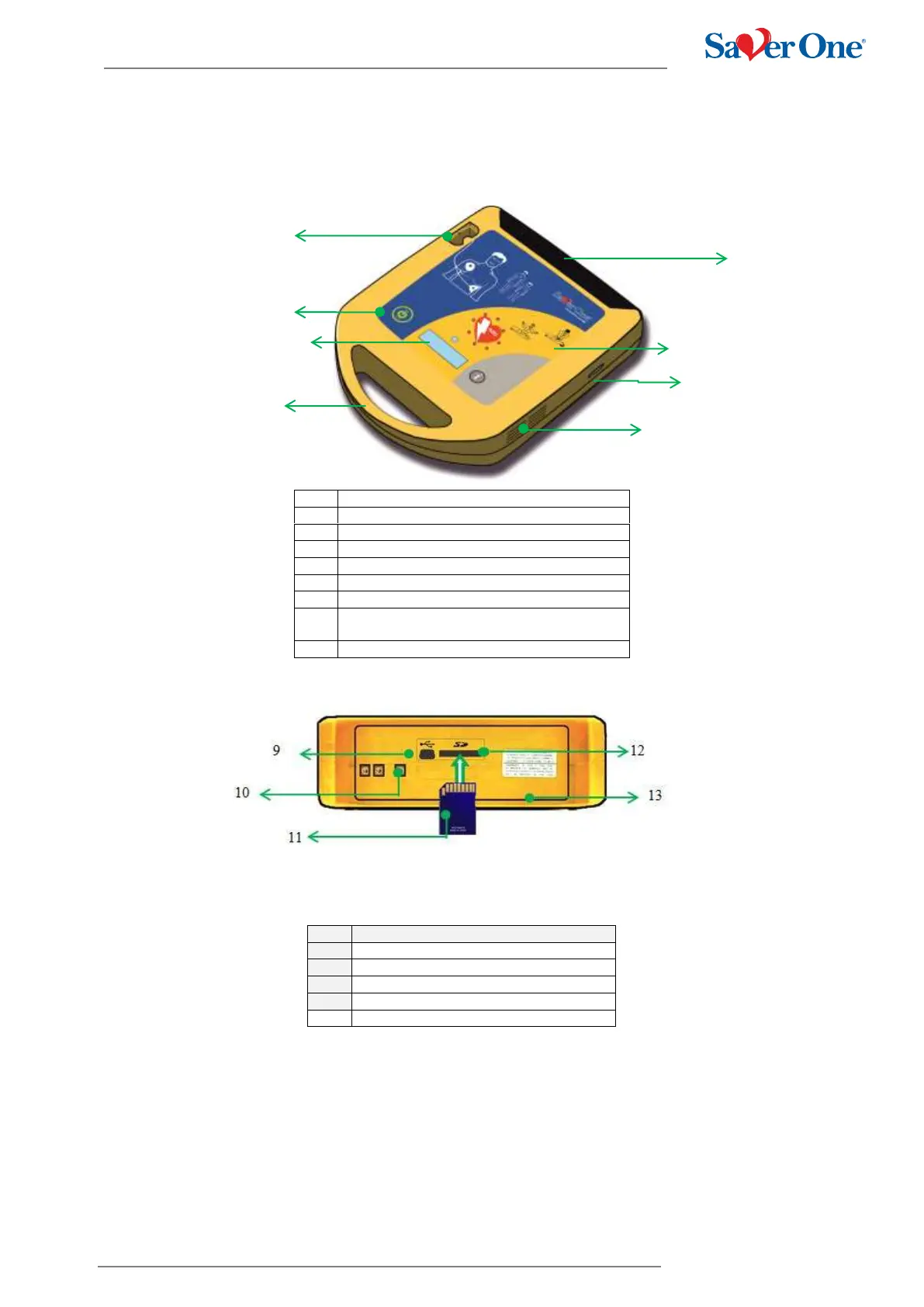

4.1 General structure of the device
Nr.
Description
1
Compartment for PADS connector or ECG cable
2
Microphone for environmental recordings
3
Status mini display
4
Carrying handle
5
Battery compartment
6
Keyboard with buttons and light icons
7
IrDA port (service only, present only in the
models with TFT display)
8
Loudspeaker
Nr.
Description
9
USB port
10
Battery contact tabs
11
SD Memory Card insertion
12
SD Memory Card port
13
Gasket
1
Image 2
Image 1
1
2
4
3
5
6
7
8
