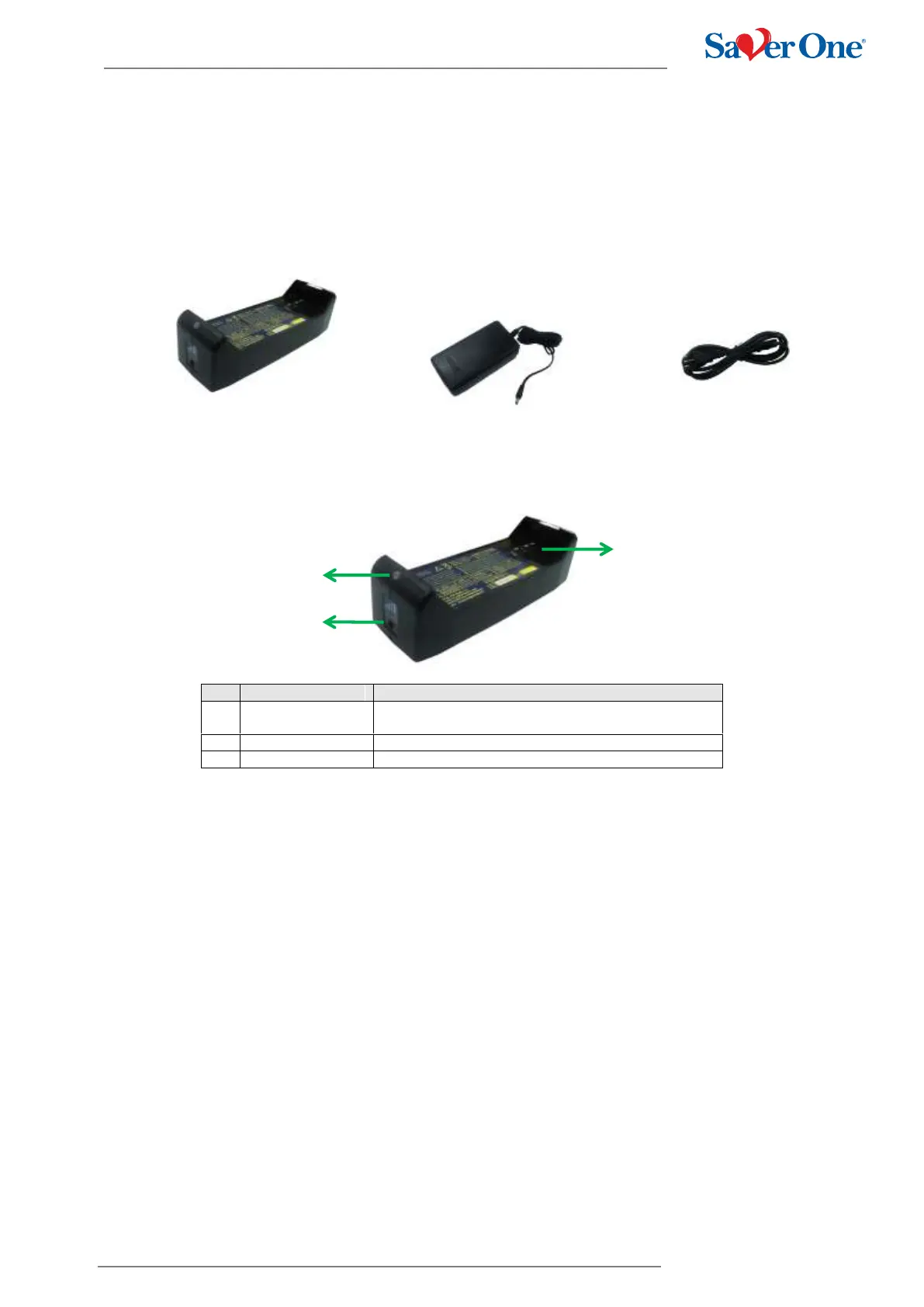

5.2 Recharging station for rechargeable batteries
The charging station (SAV-C0013) allows you to recharge rechargeable batteries with Li-ion technology ACC model
(SAV-C0011) of the Saver One. The charging station consists of the following parts:
 Charger (SAV-C0012) image (10)
 AC/DC power supply/adapter model GS40A15-P1J (SAV-C0013) image (11)
 Power cable with three-pole Italian plug (SAV-C0366) image (12)
5.2.1 Structure of the battery charger
Nr.
Description
Function
1
Charger LED
Indicates the battery charge level or the functional status of
battery charger
2
Supply
Input for 12V, 5A power supply connector
3
Battery contacts
Contacts for energy exchange between charger and battery
The Battery Charger (SAV-C0012) must only be used with the AC/DC power supply/adapter supplied by A.M.I. Italia
S.r.l. model GS40A15-P1J of Meanwell (SAV-C0013).
The battery charger (SAV-C0012) and the relative power supply unit (SAV-C0013) are not certified under the
supervision of the IMQ notified entity, therefore they do not fall into the EC certificate no.1104 / MDD. Furthermore,
these devices do not have the IMQ mark; therefore they are not indicated in the IMQ certificate no. CA10.00185.
Image 10
Image 11
Image 12
Image 13
1
2
3
