AERMEC HBI 080 - Outdoor Unit Dimensions and Clearances

16
HBI. 1011. 4138500_00
2
1
2
1
Chiller connection Connections
diameter
1 Liquid side service valve 3/8"
2 Gas side service valve 5/8"
Chiller connection Connections
diameter
1 Liquid side service valve 3/8"
2 Gas side service valve 5/8"

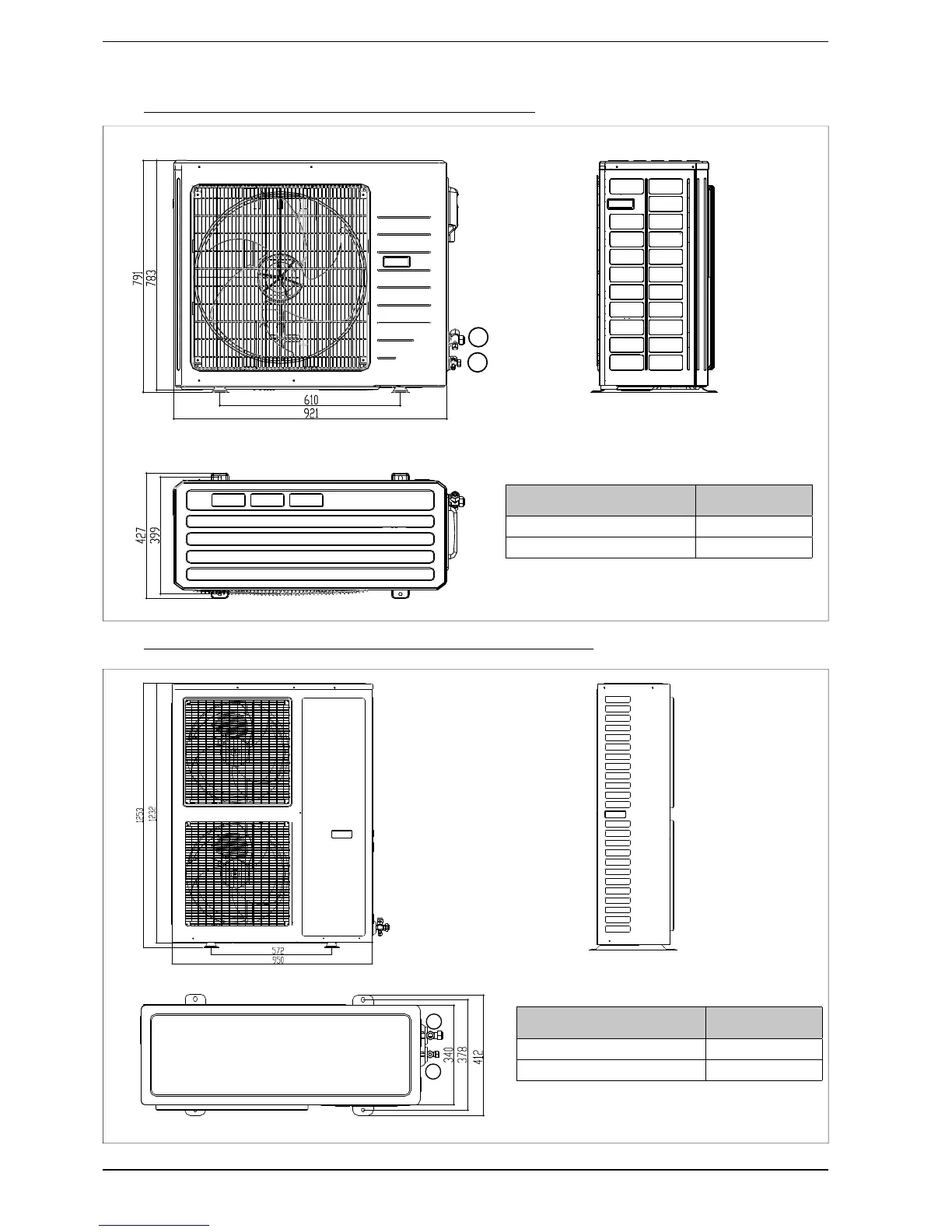

10. OUTDOOR UNIT DIMENSIONS
10.1. OUTDOOR UNIT CLEARANCE (HBI080C - HBI100C)
10.2. OUTDOOR UNIT CLEARANCE (HBI120C - HBI140C - HBI160C)
