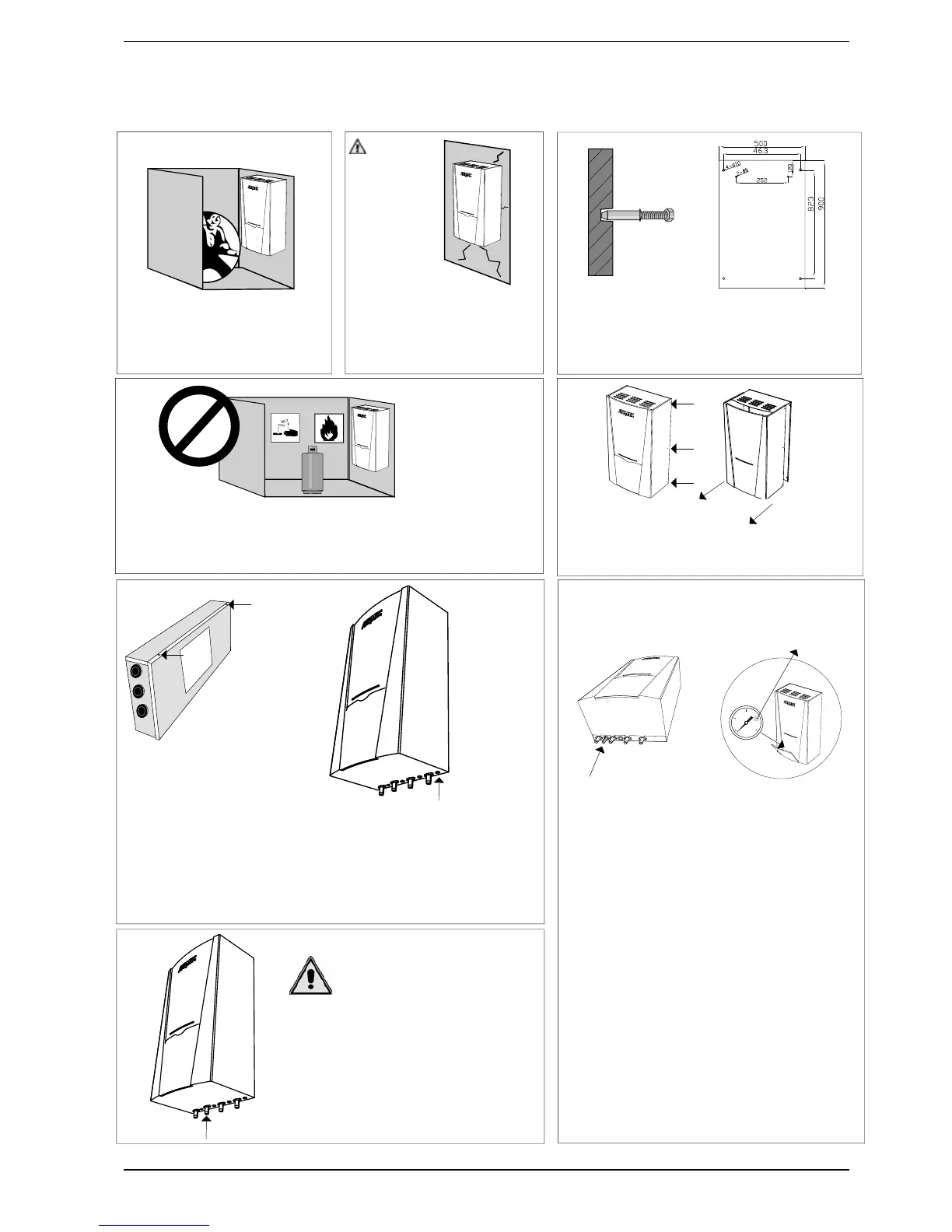

11. GUIDE LINES FOR INSTALLATION OF THE INDOOR UNIT
Select the position where the unit is to be installed depending on the layout of the room, any architectonic
limits and customer requirements.
Identify the exact position for the Rawplugs
Make sure that the hang rod, the
ceiling and the building structure
are suffi ciently resistant to support
the weight of the air conditioning
unit.
ATTENTION
Respecting minimum technical
spaces in order to allow the pas-
sage of air and any maintenance
to be performed.
Do not install in a place where in-
fl ammable or explosive products are
found or where there may be leaks
of infl ammable or explosive gases.
NO
Do not install in a place subject to cor-
rosive gases, excessive dust, smoke or
excessive humidity.
Remove the cover panel.
Electrical Box Indoor Unit HBI_E
Inlet cables
Drain water
safety valve
3
2
1
04
Manometer on
the machine
Pressure limit 3bar
To access the electric box, remove the screws
positioned on the sides and slide the casing out
The working pressure of the hydraulic circuit
must be between 1 and 2 bar
In the event of pressure exceeding 3 bar, water
may leak from the drain pipe connected to the
safety valve.
It is recommended to place a container under
the unit.
If the problem persists, contact the After-sales
Service
The unit does not have a
cut-off valve or system drai-
ning unit.
It is necessary to envision
installation. Assembly is
recommended in order to
guarantee correct functio-
ning of the hydraulic plant.
