24
HBI. 1011. 4138500_00

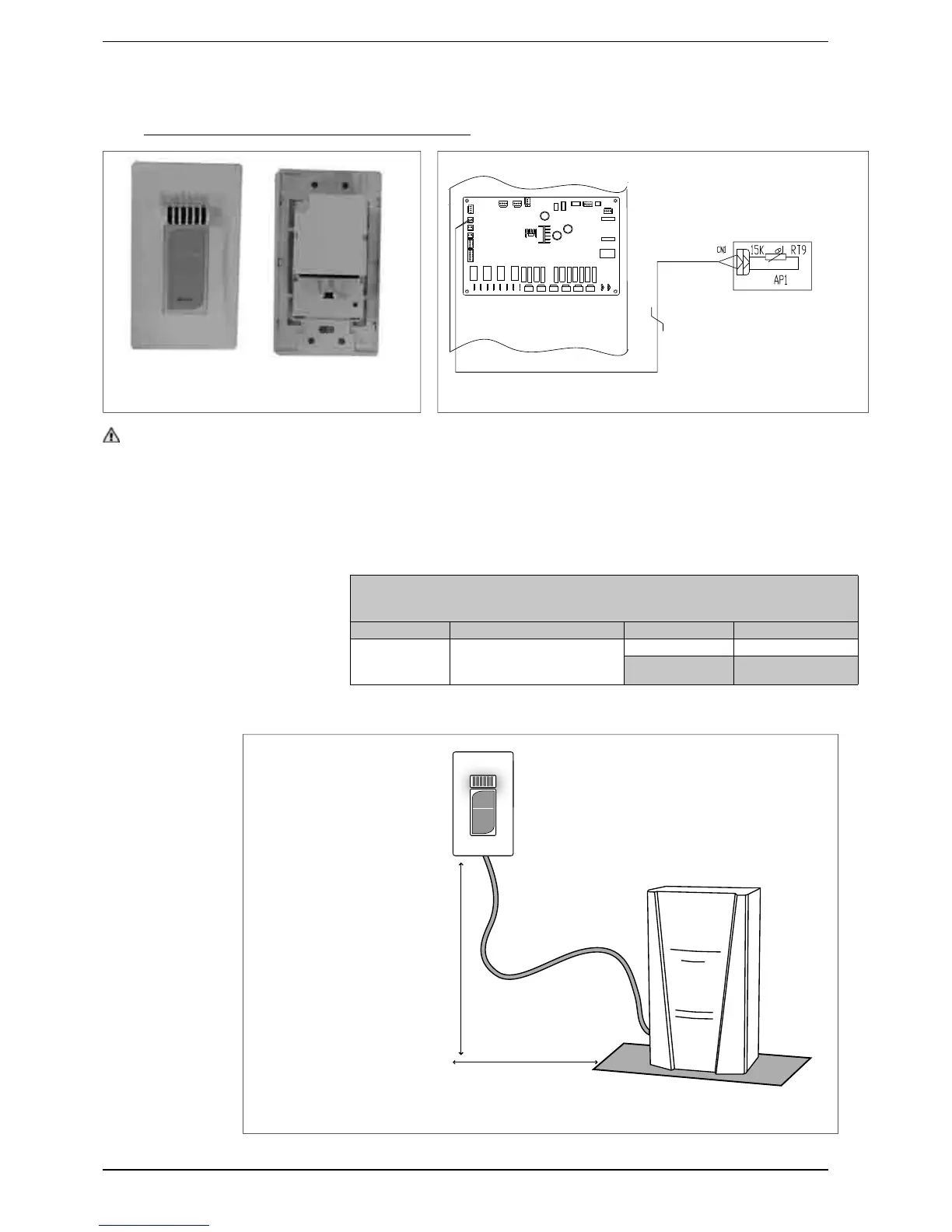

20. ACCESSORY
ATTENTION
1. The distance between the indoor unit and
the remote room temperature probe must be
less than 10 m
2. The height from the fl oor must be about 1.5.
3. The room temperature remote probe can-
not be positioned in areas that are covered
when the door is open.
4. The room temperature remote probe can-
not be positioned in areas affected by out-
door heat.
5. The room temperature remote probe must
be installed in areas where room heating is
mainly used.
6. . To activate the room temperature remo-
te probe control, once installed, act on the
control panel on the machine by setting the
parameters as indicated in the table below.
CN15
Remote Air Environment
Temp sensor
Electric box
PCB
2
Front side Rear side
lunghezza cavo
max 10 metri
Altezza dal pavimento
max 1,5 metri
Cable length
max 10 metres
Height from the
ground, max,
10 metres
This drawing is only an
example
drawing purely indicative
Set the value at 1 to activate the control of the
room temperature remote probe
Index Description Value Settings
04
This parameter indicates the
presence of a dedicated air
thermostat
0 NON INSTALLED
1 INSTALLED
20.1. ROOM TEMPERATURE REMOTE PROBE (SUPPLIED)
