Agilent Technologies 16902A Service Guide

41
Chapter 3: Testing Logic Analyzer Performance
Testing the Module Using a 16900-Series Mainframe

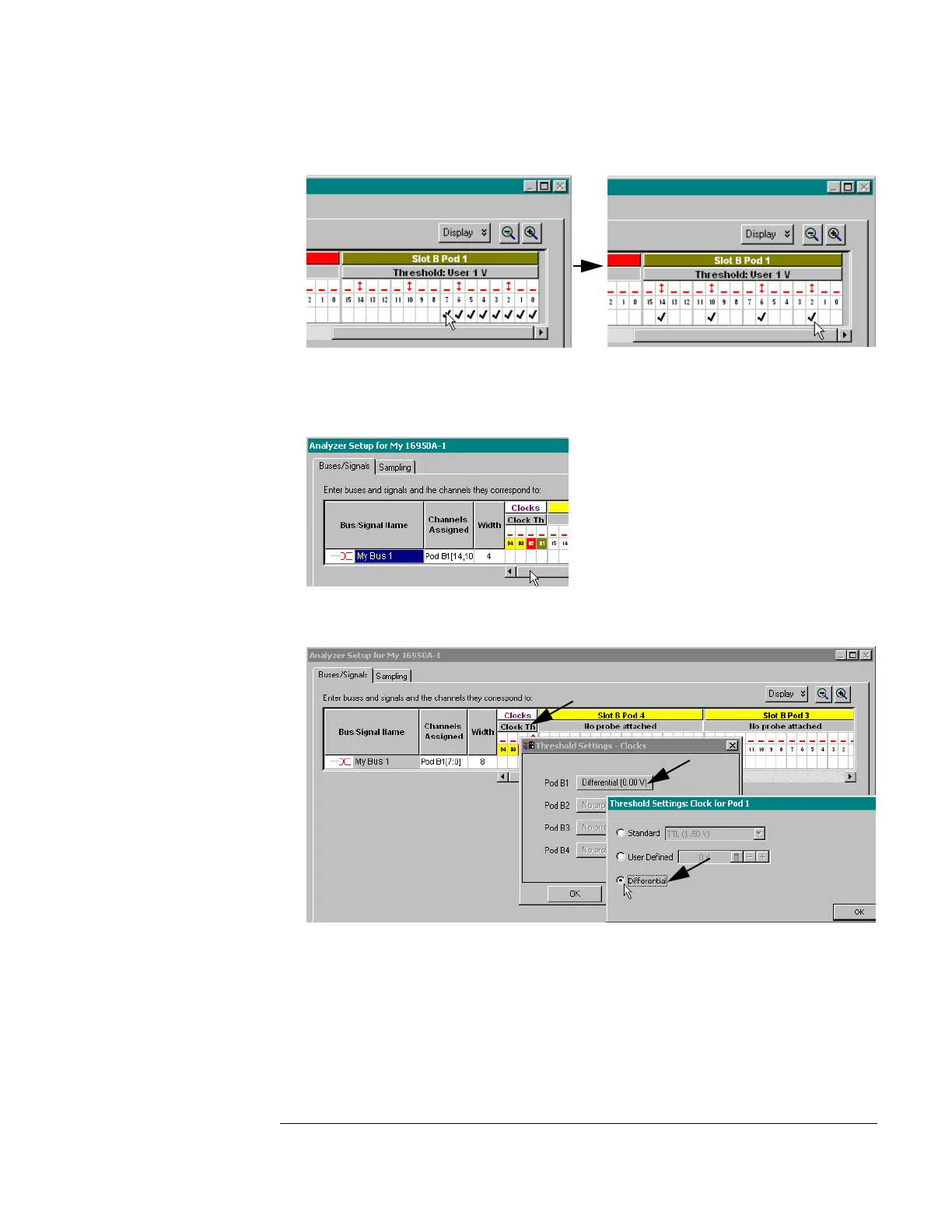

touchscreen and drag across with your finger.
e Click (or touch) to select channels 2, 6, 10 and 14 as shown in the
picture above.
f Drag the scroll bar all the way to the left.
g Select the Clock Thresholds button and set the clock threshold to
Differential. The activity indicator will show activity on clock 1.
1
2
3
