31
Chapter 1 Quick Start
To Set the Duty Cycle of a Square Wave
4
1

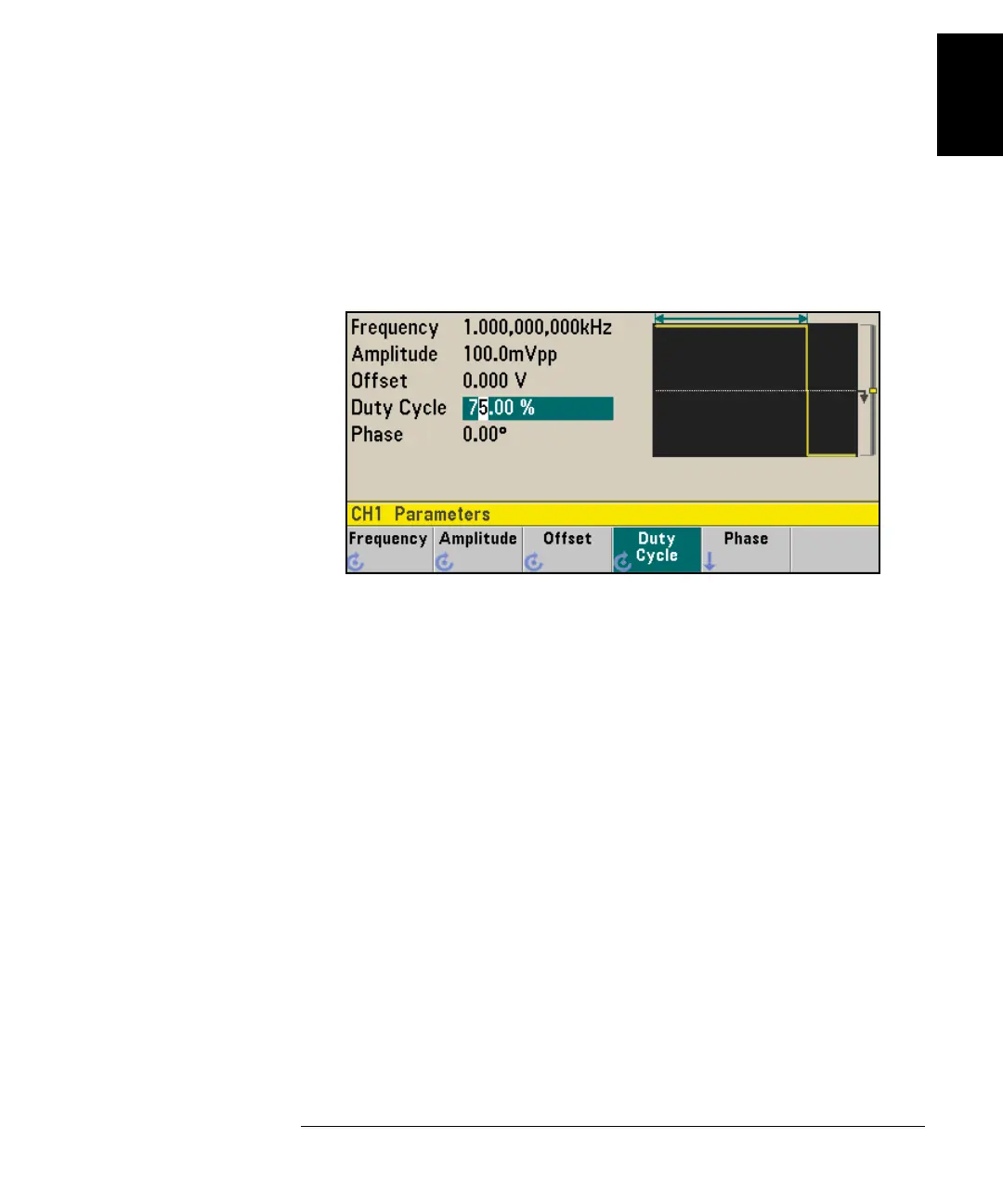

3 Enter the desired duty cycle.
Using the numeric keypad or the knob and arrows, select a duty cycle
value of “75”. If you are using the numeric keypad, press the Percent
softkey to finish the entry. The waveform generator adjusts the duty
cycle immediately and outputs a square wave with the specified value (if
the output is enabled).
