Chapter 1 Quick Start
To Set the Output Frequency
1
To Set the Output Frequency
At power-on, the waveform is configured for a sine wave at 1 kHz with an
amplitude of 100 mV peak-to-peak (into a 50 termination).
The following steps show you how to change the frequency to 1.2 MHz.

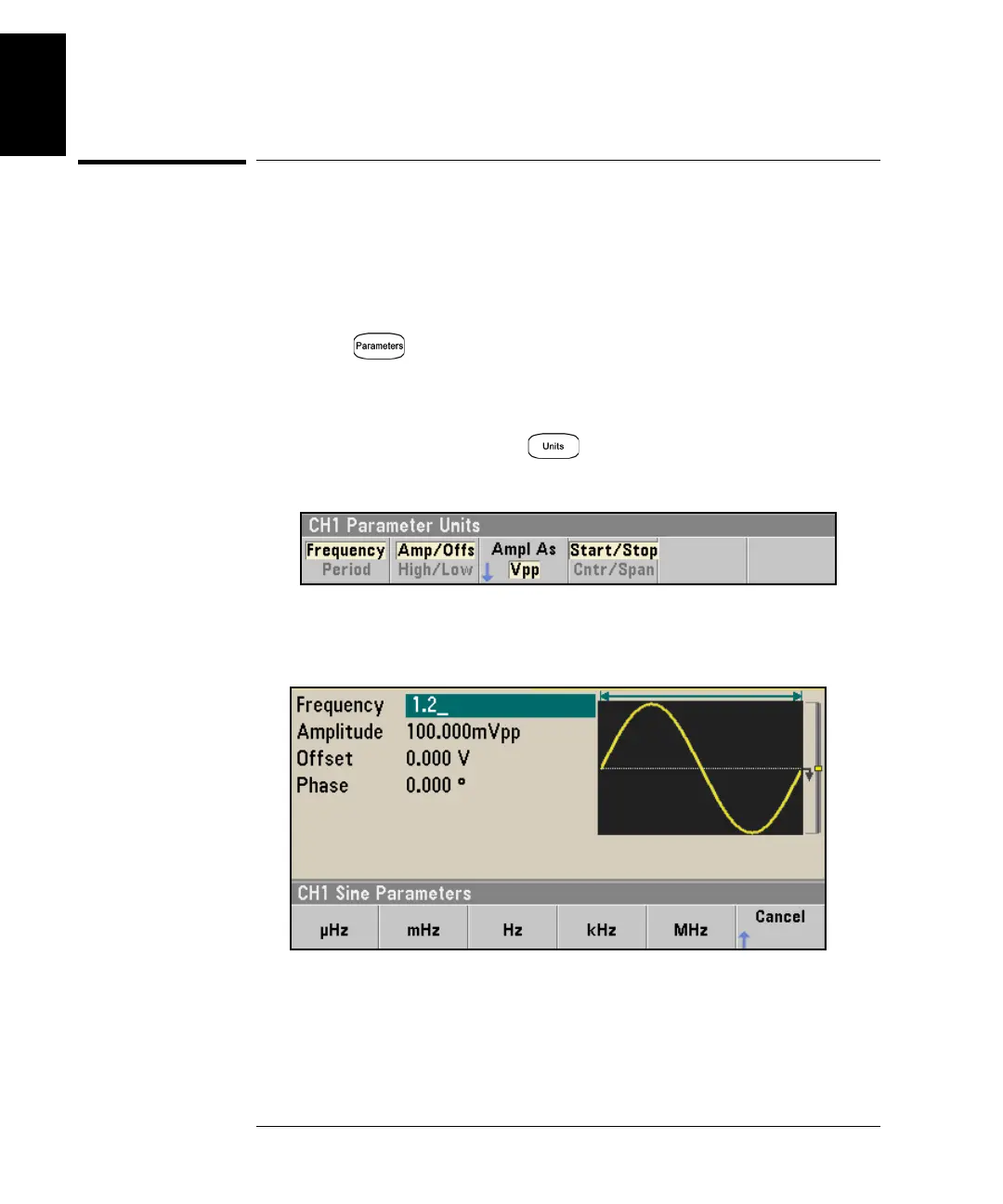

1Press the
button, followed by
the Frequency softkey.
The displayed frequency is either the power-on value or the frequency
previously selected. When you change functions, the same frequency is
used if the present value is valid for the new function. To set the
waveform period instead, press , then press the Frequency softkey
to toggle to the Period softkey (the current Frequency selection is
highlighted in the image below.).
2 Enter the magnitude of the desired frequency.
Using the numeric keypad, enter the value 1.2.
To Next Page
