Pulse Waveforms

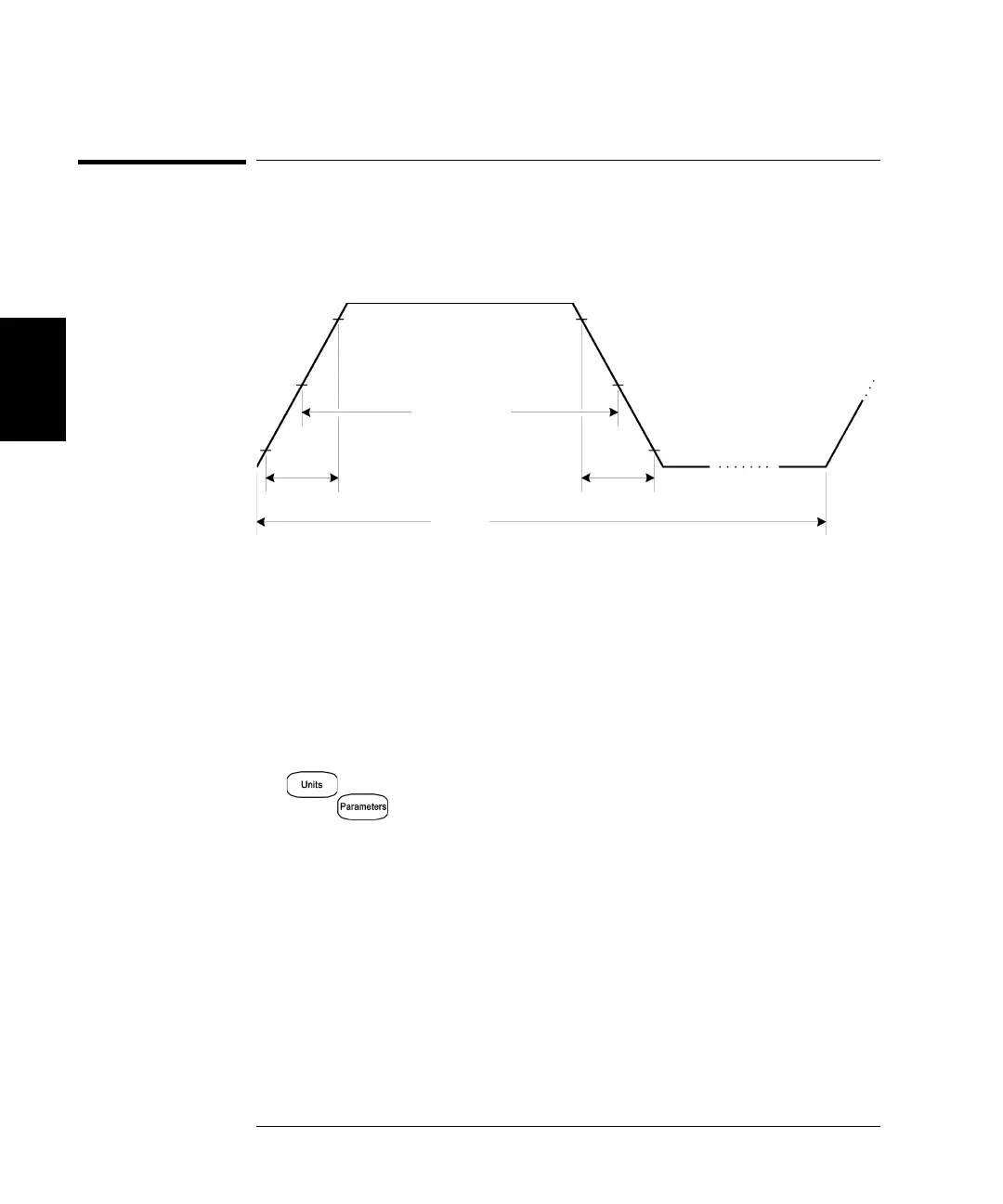

As shown below, a pulse or square waveform consists of a period, a pulse
width, a rising edge, and a falling edge.
Period
• Period: 33.3 ns to 1,000,000 s. The default is 1 ms. Period is the
reciprocal of frequency.
• The waveform generator will adjust the pulse width and edge time as
needed to accommodate the specified period.
• Front-Panel Operation: After selecting the pulse function, press
, then the Frequency/Period softkey to toggle to Period. Then
press
, then Period . Use the knob or numeric keypad to enter
the desired pulse period.
• Remote Interface Operation:
[SOURce[1|2]:]FUNCtion:PULSe:PERiod
{<seconds>|MINimum|MAXimum}
Leading EdgeTime
Trailing Edge Time
10%
90%
50%
10%
90%
50%
Pulse Width
Period
