Microwave Switch/Attenuator Driver 8

34980A User’s Guide 251

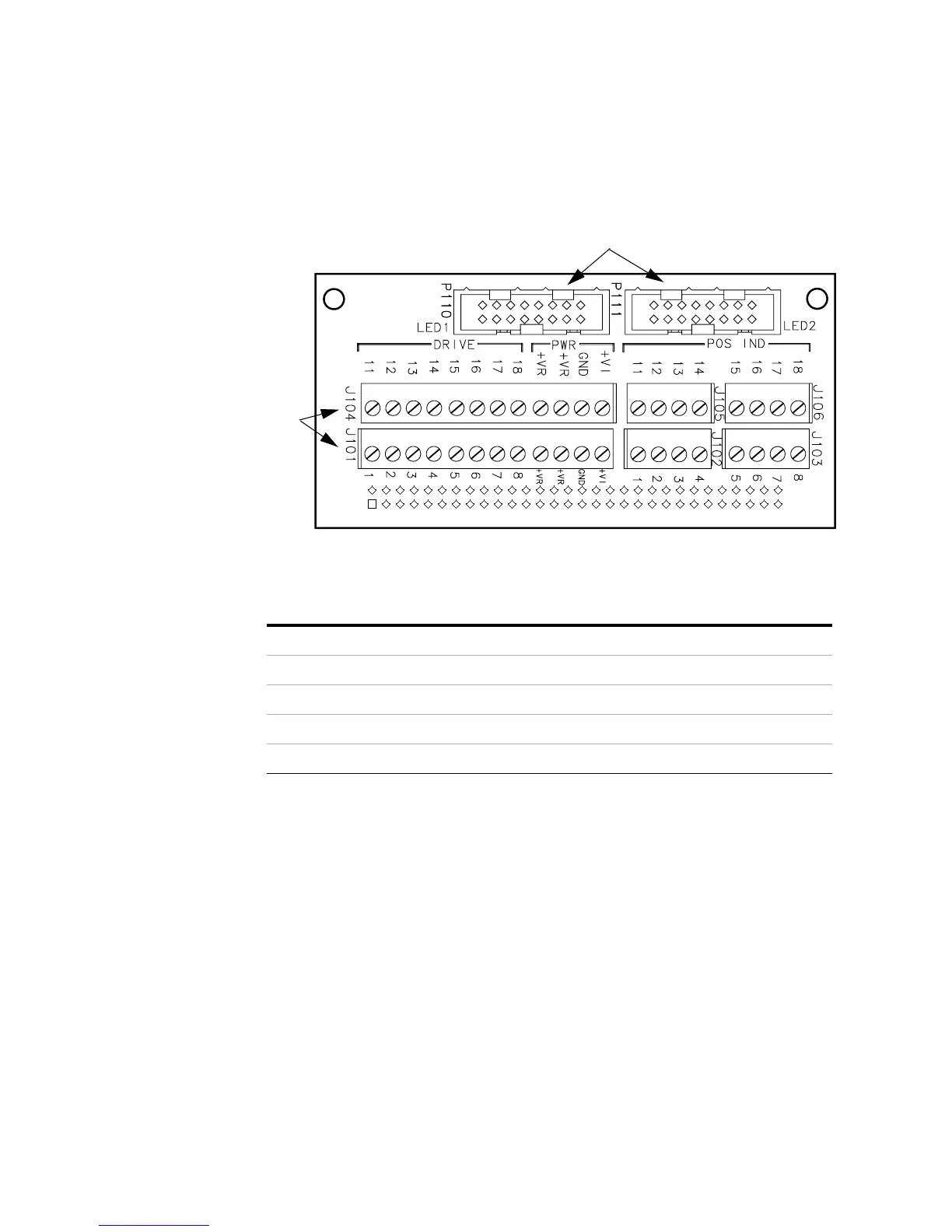

Y1155A Connections

+VR is the Voltage source for the Relay

+VI is the Voltage source for the LED Indicator

876x Switches

LED Connectors

Screw

Te rmin al s

Item Description

Cable Type 3 wire cable, 24 AWG stranded

Y1155A Connector Screw terminal connection for wire provided on Y1155A

Switch Connector Solder wire to switch solder lug

Cable Wiring Varies with drive option; see switch documentation
