6 General Maintenance

To Assemble the EI HES

5977C GC/MSD Operating Manual 163

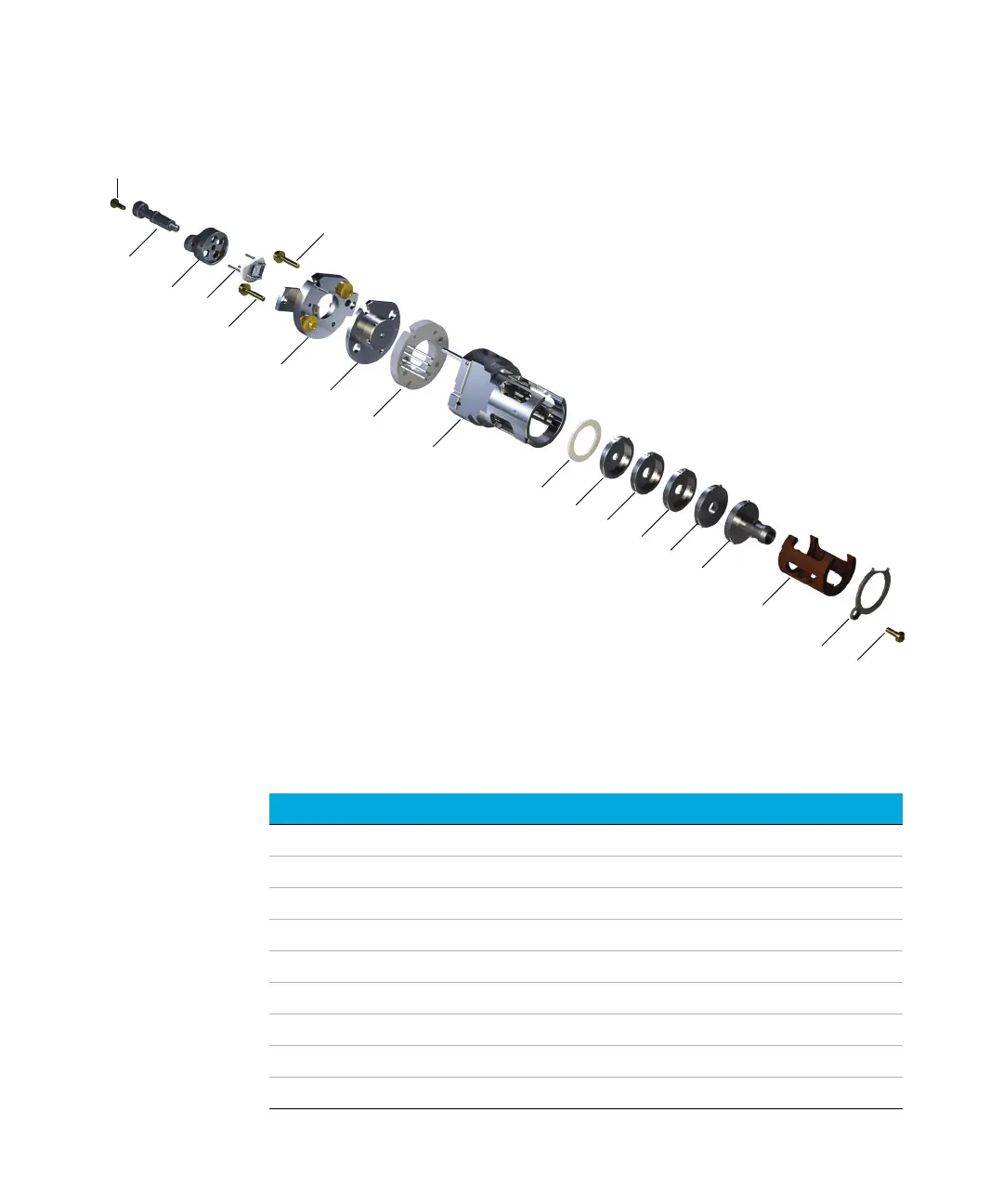

Figure 52 Assembling the EI HES

Table 18 Parts list for EI HES (Figure 52)

Item number Item description Part number (XTR)

1 Source finger grip G7002-20008

2 Filament block G7002-20019

3 Extractor lens (5)*, with 3 mm opening G7004-20061

4 Ceramic insulator for extractor G7002-20064

5 Entrance lens assembly, Extended, HES (1)* G7004-20065

6 Ion focus lens (2)* G7004-20068

7 Lens insulator/holder G7002-20074

8 M2 x 0.4 screw x 12 mm long gold plated screw G7002-20083

9 Source body G7002-20084
