7CI Maintenance

To Assemble the CI Source

5977C GC/MSD Operating Manual 227

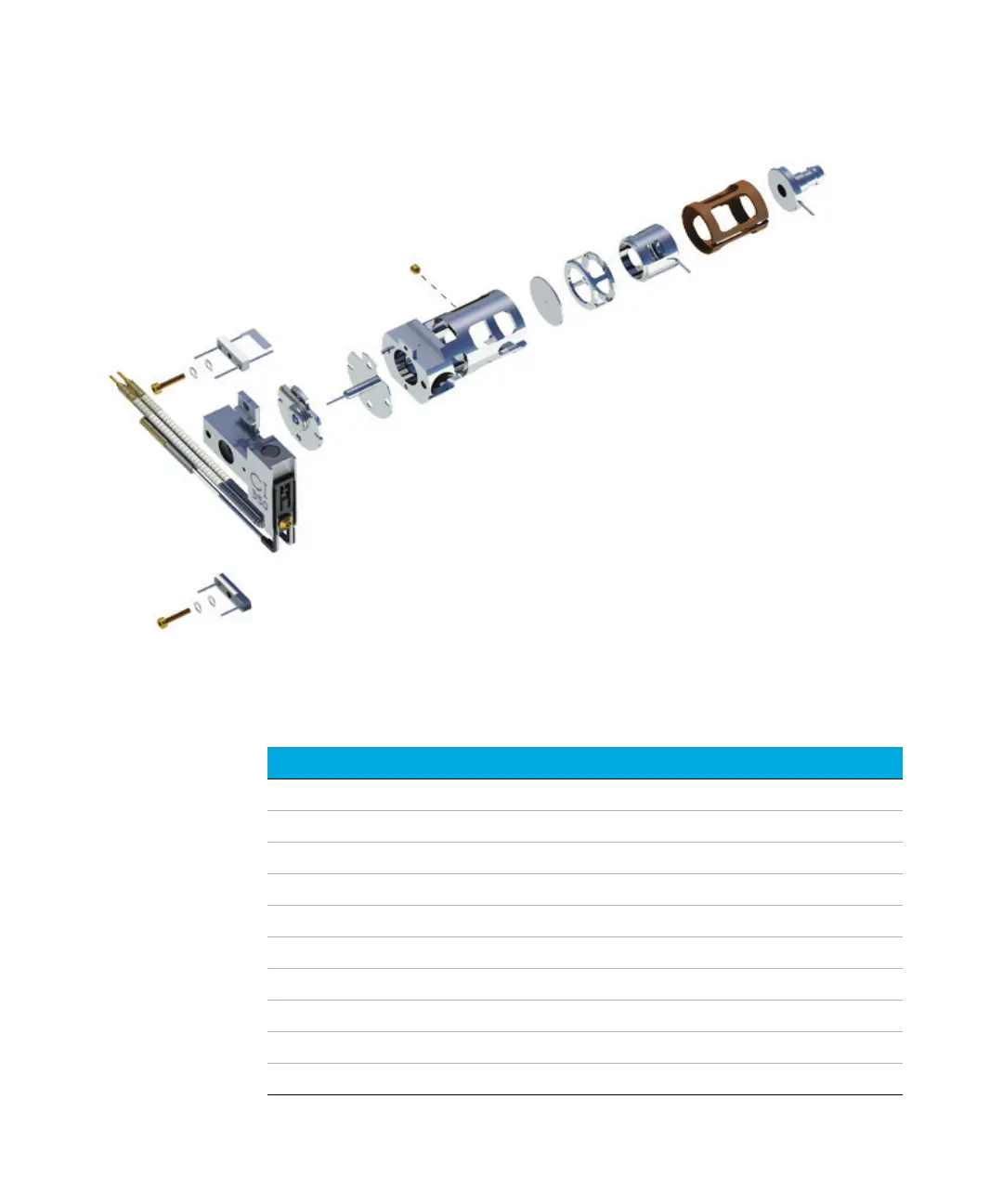

Figure 75. Assembling the CI source

Table 27 Parts list for CI source (Figure 75)

Item Description Part number

1 Set screw G1999-20022

2 Filament screw G1999-20021

3 CI repeller insulator G1999-20433

4 CI lens insulator G3170-20540

5 CI drawout cylinder G1999-20444

6 CI drawout plate G1999-20446

7 CI source heater block assembly G3870-60415

8 Entrance lens G3170-20126

9 CI source body G3170-20430

10 Ion focus lens G1999-20443
