3 Installing Intuvo 9000 GC Columns

To Replace an Intuvo GC Column

5977C GC/MSD Operating Manual 61

7 Using the Intuvo torque driver, rotate all four column clamps off the column's

retainer ring. (See Figure 11.)

8 Unplug the column SmartID key from the lower USB port.

9 Using the Intuvo torque driver, remove the two compression bolts that seal

the column's click and run connectors to the bus and store for later use.

10 Remove and store the column for later use in accordance with the column

manufacturer's recommendations.

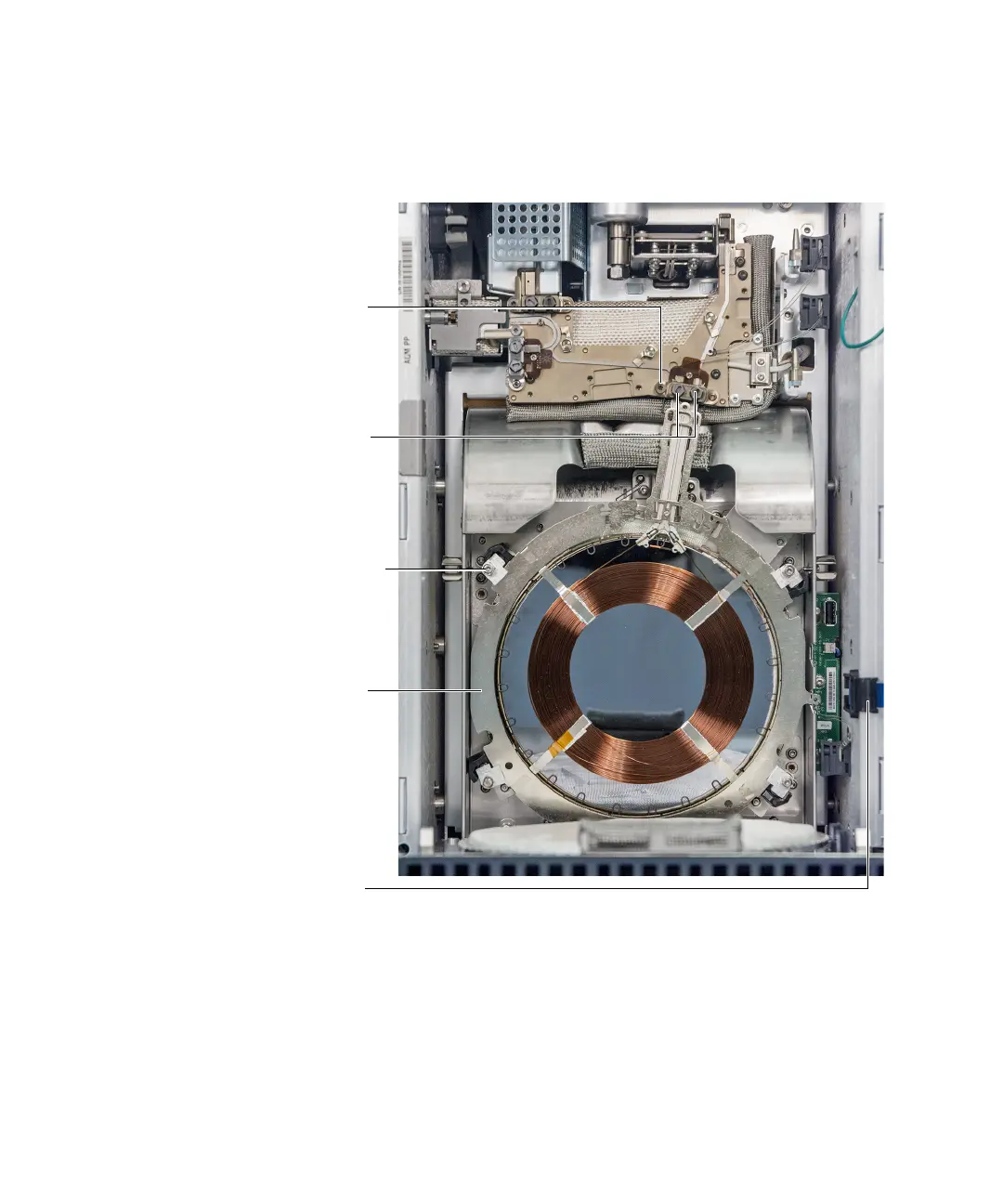

Figure 11. 9000 GC column and related parts

SmartID key

Column clamps

Retainer ring

Compression

bolts

Click and run

connectors
