4 Operating in EI Mode

To change the network settings of the MSD

5977C GC/MSD Operating Manual 81

4 Enter the IP address into a PC web browser URL to display the WUI page.

(See Figure 19.)

5 Click Set Real-Time Clock or Edit NetConfig, and go to Edit NetConfig (MSD

network configuration). (See Figure 20.)

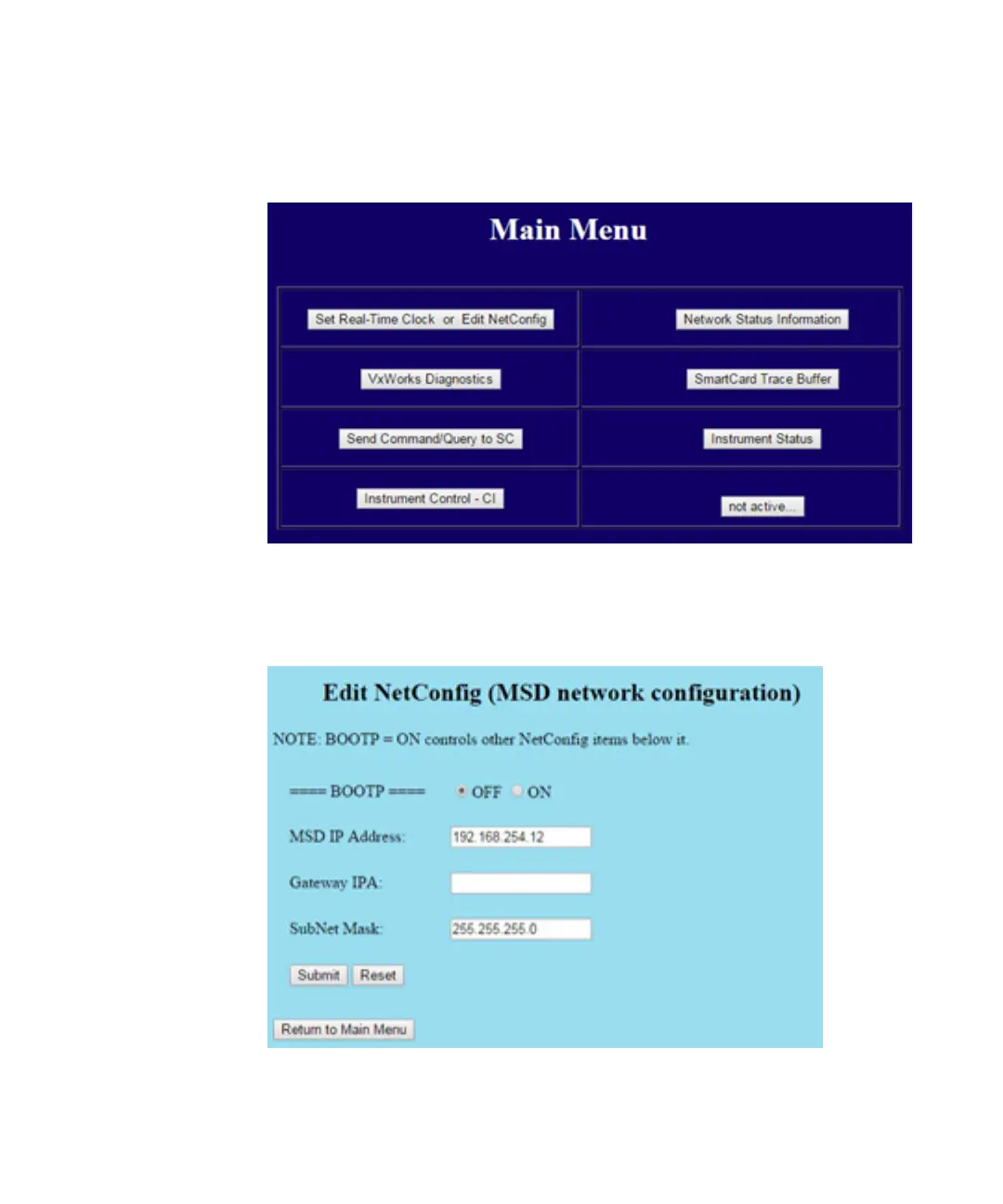

Figure 19. WUI main menu

Figure 20. WUI Edit NetConfig
