4 Operating in EI Mode

To Set Monitors for MSD Temperature and Vacuum Status

5977C GC/MSD Operating Manual 93

5 To set a monitor’s alarm, double-click a monitor displayed in the Instrument

Control view to open that monitor’s dialog for setting alarms. (See Figure 27.)

a Select the Set Alarm check box.

b Set the Warning Level, Alarm Level, and Below Minimum to appropriate

values.

c Enter descriptive text in the Monitor Label field if the default label is not

appropriate.

d Click OK to finish the monitor’s alarm configuration.

6 To make the new settings part of the method, save the Method.

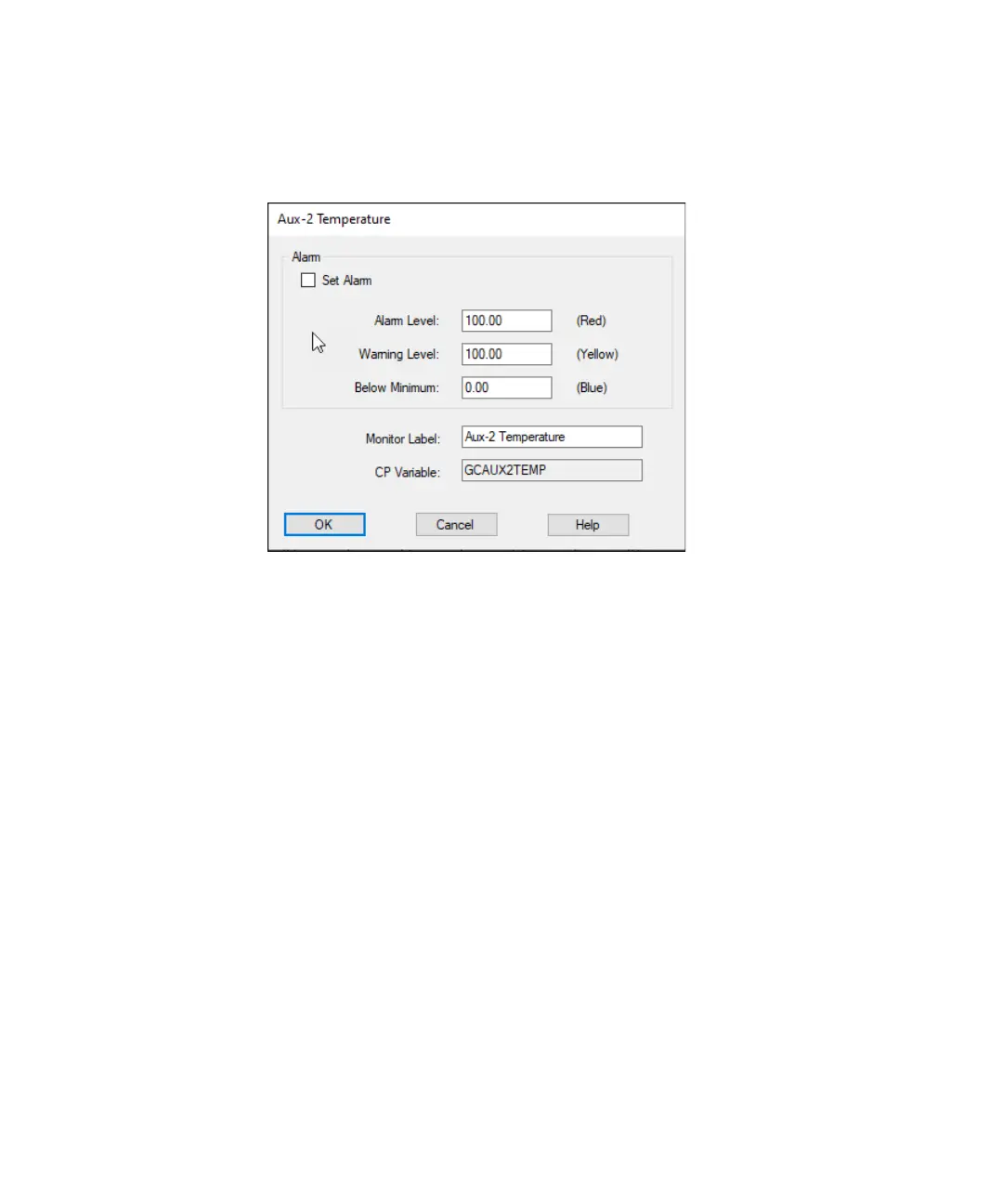

Figure 27 Monitor’s alarm settings
