Step 15. Configuring the GC
Step 15. Configuring the GC
For some operations, you must configure the GC to communicate correctly with
another instrument. These operations require configuration:
• Using an Agilent ChemStation with GPIB communications.
• Using an INET integrator.
ChemStation and modem configurations are done at the GC keyboard. The INET
integrator is configured at the integrator keyboard.
Configuring for the Agilent GPIB ChemStation
The GC and Agilent GPIB ChemStation communicate via an GPIB cable
(part no. 10833B). Connect the cable before configuring.
Each instrument connected to the ChemStation needs an address. There are 31
addresses available (0 to 30). To assign an address to your GC:
You can connect a maximum of 15 devices with GPIB cables. You are limited to
2 meters of cable for each device connected up to a maximum of 20 meters. If
you have three devices connected with GPIB cables, you can only use a total of
six meters of cable. This can be in any combination; it’s the total length that
matters. Do not stack more than three connector blocks on top of one another.

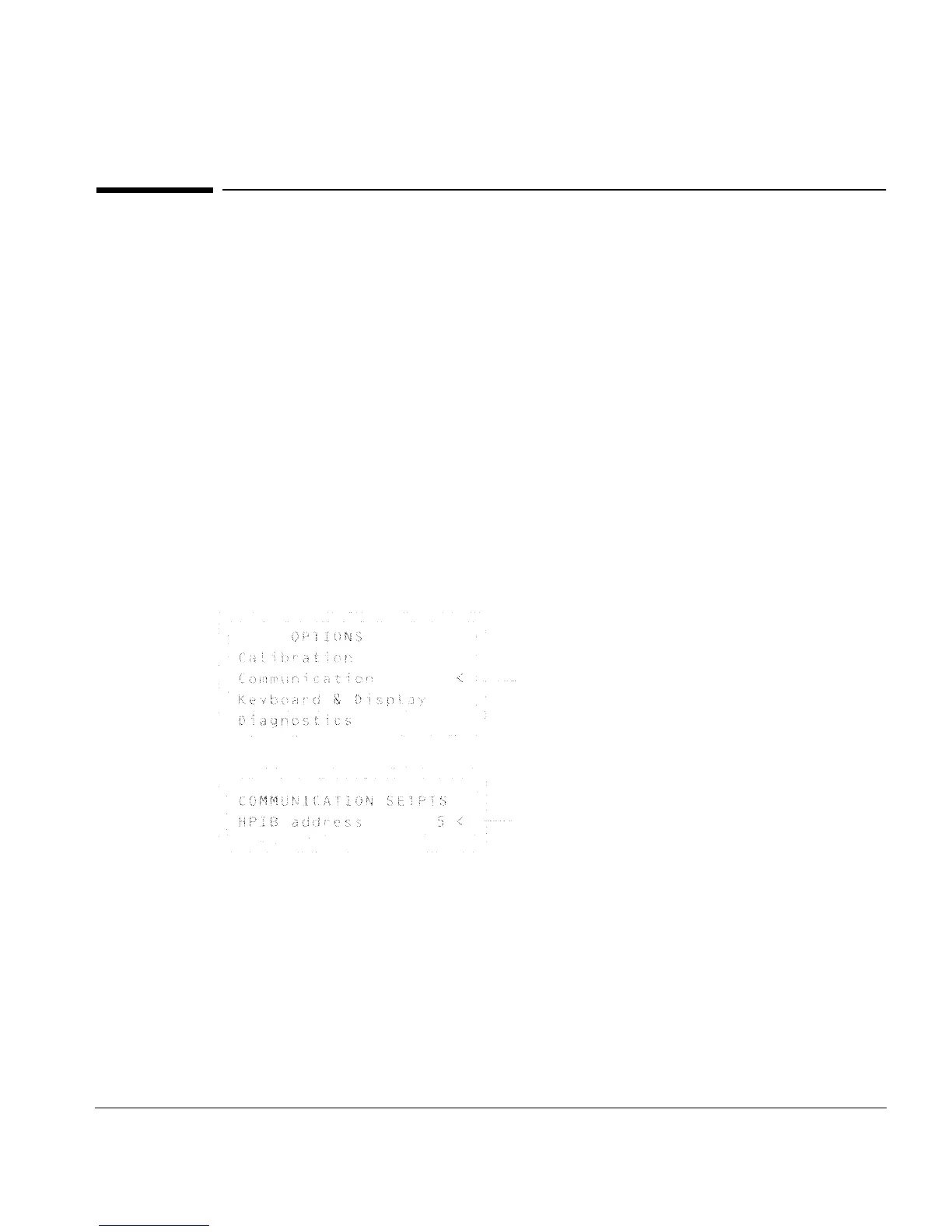

2 Scroll to Communication
and press [Enter]
3 Enter a number between 0 and 30
and press [Enter]
1. Press [Options]
To Next Page
