Installation
Step 5. Attaching traps to the gas supply tubing
32
Step 5. Attaching traps to the gas supply tubing
Materials needed:
❐ 1/8-inch preconditioned copper tubing
❐ Tubing cutter
❐ 1/8-inch
SWAGELOK fittings, nuts, and ferrules
❐ Two 7/16-inch wrenches and one 1/2-inch wrench
❐ Traps
1. Determine where you will install the trap in your supply tubing line. See
Figure 11 for the recommended trap order.

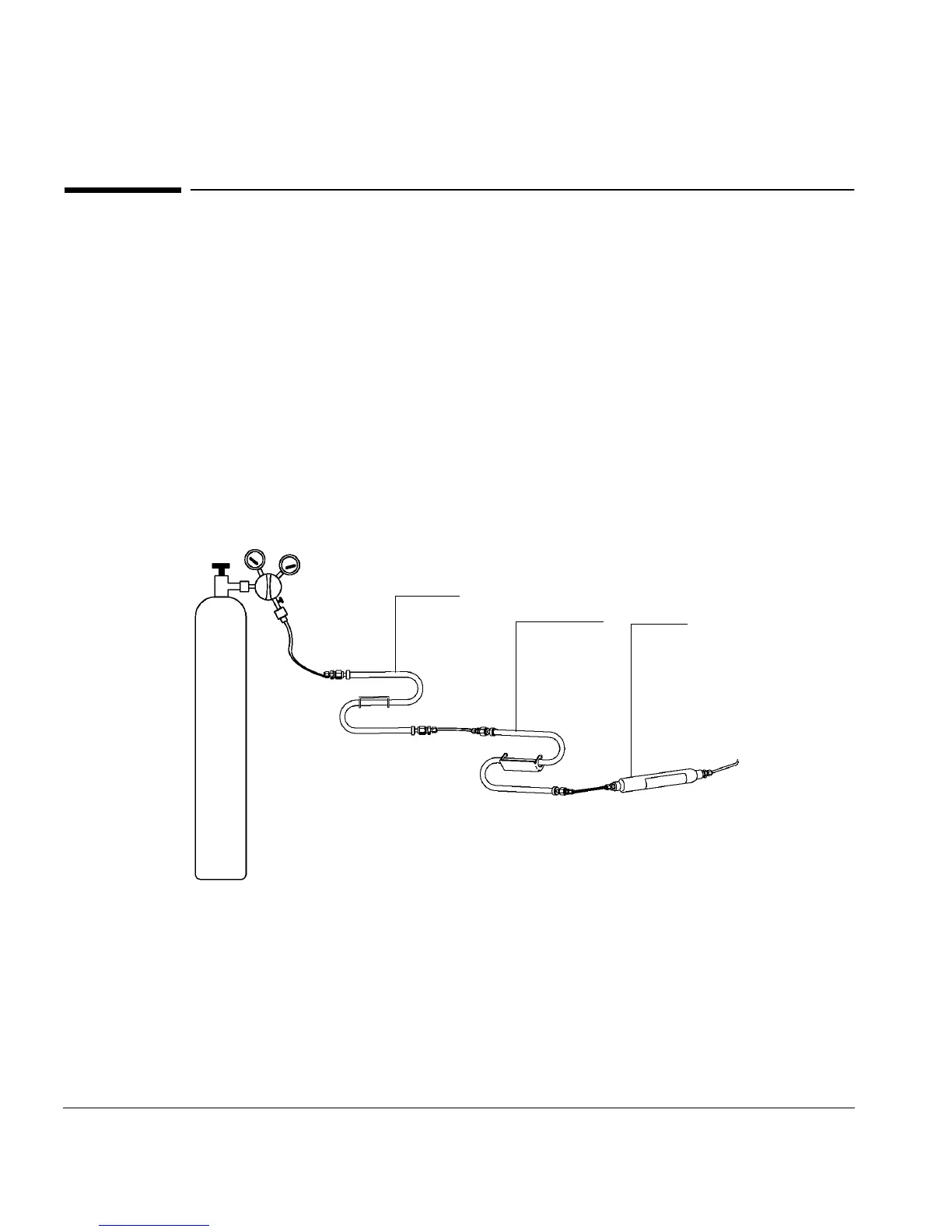

Figure 11. Plumbing diagram
2. Cut the tubing to length using a tubing cutter.
3. Connect the traps and tubing.
Moisture
trap
Hydrocarbon
trap
Oxygen
trap
