Installation
Cable diagrams
Remote start/stop cable
Two ports are available to remotely start and stop instruments in a loop. For
example, you might have an integrator, automatic sampler, and a gas
chromatograph connected with Remote cables. You can synchronize a maximum
of ten instruments using Remote cables. See Figure 25 and Table 11.

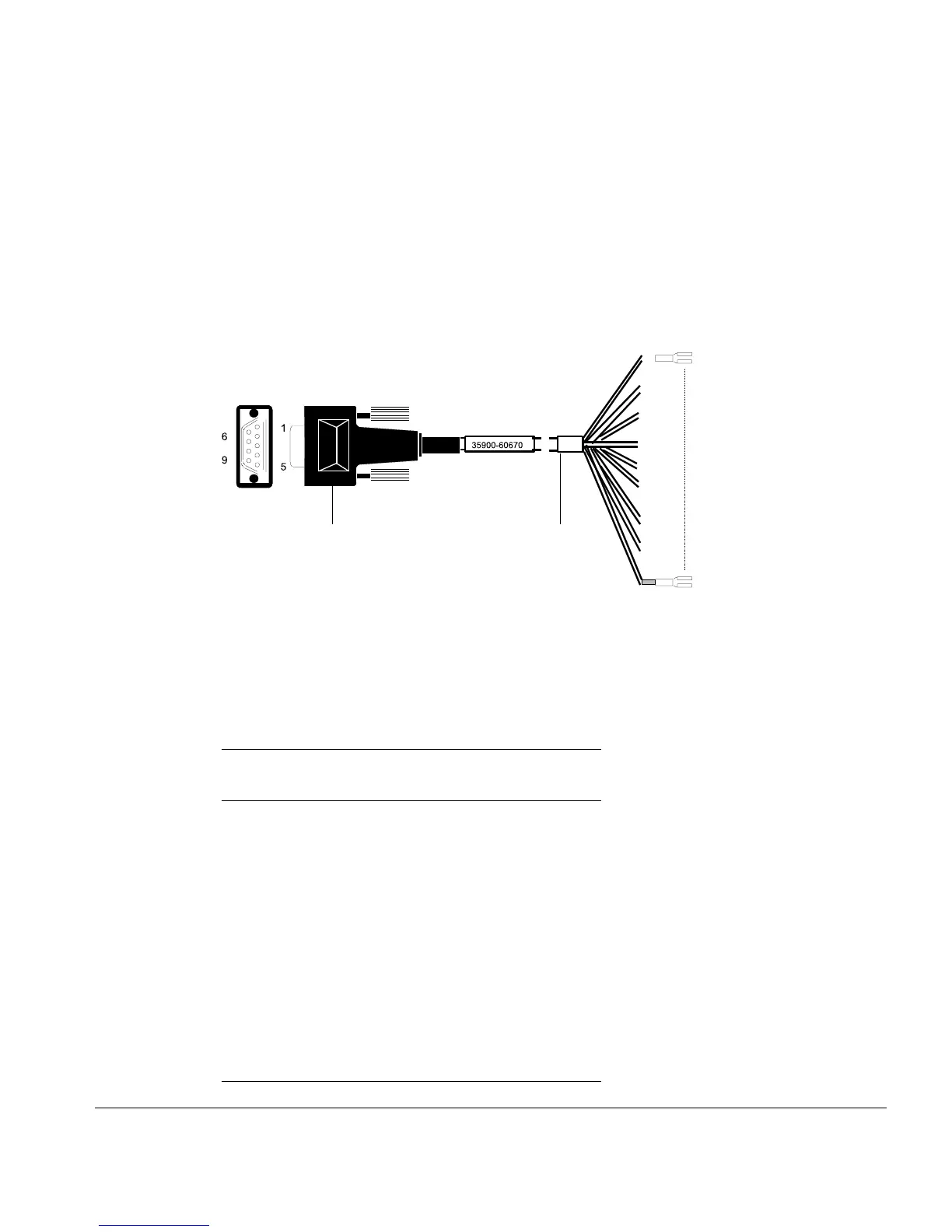

Figure 25. Remote start/stop cable pin-outs, general use
(part no. 35900-60670)
Table 11. Remote Start/Stop Connections
Connector 1
9 pin male
Connector 2
spade lugs
Signal name
1 Black GND
2 White Prepare
3 Red Start
4 Green Shut down
5 Brown Reserved
6 Blue Power on
7 Orange Ready
8 Yellow Stop
9 Violet Start request
Connector 1 Connector 2
