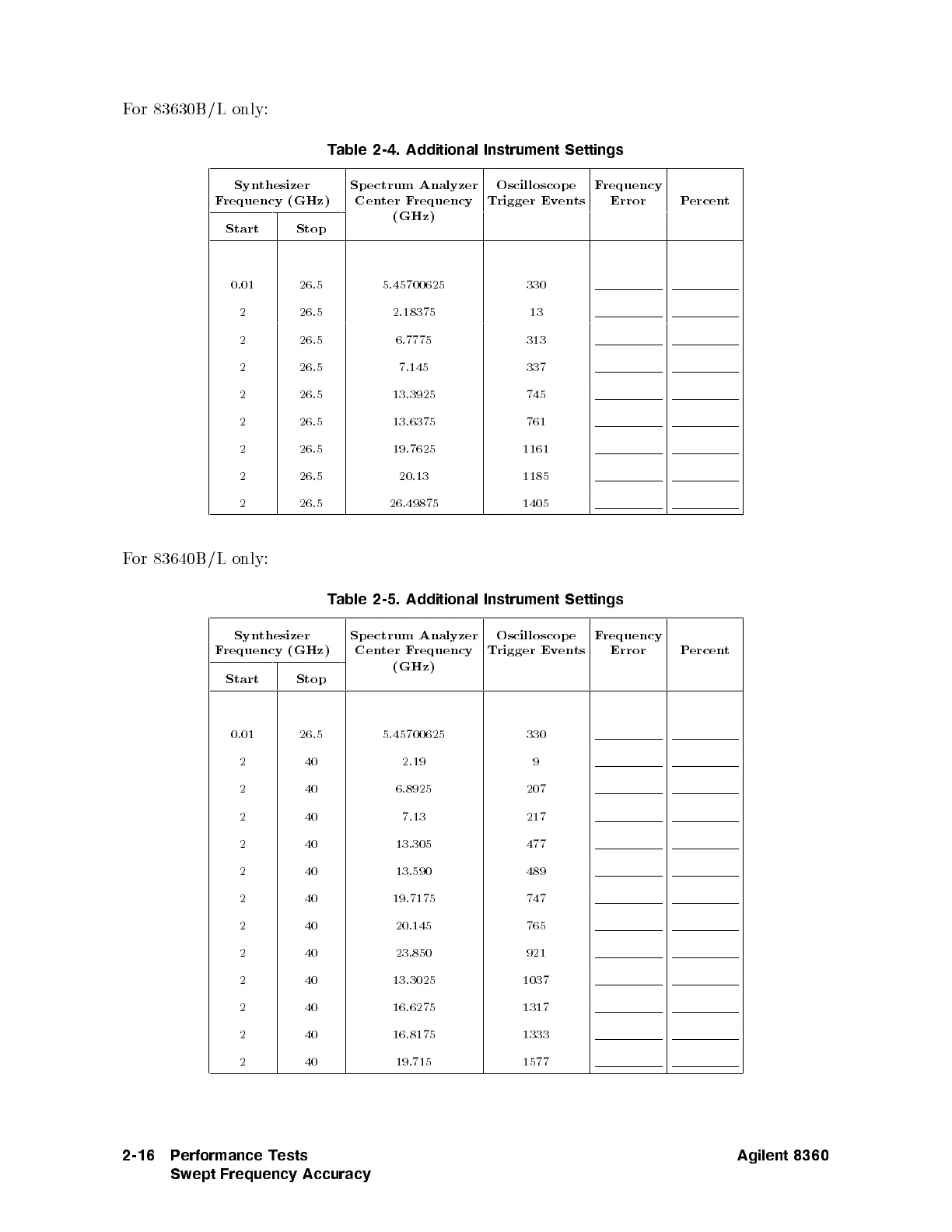

Agilent Technologies 83640B

For
83630B/L
only:
T
able
2-4.
Additional Instrument
Settings
Synthesizer
F
requency
(GHz)
Sp ectrum
Analyzer
Cen
ter
F
requency
(GHz)
Oscilloscope
T
rigger
Ev
en
ts
Frequency
Error P
ercen
t
Start Stop
0.01 26.5 5.45700625 330
2 26.5 2.18375 13
2 26.5 6.7775 313
2 26.5 7.145 337
2 26.5 13.3925 745
2 26.5 13.6375 761
2 26.5 19.7625 1161
2 26.5 20.13 1185
2 26.5 26.49875 1405
F
or
83640B
/L
only:
T
able
2-5.
Additional
Instrument
Settings
Syn
thesizer
F
requency
(GHz)
Sp
ectrum
Analyzer
Cen
ter
F
requency
(GHz)
Oscilloscop
e
T
rigger
Ev
en
ts
F
requency
Error P
ercen
t
Start Stop
0.01 26.5 5.45700625 330
2 40 2.19 9
2 40 6.8925 207
2 40 7.13 217
2 40 13.305 477
2 40 13.590 489
2 40 19.7175 747
2 40 20.145 765
2 40 23.850 921
2 40 13.3025 1037
2 40 16.6275 1317
2 40 16.8175 1333
2 40 19.715 1577
2-16 Performance Tests
Swept Frequency Accuracy
Agilent 8360
