Agilent Technologies 83640B

Refer to
Figure 7-5
.
Note
Instrumen
ts with
Option 004
do
not
ha
v
e
all
the
cables
sho
wn.
5.
Cut
the tie
wraps holding
the cables.
6.
F
rom
the
A9,
A10,
and
A11
assem
blies
(or
the
A8
assem
bly
for
instrumen
ts
with Option
002),
disconnect
the
four
coaxial
cables
(W6,
W7,
W8,
and W9)
attached
to the
BNC
connectors.
7.
Disconnect
the
source
mo
dule
in
terface
cable,
W10.
8.
Disconnect
ribb
on
cables
W2
and
W3 from
the motherb
oard.

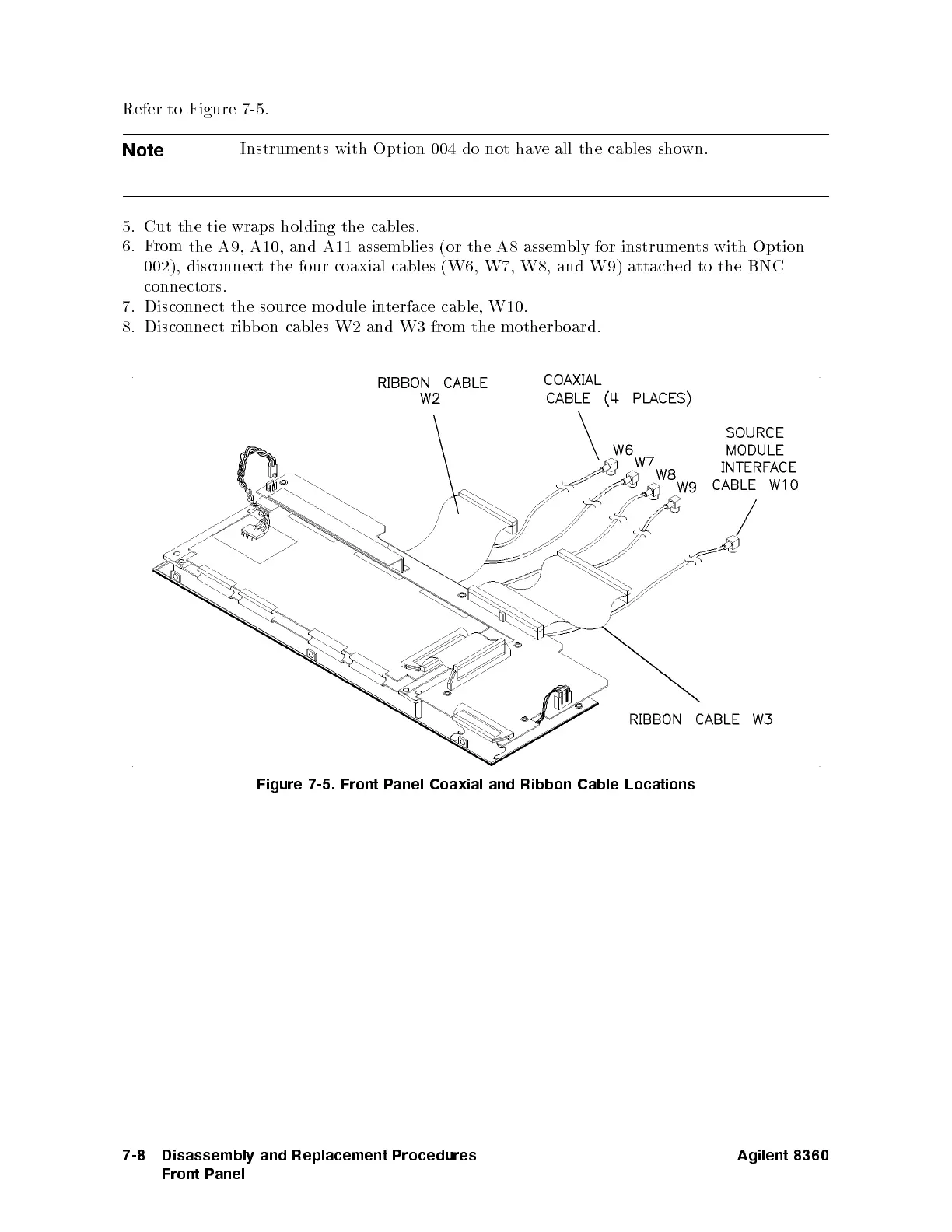

Figure
7-5.
Front
P
anel
Coaxial
and
Ribbon
Cable
Locations
