Refer to
Figure 7-22
.
5.
Disconnect
ribb
on
cable
W31
from
the
motherb oard.
6.
Disconnect the
8-pin line
switch
connector.
7. Disconnect
the fan
harness.
8.
Cut
the
tie
wraps
holding
the coaxial
cables to
the four
BNC connectors
and the
source
mo
dule in
terface.
9.
Disconnect
the
coaxial
cables
from
the
A7,
A12,
and
A14
assem
blies
and
disconnect
the
source
mo
dule
in
terface
cable
from
the
A19 assem
bly.

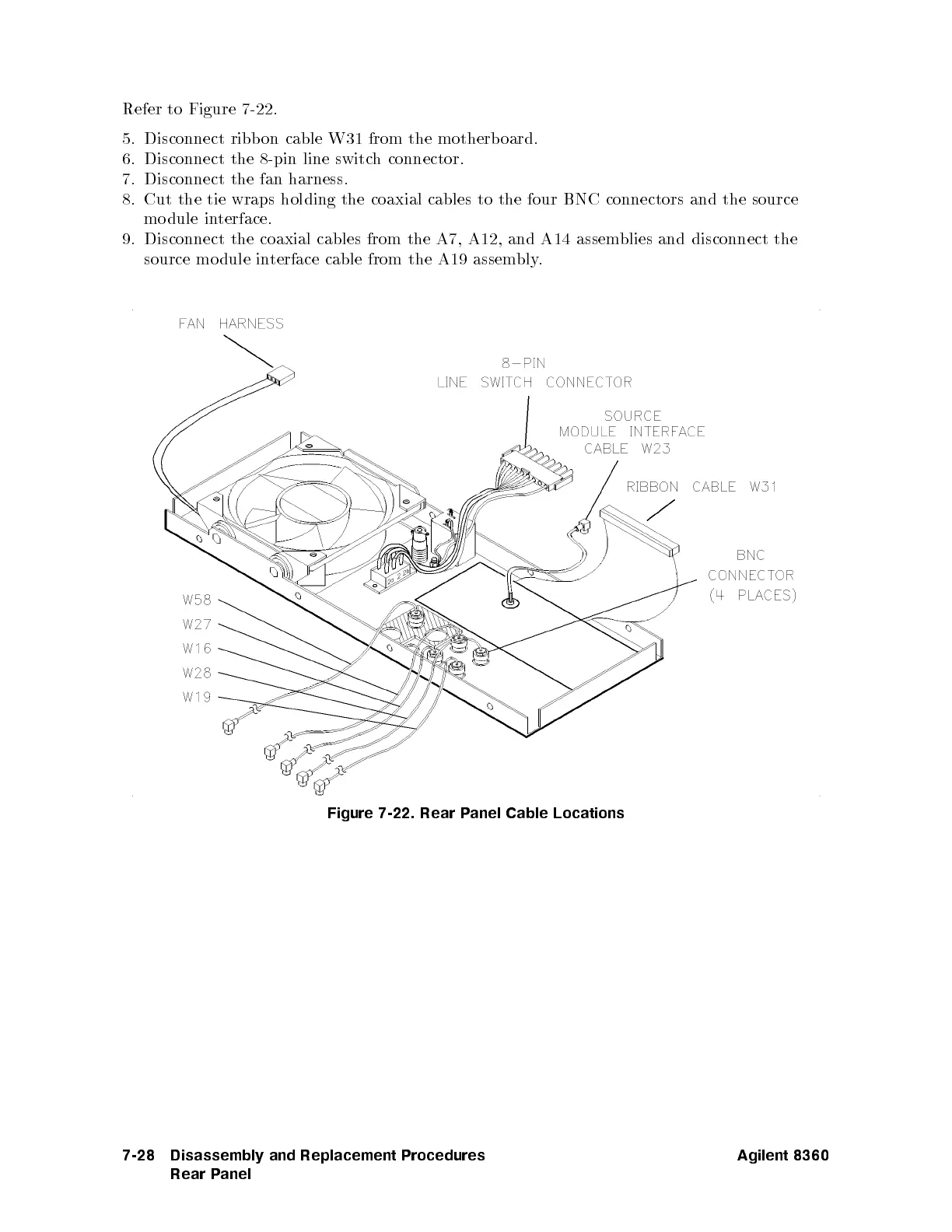

Figure 7-22.
Rear P
anel Cable
Locations
7-28 Disassembly and Replacement Procedures
