4.
J1 RF
Output Connector
Remo
v
al
(Option
004)
Refer to
Figure 7-20
.
CA
UTION
T
o
a
v
oid
damaging
the
connector,
do
not
disassemble
the RF
output
connector
assembly
. Only
unscrew the
connector on
the end
of the
cable.
1. Complete
\1. Preliminary
Steps" b
efore con
tin
uing.
2.
Disconnect
cable
W43
at
the
directional
coupler
A30
(or
at
the
step
atten
uator
A31
for
instrumen
ts
with
Option
001).
3. Remo
ve
the t
w
o
screws
from
the
RF
output
connector
plate
on
the
rear
panel.
4.
Remo
v
e
the
RF
connector
with
cable
W43
attac
hed.

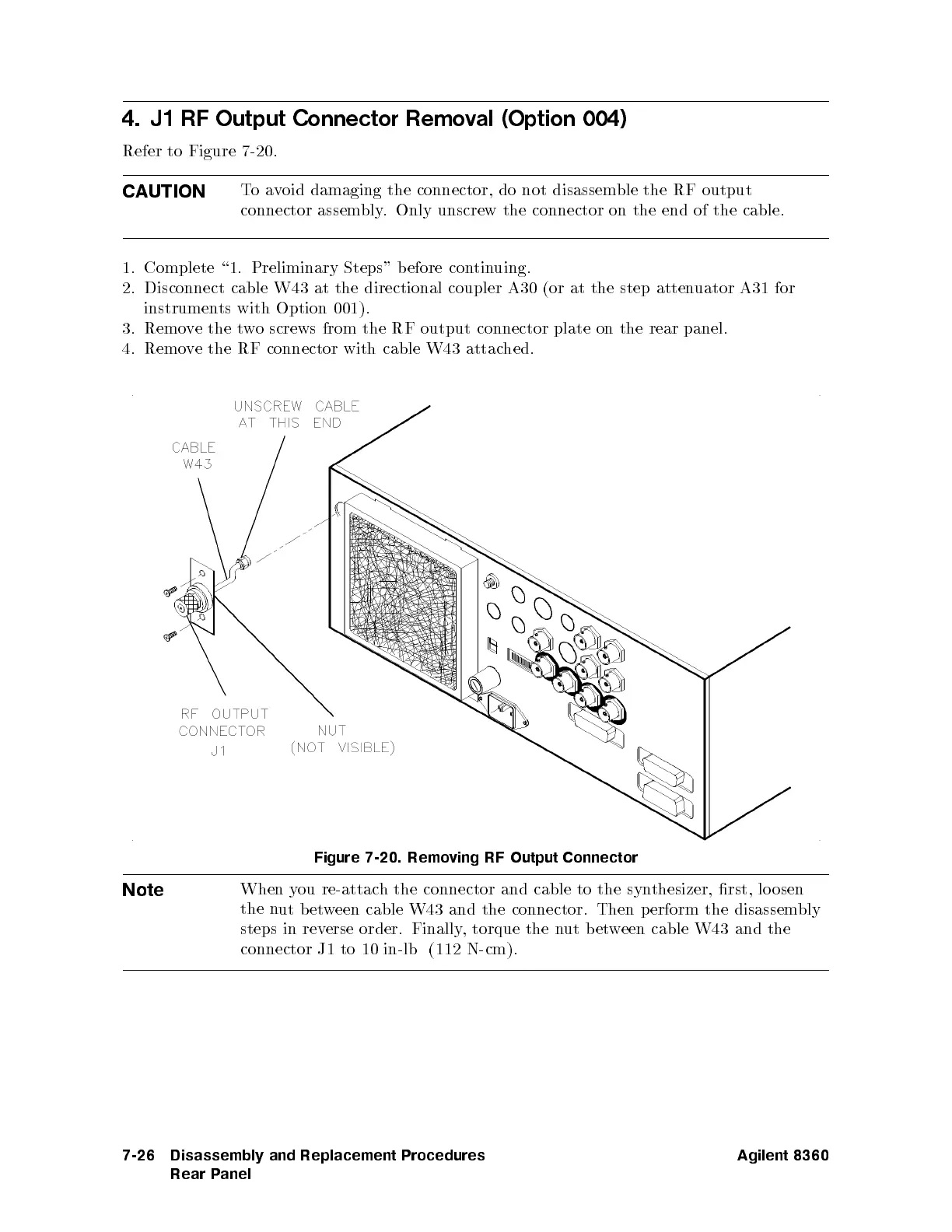

Figure 7-20. Remo
ving RF Output Connector
Note
When y
ou re-attach the connector and cable to
the syn
thesizer, rst, lo osen
the n
ut bet
ween cable W43 and the connector. Then perform the disassem
bly
steps in rev
erse order. Finally
, torque the n
ut bet
ween
cable W43 and the
connector J1 to 10
in-lb (112 N-cm).
7-26 Disassembly and Replacement Procedures
Rear Panel
Agilent 8360
