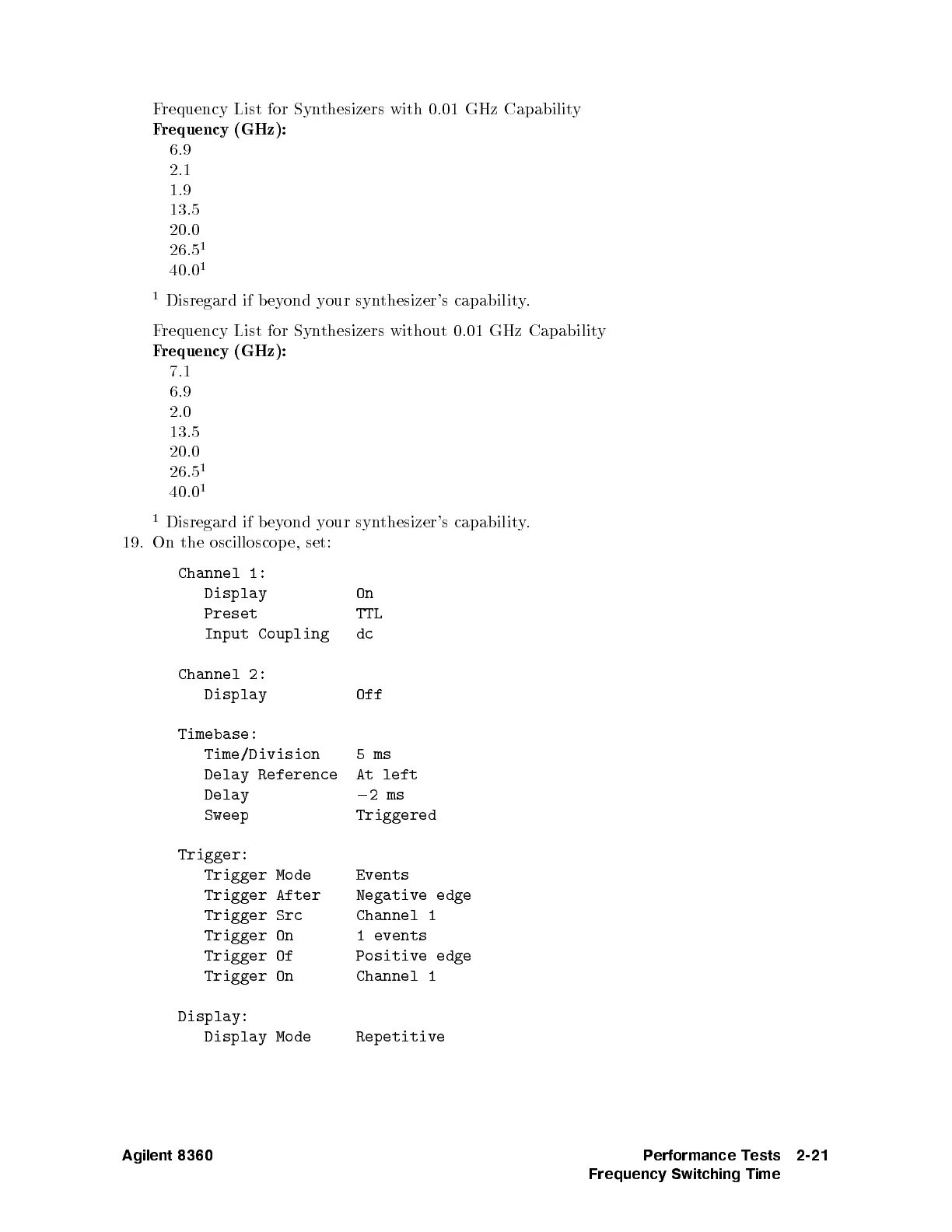

Frequency
List for
Synthesizers
with 0.01
GHz Capabilit
y
F
requency
(GHz):
6.9
2.1
1.9
13.5
20.0
26.5
1
40.0
1
1
Disregard if
bey
ond y
our
syn
thesizer's
capabilit
y
.
F
requency List
for Syn
thesizers
without
0.01
GHz
Capabilit
y
F
requency
(GHz):
7.1
6.9
2.0
13.5
20.0
26.5
1
40.0
1
1
Disregard
if
b
ey
ond
y
our
syn
thesizer's
capabilit
y
.
19.
On
the
oscilloscop
e, set:
Channel
1:
Display
On
Preset
TTL
Input
Coupling
dc
Channel
2:
Display Off
Timebase:
Time/Division
5
ms
Delay
Reference
At
left
Delay 0
2ms
Sweep
Triggered
Trigger:
Trigger
Mode Events
Trigger After
Negative edge
Trigger Src
Channel 1
Trigger On
1 events
Trigger Of
Positive edge
Trigger On
Channel 1
Display:
Display Mode Repetitive
Agilent 8360 Performance Tests
Frequency Switching Time
2-21
