2.
B1 F
an Remo
v
al
Refer to
Figure 7-18
.
1.
Complete
\1.
Preliminary
Steps"
b
efore con
tinuing.
2.
Remov
eb
oth screws
(item 1)
from the
fan
shroud.
3.
Remo
v
e
items
2
through
5.
4.
Remo
v
e
the
four
screws
(item
7) from
the rear
panel/fan brac
kets.
5.
Unplug the
fan harness.
6.
Tip
the
fan
and
angle
it
out
through
the
op
ening
in
the
rear
panel.
7.
Remo
v
e
the
four
screws (item
7) attac
hing the
tw
o
brac
k
ets
to
the
fan
and
remo
v
e
the
brac
kets
(item 10).

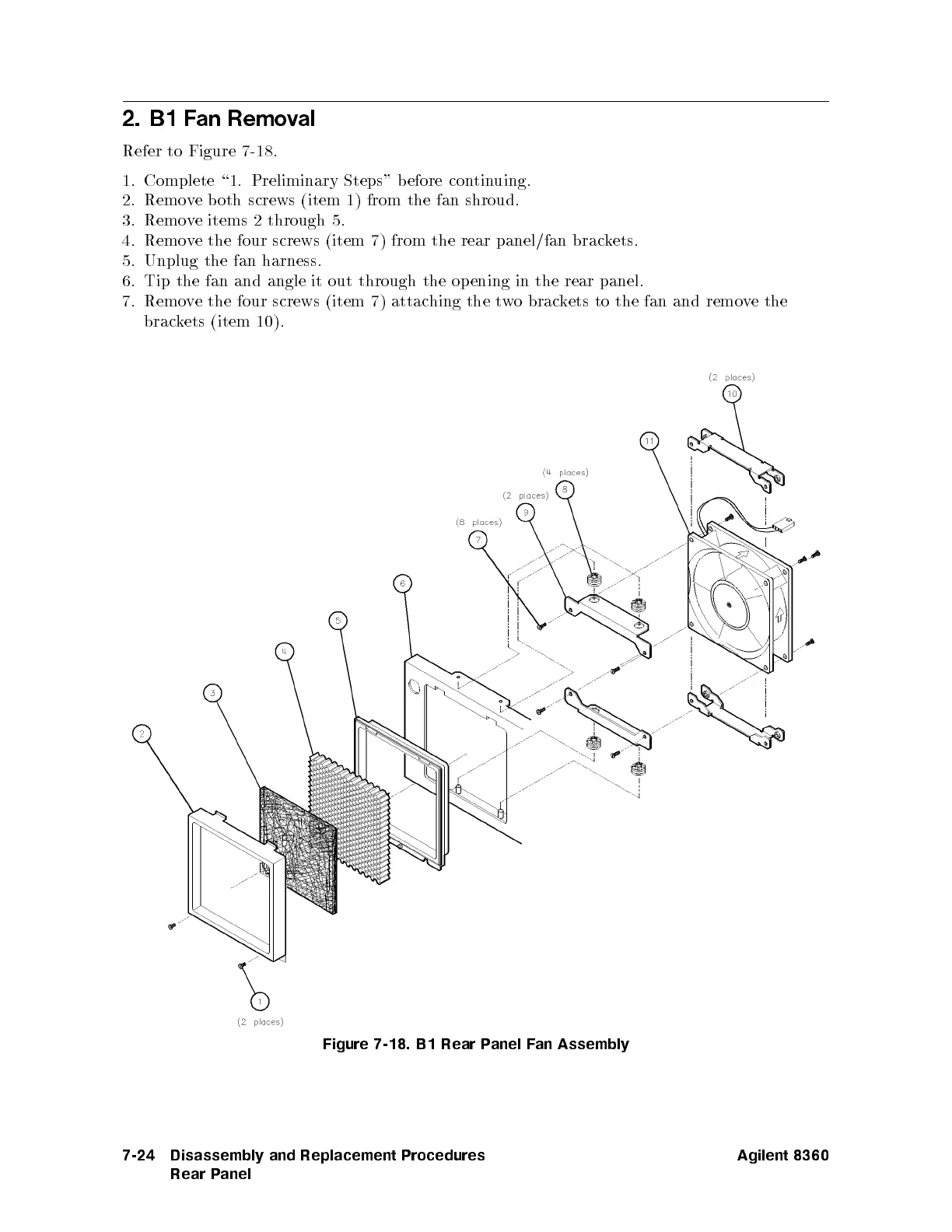

Figure 7-18. B1 Rear Panel Fan Assembly
7-24 Disassembly and Replacement Procedures
Rear Panel
Agilent 8360
