2-6
Using the 86100C
A Quick Tour
86108A Precision Waveform Analyzer
The 86108A precision waveform analyzer is the latest addition to the family of
86100C plug-in modules. It is a dual-channel electrical module with inte-
grated, compliant clock recovery, and a built-in precision time base. This is a
double-wide module that fills both slots in the 86100C mainframe. An 86108A
setup wizard allows you to quickly configure the module for measurements.

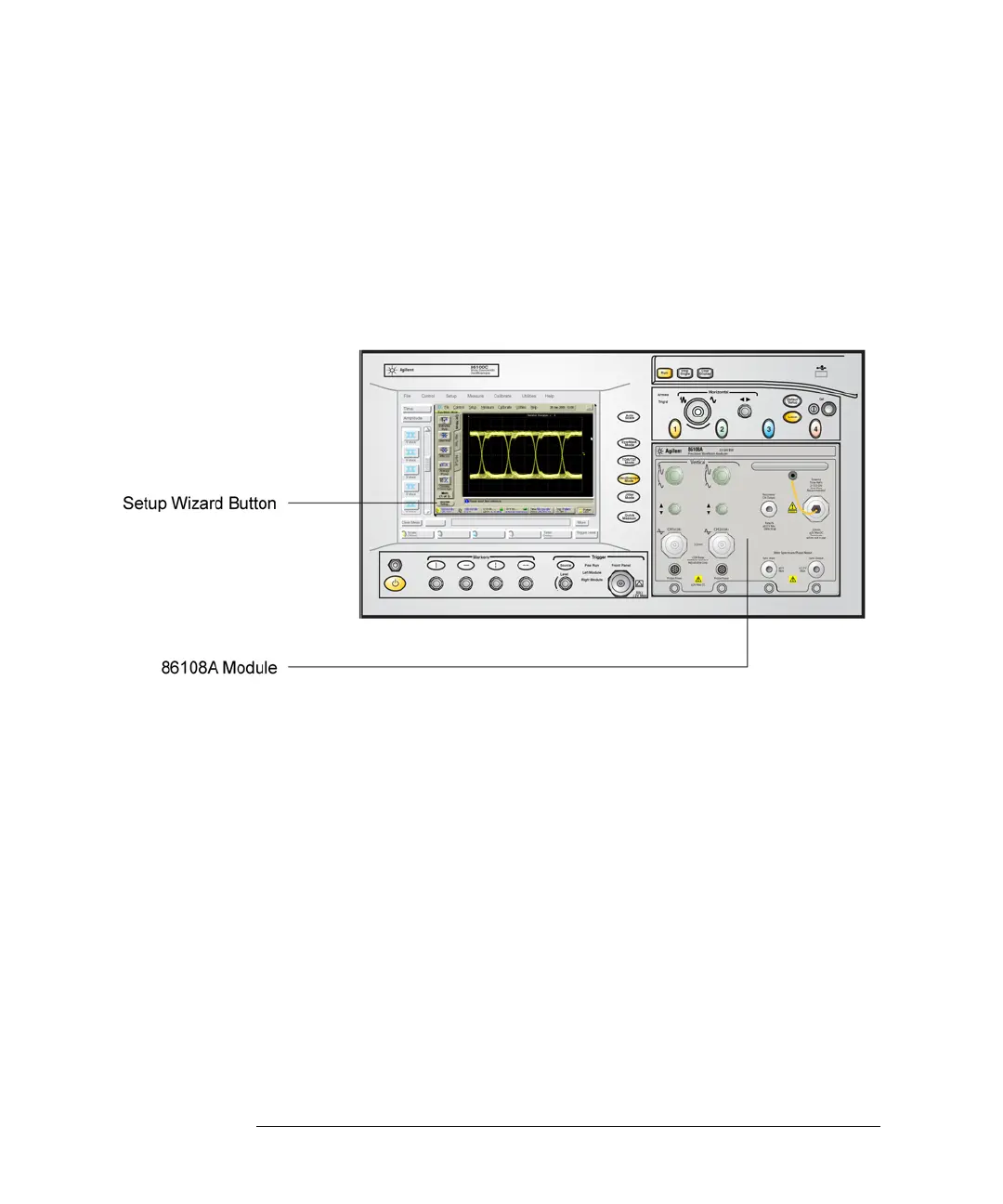

Figure 2-5. 86108A Precision Waveform Analyzer Module
To learn more about your Infiniium DCA
• Refer to the online Help, which contains information that would normally be in
the user’s guide
• Visit our website at http://www.agilent.com. Use the keywords “Infiniium DCA”
or “86100C” in your search.
Plug-in Modules
The Infiniium DCA holds up to two plug-in modules, which can provide up to
four measurement channels. Each input channel has its own vertical controls.
The amplitude scale knob adjusts the amplitude scale used for the input chan-
