1-5
Installing the 86100C
Step 1. Inspect the shipment
adapters is easy. Simply hand turn an adapter counter-clockwise to remove it
from a channel connector; to install a different adapter, hand turn the new
adapter clockwise onto the connector.
Instrument Options • 86100C-001, Enhanced 12.5 GHz Trigger Bandwidth, providing pattern lock
and eyeline capabilities.
• 86100C-090, Removable hard disk
• 86100C-092, Standard instrument internal non-removable hard disk.
• 86100C-200, Enhanced Jitter Analysis Software
• 86100C-201, Advanced Waveform Analysis Software
• 86100C-202, Enhanced Impedance and S-Parameter Software
• 86100C-300, Advanced Amplitude Analysis/RIN/Q-Factor
• 86100C-0BJ, Programmer’s Guide
• 86100C-AFP, Additional filler panel
• 86100C-AX4, Rack mount flange kit
• 86100C-AXE, Rack mount flange kit with handles
• 86100C-UK6, Commercial calibration certificate with test data
If anything is missing or defective, refer to “Contacting Agilent Technologies”
on page 1-41. If the shipment was damaged, contact the carrier, then contact
the nearest Agilent Sales Office. Keep the shipping materials for the carrier’s
inspection. The Agilent Sales Office will arrange for repair or replacement at
Agilent’s option without waiting for claim settlement.

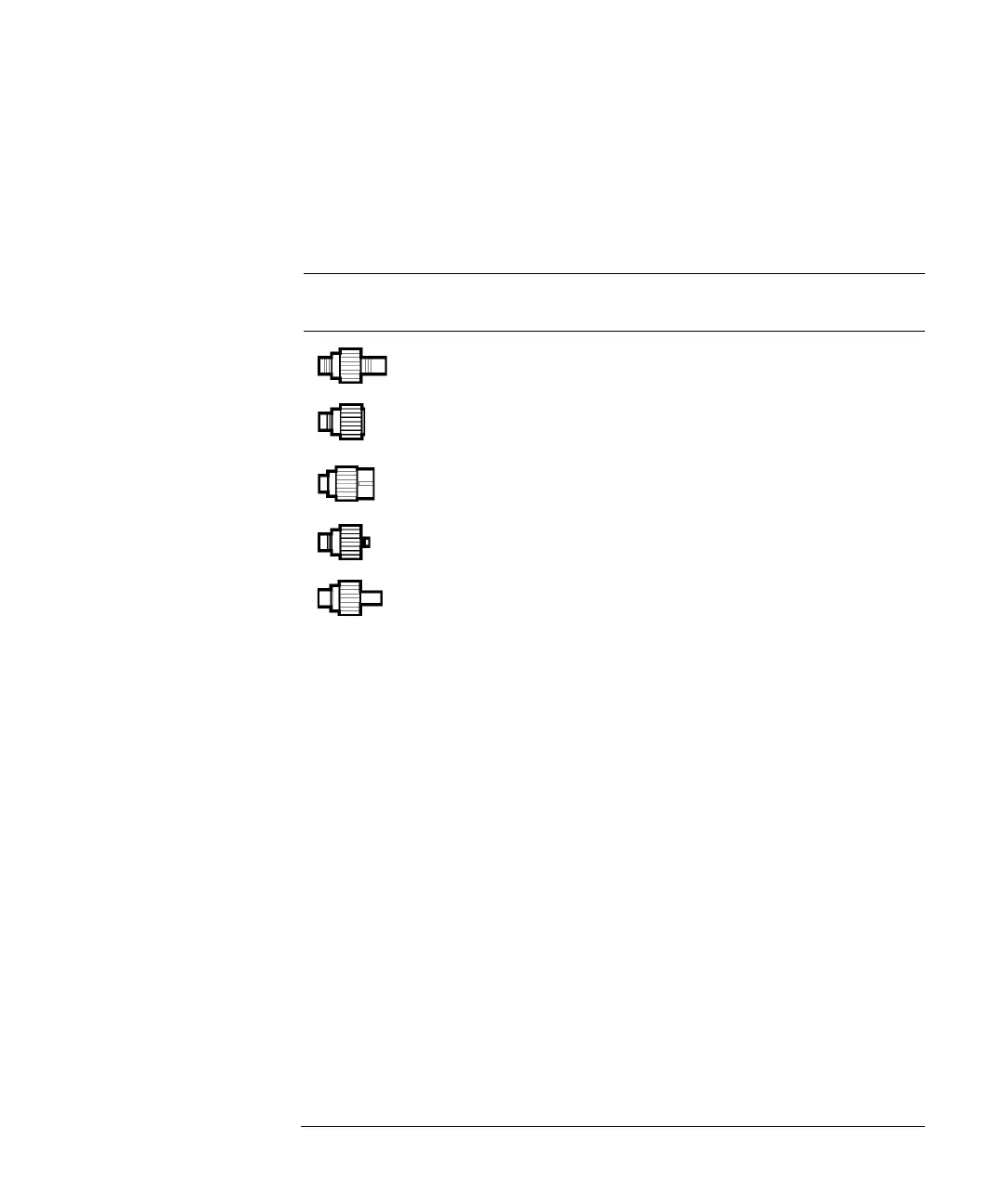

Table 1-1. Fiber-Optic Adapters for Optical Channels
Front Panel
Fiber-Optic Adapters Description Agilent Part Number
Diamond HMS-10 81000AI
FC/PC 81000FI
SC 81000KI
DIN 81000SI
ST 81000VI
