2-23
Making Mixer Measurements (Option 089 Only)
High Dynamic Range Swept RF/IF Conversion Loss
Using the Mixer Measurement Diagram
While the analyzer is still set to the IF frequency range, press:
Note the RF frequency values on the diagram.
Press .
Perform a Power Meter Calibration Over the RF Range

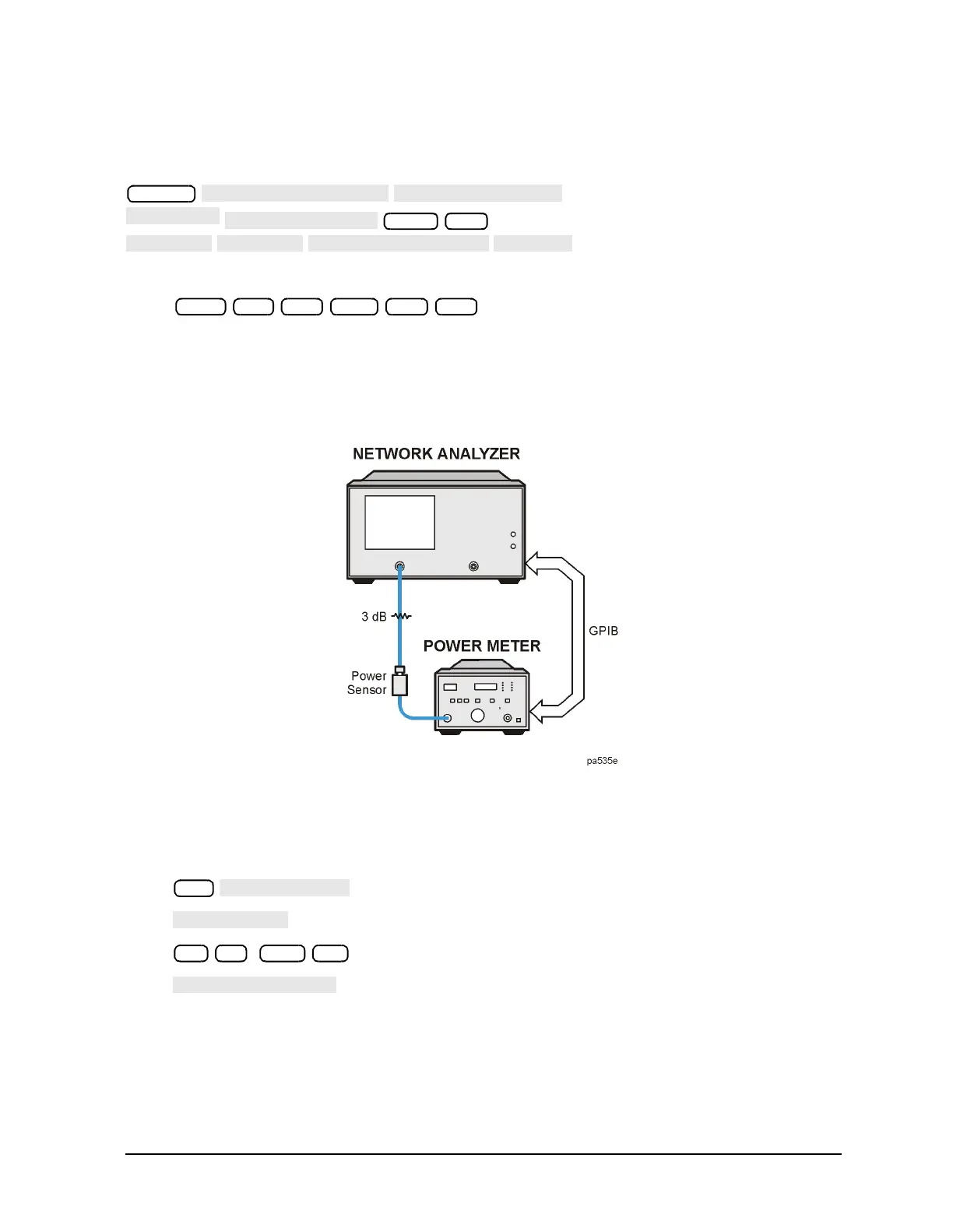

1. Connect the equipment as shown in Figure 2-18.
Figure 2-18 Connections for Power Meter Calibration
2. Use the previous power meter settings.
3. Perform a one sweep power meter calibration over the RF frequency range at −5 dBm
(−10 dBm, 8722ES):
.
( , 8722ES)
System
M/µ
Start 1.6 G/n Stop 2.5 G/n
Cal
−5 x1 −10 x1
