4-17
Printing, Plotting, and Saving Measurement Results
Defining a Plot Function
Selecting Line Types
• Press and select each plot element line type that you want to modify.
— Select to modify the line type for the data trace. Then enter the
new line type (see Figure 4-6), followed by .
— Select to modify the line type for the memory trace. Then
enter the new line type (see Figure 4-6), followed by .

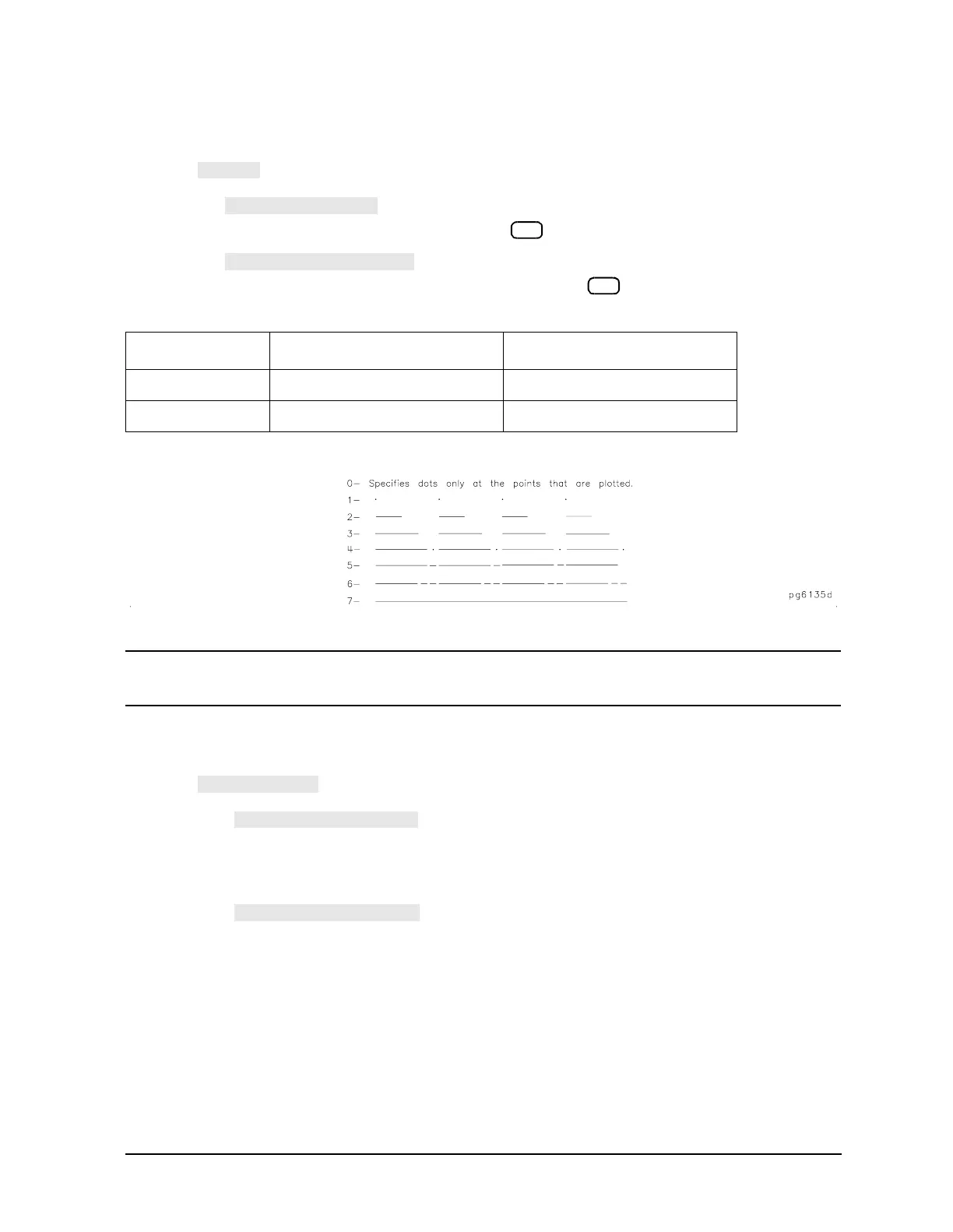

Figure 4-6 Line Types Available
NOTE You must define the line types for each measurement channel (channel 1/3
and channel 2/4).
Choosing Scale
• Press until the selection appears that you want.
❏ Choose if you want the normal scale selection for plotting.
This includes space for all display annotations such as marker values and stimulus
values. The entire analyzer display fits within the defined boundaries of P1 and P2
on the plotter, while maintaining the exact same aspect ratio as the display.
❏ Choose if you want the outer limits of the graticule to
correspond to the defined P1 and P2 scaling point on the plotter. (Intended for
plotting on preprinted rectangular or polar forms.)
Table 4-4 Default Line Types for Plot Elements
Plot Elements Channel 1 Line Type Numbers Channel 2 Line Type Numbers
Data Trace 7 7
Memory Trace 7 7
x1
x1
