Calibrating for Increased Measurement Accuracy
Frequency Response Error Corrections
Response Error Correction for Transmission Measurements
1. Press .
2. Select the type of measurement you want to make.
❏ If you want to make a transmission measurement in the forward direction (S
21
),
press:
or on ET models:
❏ For ES analyzers, if you want to make a transmission measurement in the reverse
direction (S
12
), press:
3. Set any other measurement parameters that you want for the device measurement:
power, number of points, IF bandwidth.
4. To select a response correction, press:
5. Make a "thru" connection between the points where you will connect your DUT.
NOTE Include any adapters or cables that you will have in the device measurement.
That is, connect the standard device where you will connect your DUT.

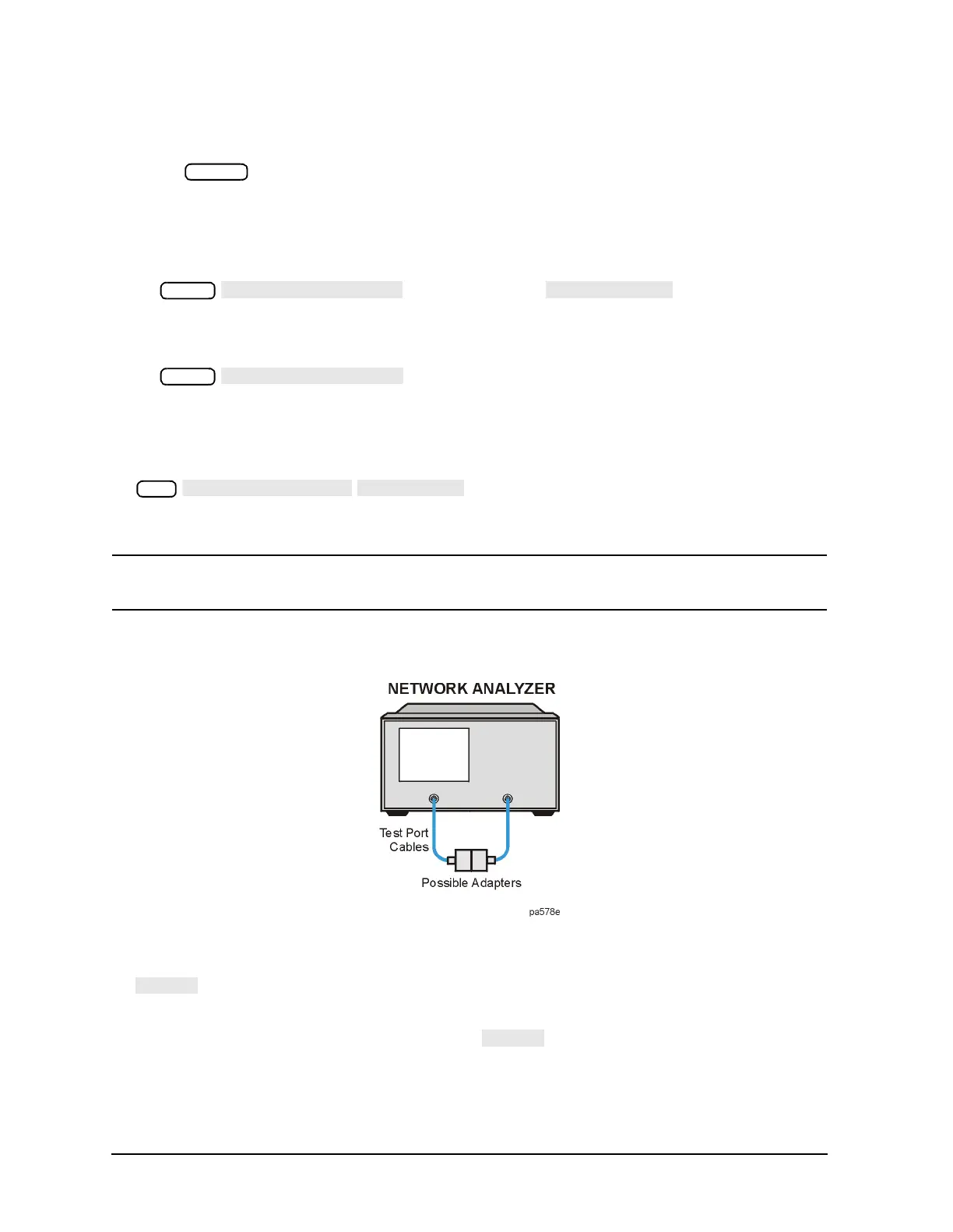

Figure 6-3 Standard Connections for Response Error Correction for
Transmission Measurements
6. To measure the standard, press:
The analyzer displays WAIT - MEASURING CAL STANDARD during the standard
measurement. The analyzer underlines the softkey after it measures the
calibration standard, and computes the error coefficients.
Preset
Meas
Meas
Cal
To Next Page
