Making Measurements
Using Markers

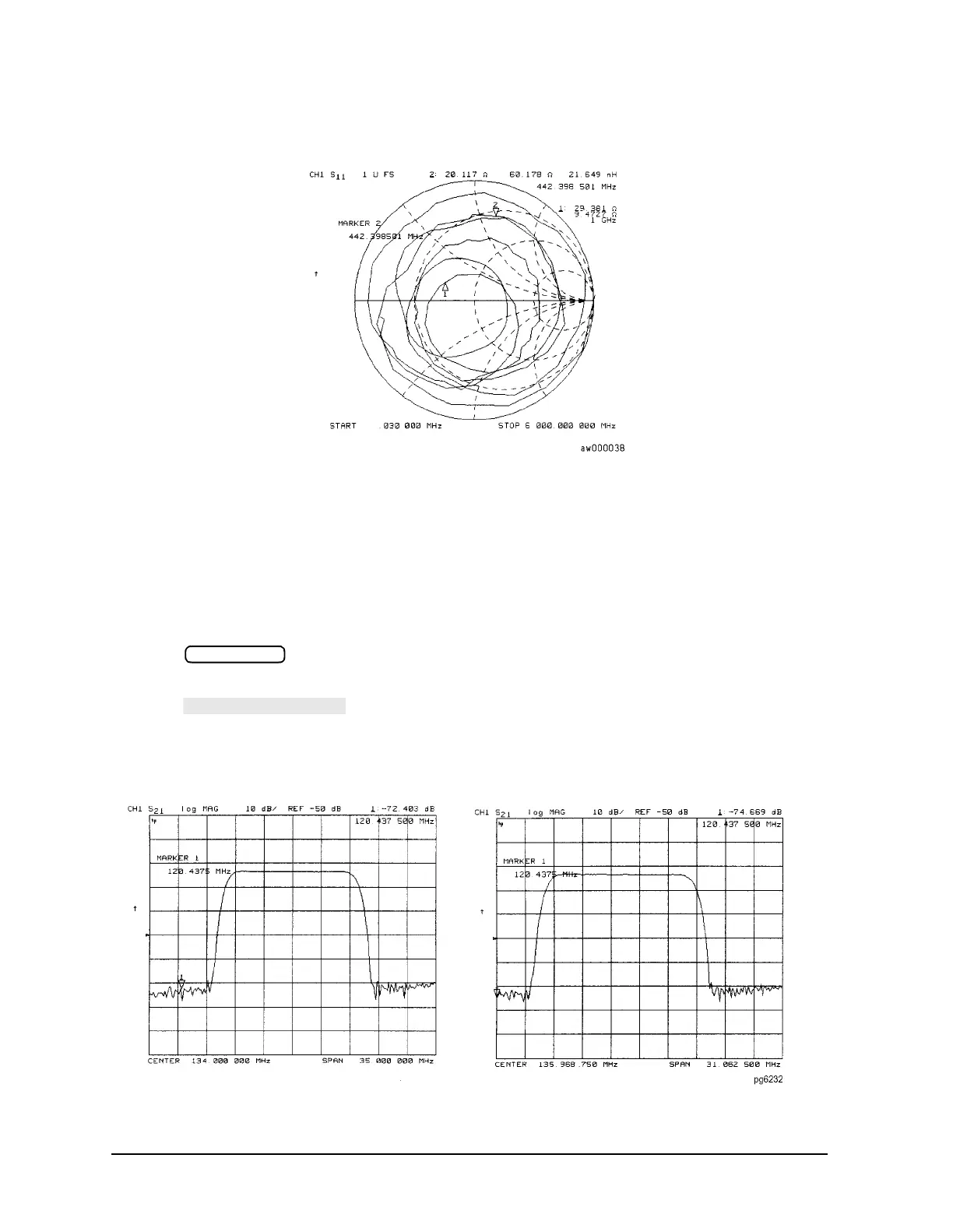

Figure 1-21 Example of Impedance Smith Chart Markers
To Set Measurement Parameters Using Markers
The analyzer allows you to set measurement parameters with the markers, without going
through the usual key sequence. You can change certain stimulus and response
parameters to make them equal to the current active marker value.
Setting the Start Frequency
1. Press and turn the front panel knob, or enter a value from the front panel
keypad to position the marker at the value that you want for the start frequency.
2. Press to change the start frequency value to the value of the active
marker.
Figure 1-22 Example of Setting the Start Frequency Using a Marker
Marker Fctn
To Next Page
