1-12
Making Measurements
Using Display Functions
Viewing Both Primary Measurement Channels
In some cases, you may want to view more than one measured parameter at a time.
Simultaneous gain and phase measurements, for example, are useful in evaluating
stability in negative feedback amplifiers. You can easily make such measurements using
the dual channel display.
1. To see channels 1 and 2 in the same grid, press:
, set to ON, and
to 1X.

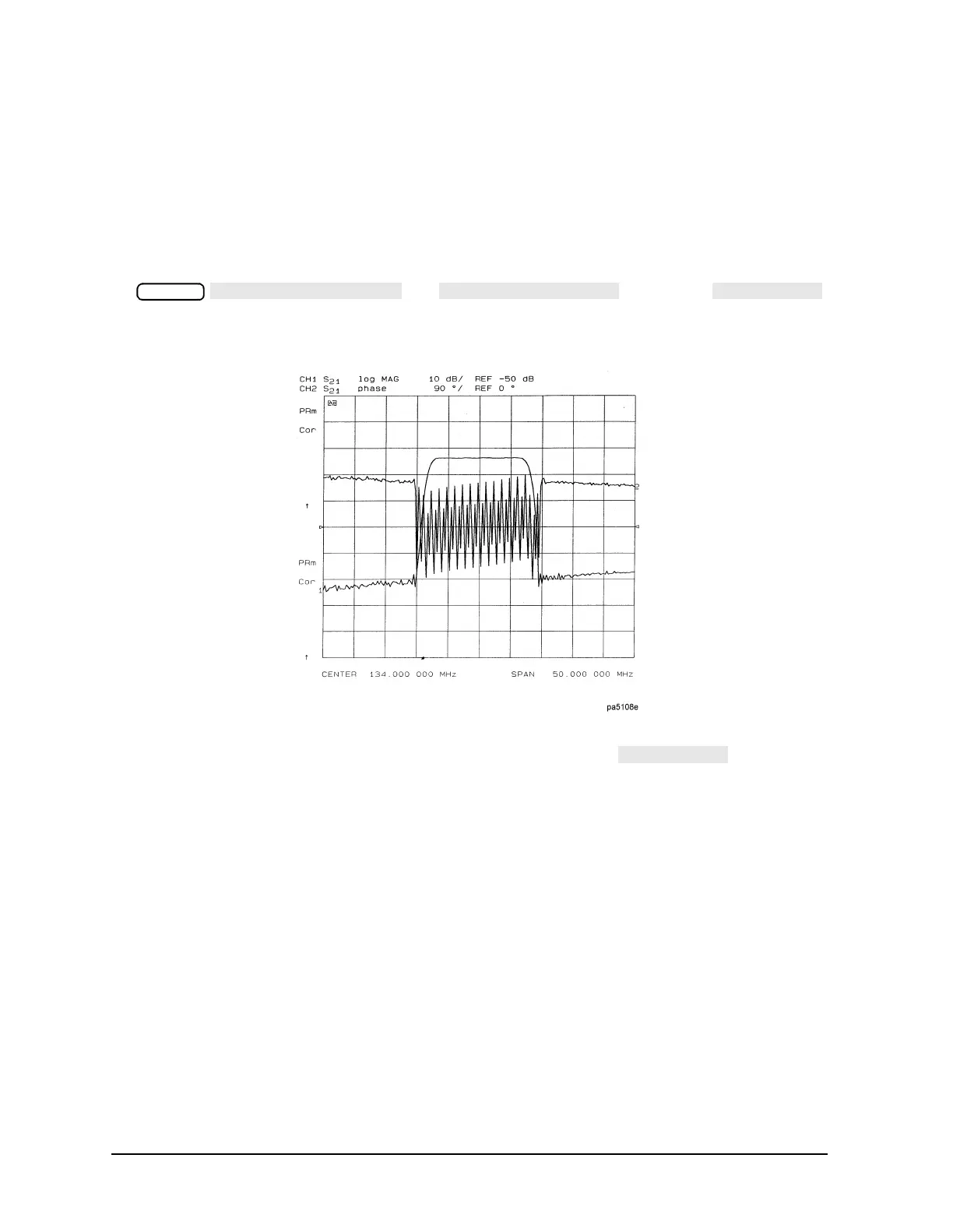

Figure 1-7 Example of Viewing Channel 1 and 2 Simultaneously
2. To view the measurements on separate graticules, press: Set to 2X. The
analyzer shows channel 1 on the upper half of the display and channel 2 on the lower
half of the display. The analyzer defaults to measuring S
11
on channel 1 and S
21
on
channel 2.
Display
