Making Measurements
Using Limit Lines to Test a Device

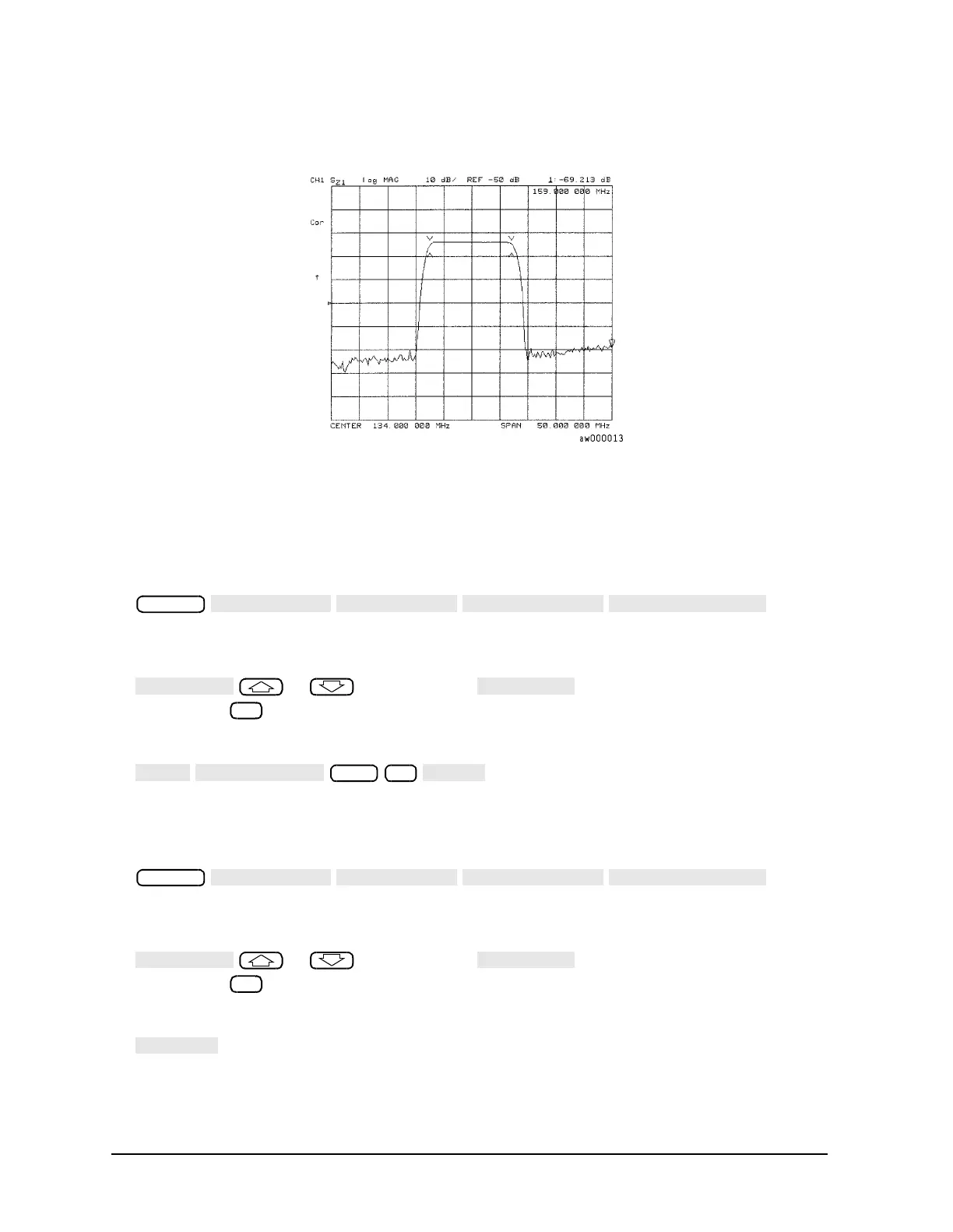

Figure 1-62 Example Single Points Limit Line
Editing Limit Segments
This example shows you how to edit the upper limit of a limit line.
1. To access the limits menu and activate the limit lines, press:
2. To move the pointer symbol (>) on the analyzer display to the segment you wish to
modify, press:
or repeatedly OR and enter the segment number
followed by .
3. To change the upper limit (for example, −20) of a limit line, press:
Deleting Limit Segments
1. To access the limits menu and activate the limit lines, press:
2. To move the pointer symbol (>) on the analyzer display to the segment you wish to
delete, press:
or repeatedly OR and enter the segment number
followed by .
3. To delete the segment that you have selected with the pointer symbol, press:
System
x1
−20 x1
System
x1
