1-16
Making Measurements
Using Display Functions

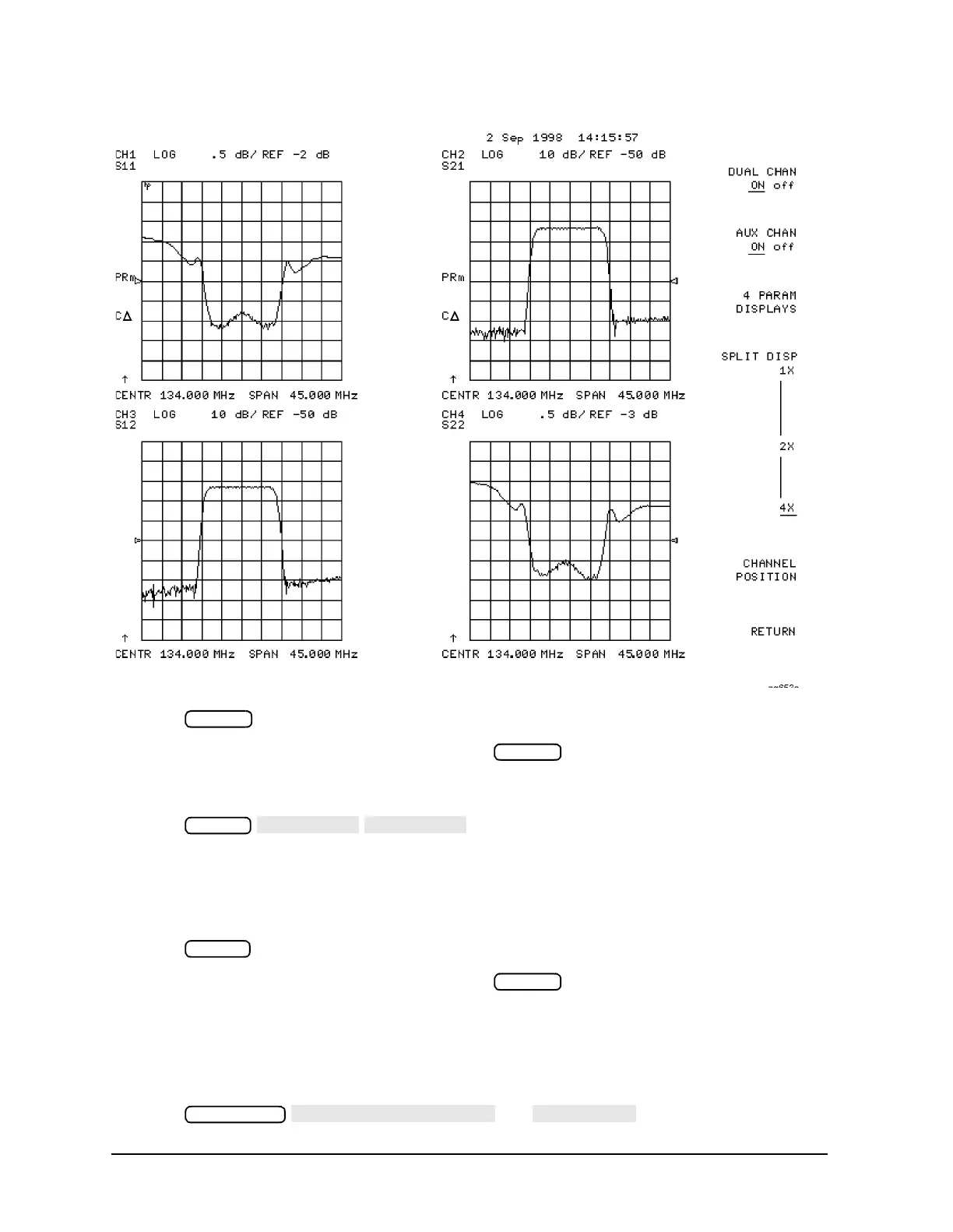

Figure 1-10 Four-Channel Display
5. Press .
Observe that the amber LED adjacent to the key is lit and the CH4 indicator
on the display has a box around it. This indicates that channel 4 is now active and can
be configured.
6. Press .
Markers 1 and 2 appear on all four channel traces. Rotating the front panel control
knob moves marker 2 on all four channel traces. Note that the active function, in this
case the marker frequency, is the same color and in the same grid as the active channel
(channel 4).
7. Press .
Observe that the amber LED adjacent to the key is lit. This indicates that
channel 3 is now active and can be configured.
8. Rotate the front panel control knob and notice that marker 2 still moves on all four
channel traces.
9. To independently control the channel markers:
Press , set to UNCOUPLED.
Rotate the front panel control knob. Marker 2 moves only on the channel 3 trace.
Chan 4
Chan 4
Marker
Chan 3
Chan 3
Marker Fctn
