1-37
Making Measurements
Using Markers

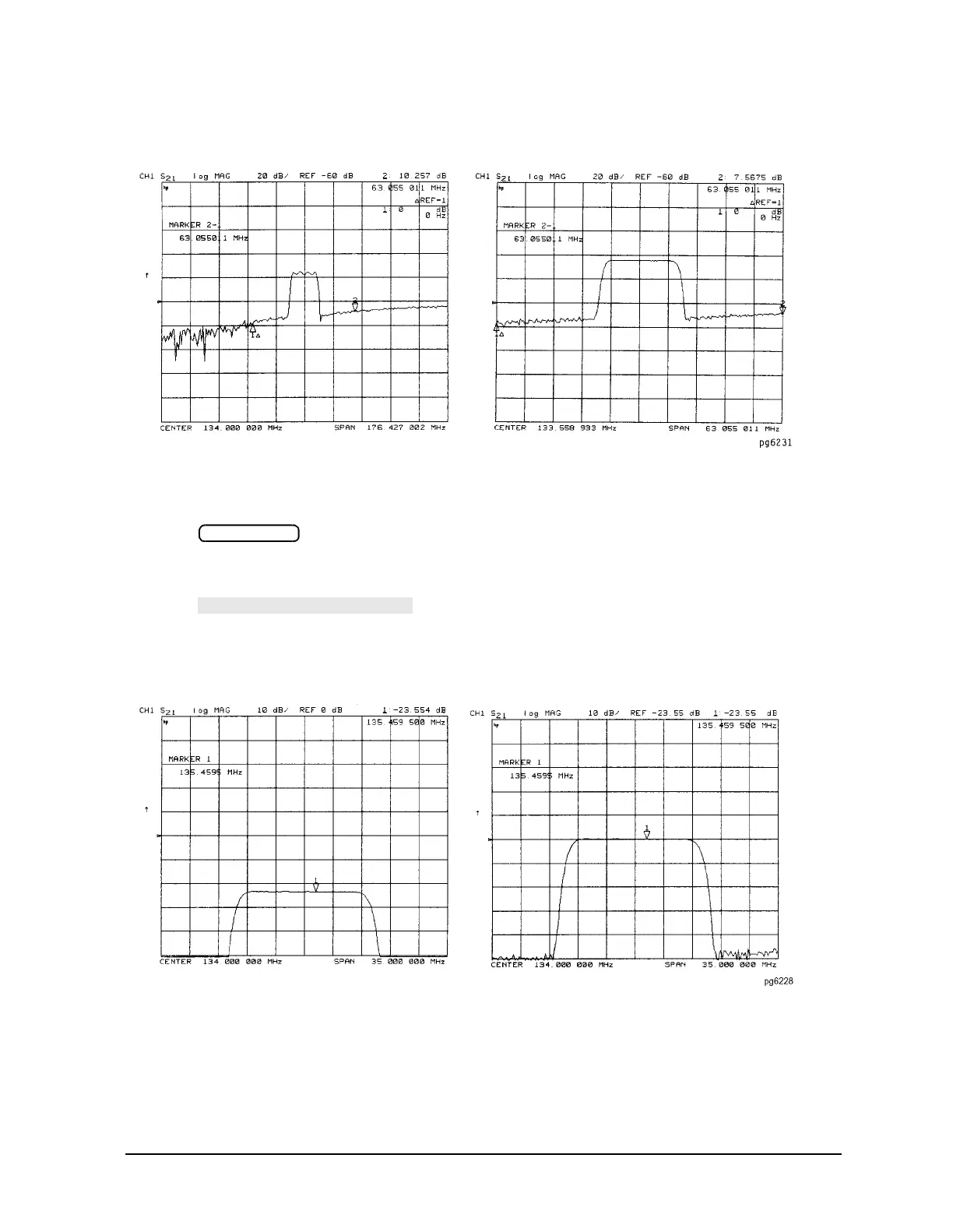

Figure 1-25 Example of Setting the Frequency Span Using Marker
Setting the Display Reference Value
1. Press and turn the front panel knob, or enter a value from the front panel
keypad to position the marker at the value that you want for the analyzer display
reference value.
2. Press to change the reference value to the value of the
active marker.
Figure 1-26 Example of Setting the Reference Value Using a Marker
Setting the Electrical Delay
This feature adds phase delay to a variation in phase versus frequency, therefore it is only
applicable for ratioed inputs.
Marker Fctn
→
