Agilent Technologies 8753ET Manual Supplement

4-23
Supplement for the User’s Guide (Firmware Version 7.68)
Calibrating Using Electronic Calibration (ECal)
5. After you connect the manual thru, press to complete the manual
thru portion of the ECal.
6. If you are calibrating using two ECal modules, a prompt is displayed directing you to
remove the first module and connect the second module. Follow this prompt as shown in
Figure 4-9 (or Figure 4-10).

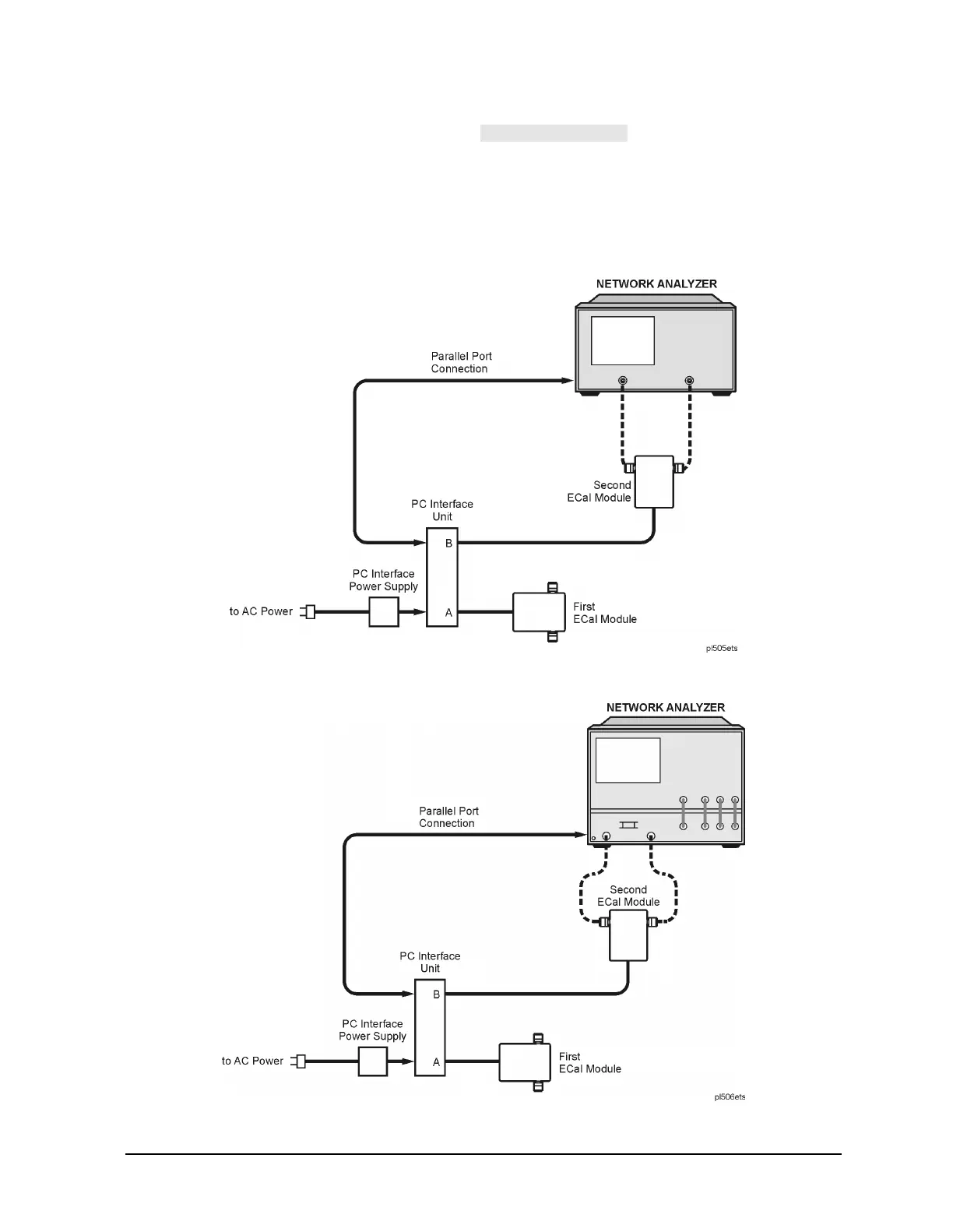

Figure 4-9 8753ET/ES Connect the Second ECal Module
Figure 4-10 8753ES Option 011 Connect the Second ECal Module
CONTINUE ECal
