4-32
Supplement for the User’s Guide (Firmware Version 7.68)
Adapter Removal Using ECal (ES Analyzers Only)
2. Connect the ECal module between adapter A1 and adapter A3.
3. Press .
4. Press to perform the first 2-port error correction using the ECal
module.
NOTE When using adapter removal calibration, you must save calibration sets to
the internal disk, not to internal memory.
5. Save the results to disk. Name the file "PORT1."
6. Remove the ECal module and adapter A3 from the setup. Connect adapter A3 to
adapter A1 on port 1 as shown in Figure 4-18 (or Figure 4-19).

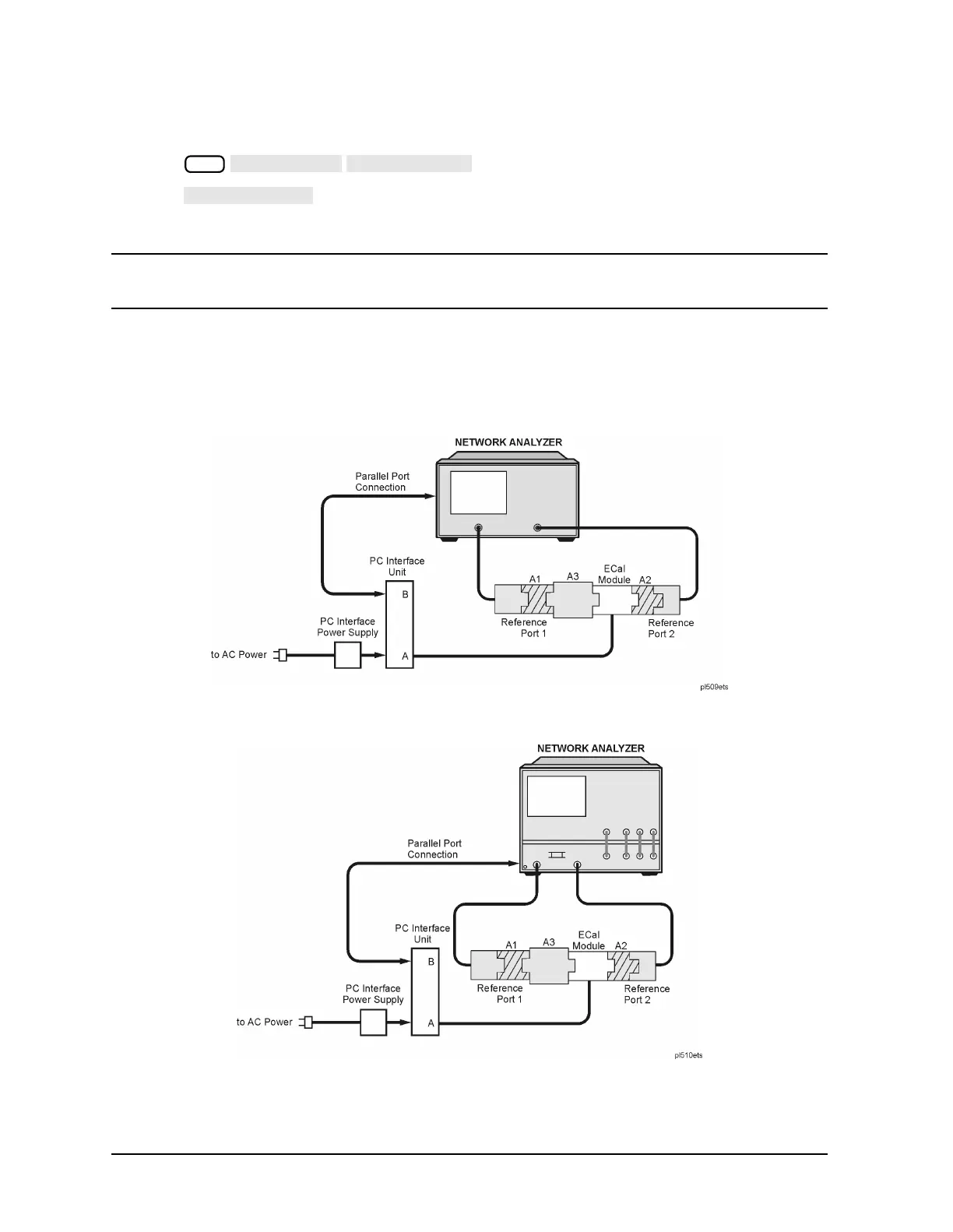

Figure 4-18 8753ET/ES Two-Port Cal Set 2
Figure 4-19 8753ES Option 011 Two-Port Cal Set 2
7. Connect the ECal module between adapter A3 and adapter A2.
Cal
ECal MENU
MODULE A b
FULL 2-PORT
