6 GC System Power Requirements
USA fast heating oven, 240 V
34 Site Preparation Guide
USA fast heating oven, 240 V
The 240 V fast heating oven requires 240 V/15 A power. Do not use 208 V power. Lower
voltage causes slow oven ramps and prevents proper temperature control. The power cord
supplied with your GC is rated for 250 V/15 A, and is a two-pole, three-wire cord with grounding
(type L6-15R/L6-15P).
Canadian installation
When installing a GC in Canada, make sure your GC power supply circuit meets the following
additional requirements:
• The circuit breaker for the branch circuit, which is dedicated to the instrument, is rated for
continuous operation.
• The service box branch circuit is marked as a “Dedicated Circuit.”
Common instrument power cord plugs
Table 11 shows common Agilent power cord plugs.

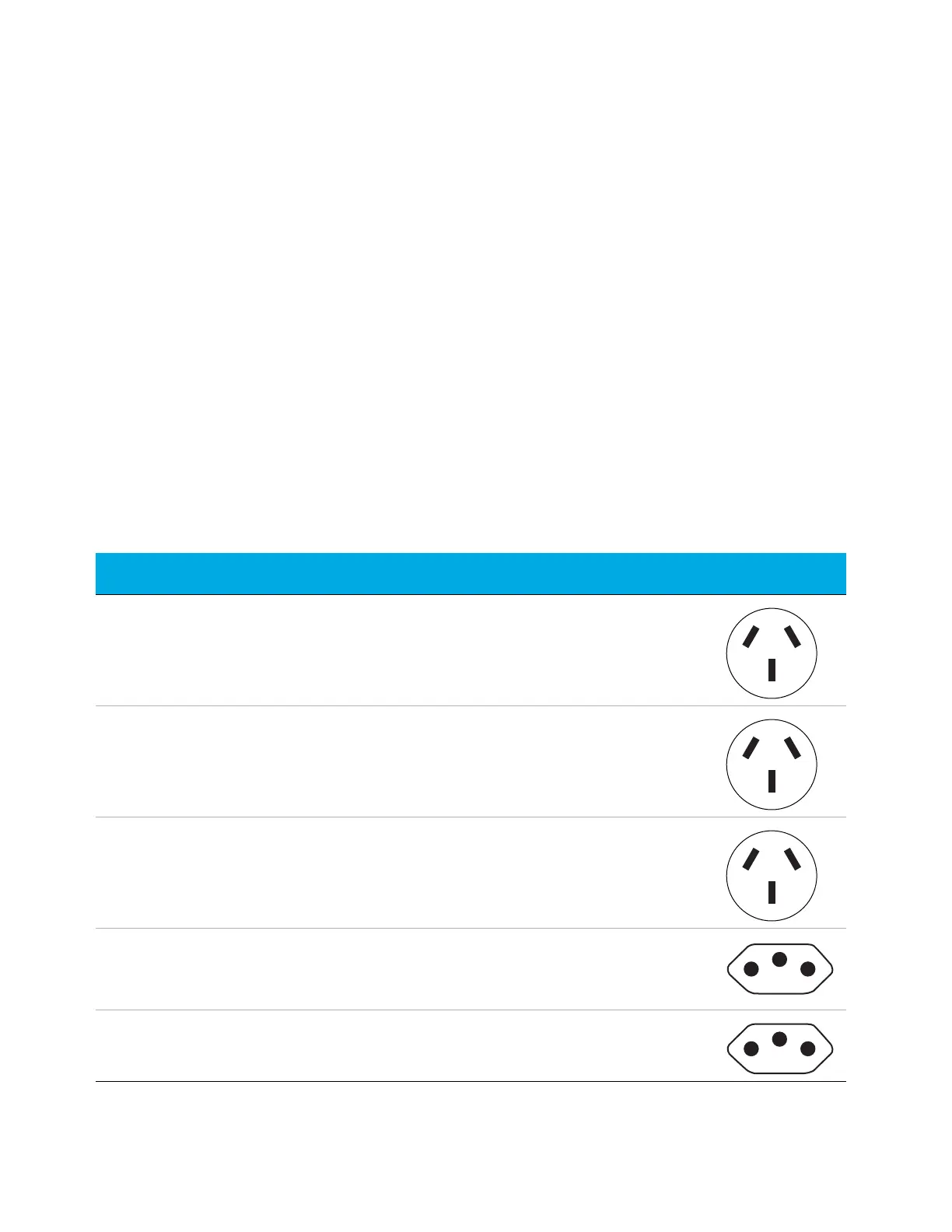

Table 11 Power cord terminations
Part number
Country
Voltage
Amps
Cable
length (m)
GC connector
type
Termination type
Plug
8121-0675 Argentina 240 16 4.5 C19 AS 3112
8120-1369 Australia,
New Zealand
240 10 2.5 C13 AS 3112
8120-8619 Australia 240 16 2.5 C19 AS 3112
8121-1787 Brazil 240 16 2.5 C19 IEC 60906-1
8121-1809 Brazil 240 10 2.5 C13 IEC 60906-1
