Agilent MOI for DisplayPort Cable & Connector Compliance Tests
18
A: Source Side, B: Sink Side
2. Connect Display Port cable to the test fixture.
3. Press Channel Next key to select Channel 1.
4. Press Channel Max key to enlarge Channel 1.
5. Click Stop Single for Time Domain measurement.
5.5.1.3. Data Analysis
Read Pass/Fail signs on Trace 1 and Trace 5. (item 1 in Figure 5-3)

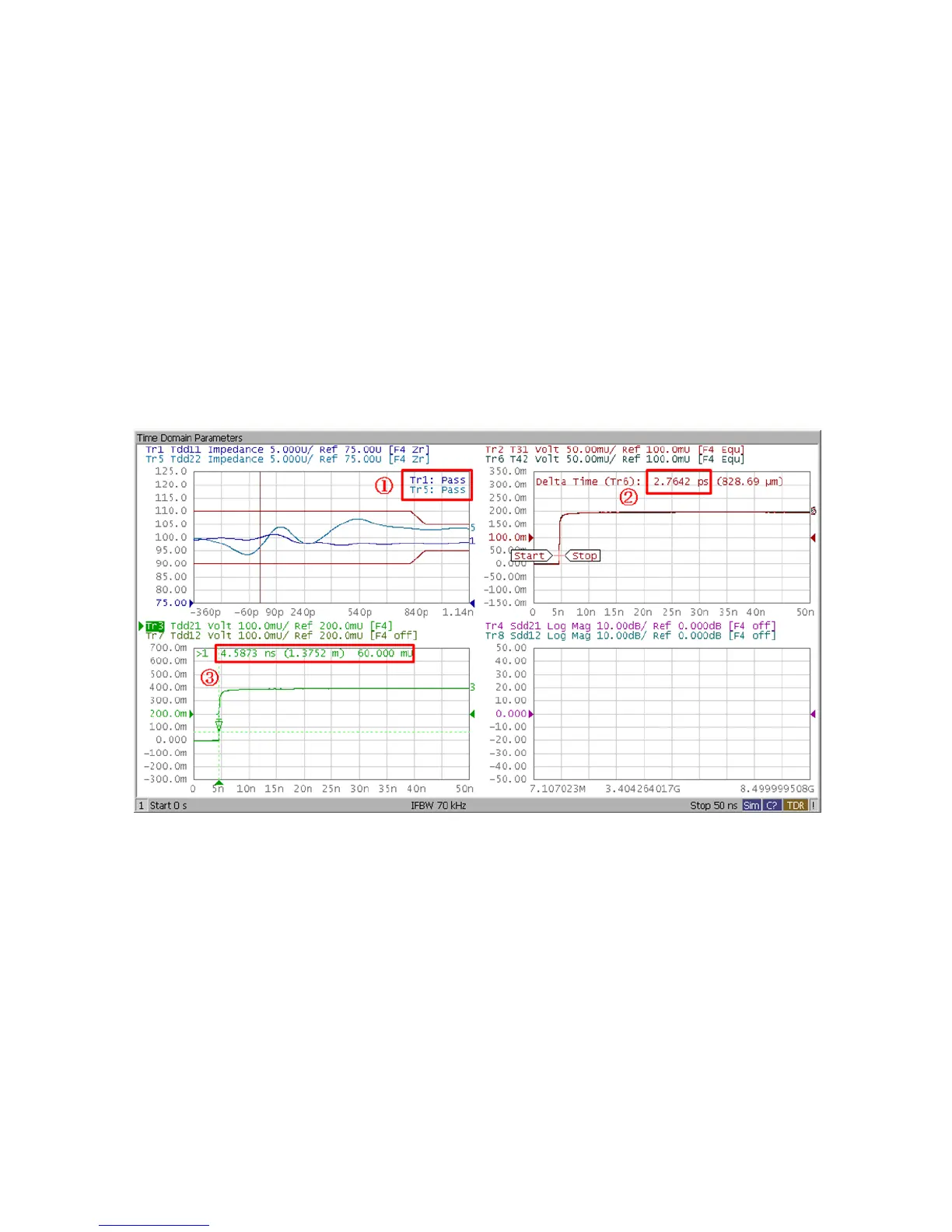

Figure 5-3: Time Domain Measurement Example
5.5.2. Intra-Pair Skew
5.5.2.1. Measurement
Refer to 5.5.1.2.
5.5.2.2. Data Analysis
Read the delta time between Trace 2 and Trace 6. (item 2 in Figure 5-3).
